AS4087 F316L BIind FF Stainless Steel Flanges

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	AS4087 F316L

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10-90 Days
Payment Terms:	L/C, T/T
Supply Ability:	According To Client's Request

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Connection:	Welding, Threaded, Slip On, Socket Weld, Lap Joint, Etc.	Material:	Stainless Steel F316L
Port Of Loading:	Ningbo, Shanghai, Tianjin, Etc.	Shape:	Blind
Standard:	ANSI, DIN, JIS, BS, Etc.	Types:	Blind Ring Flange
Highlight:	BIind FF Stainless Steel Flanges , AS4087 Stainless Steel Flanges , AS4087 F316L Stainless Steel Flanges

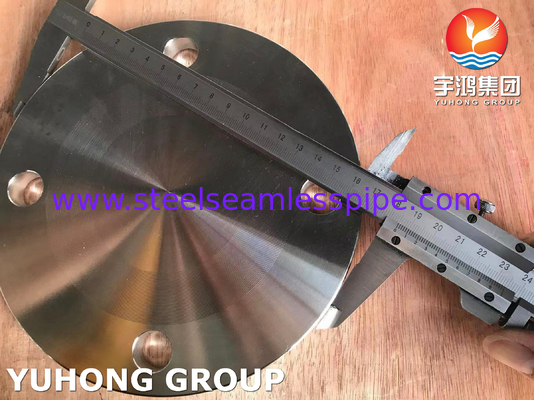

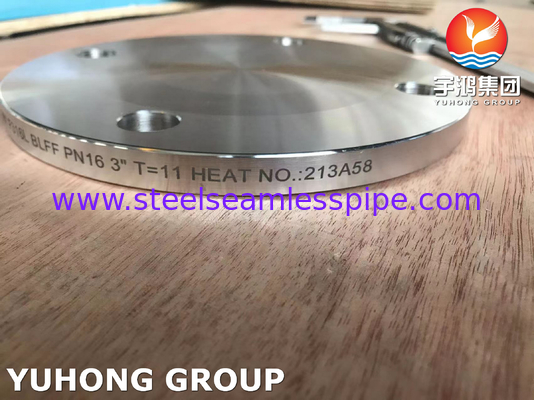

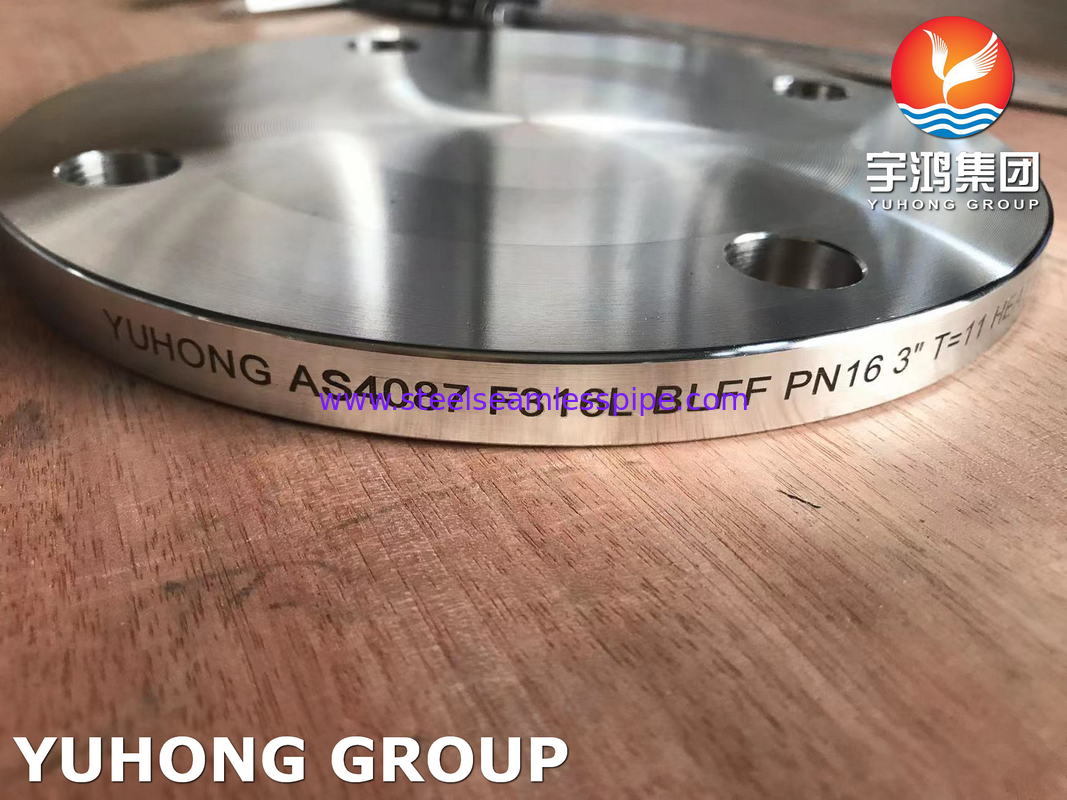

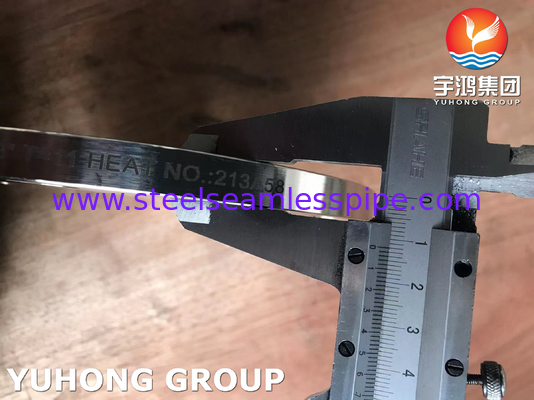

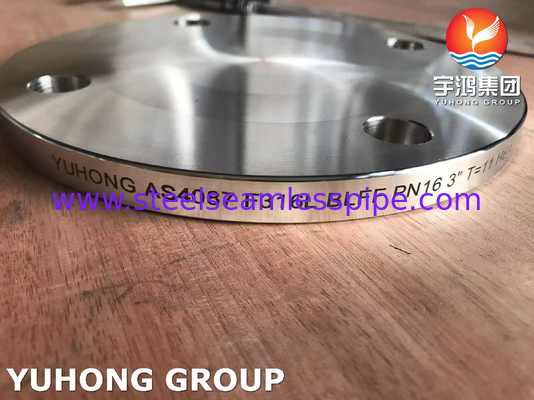

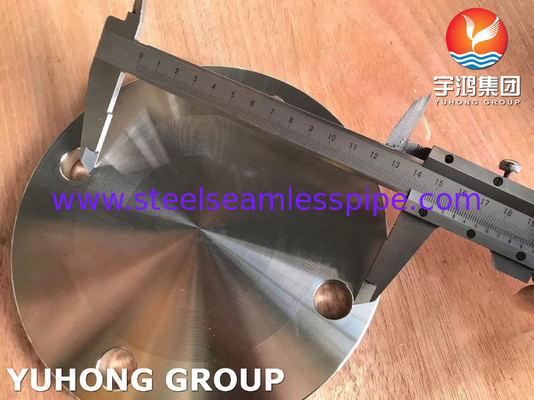

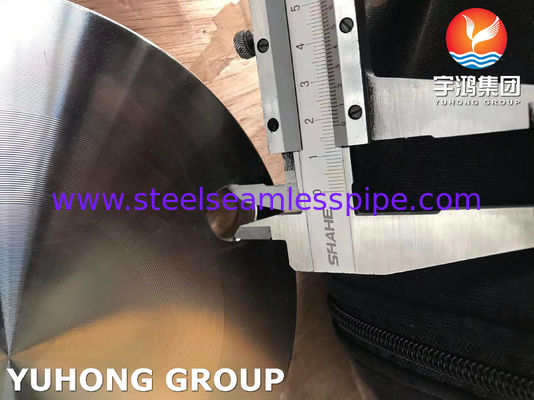

AS4087 F316L BIind FF Stainless Steel Flanges

AS4087 F316L Blind FF Stainless Steel Flanges are flanges made from stainless steel grade 316L, which is a low-carbon version of 316 stainless steel. These flanges are designed to be blind or blanked off, meaning they have no opening or bore. They are used to seal the end of a pipe or vessel, preventing the flow of fluid or gas.

AS4087 is an Australian standard for flanges, and FF stands for flat face, indicating that the flange face is flat and does not have any raised features or grooves. This type of flange is commonly used in applications where a leak-tight seal is required, such as in chemical processing, oil and gas, and food and beverage industries.

The F316L stainless steel material offers excellent corrosion resistance, making it suitable for use in corrosive environments. It also has good strength and toughness properties, making it suitable for high-pressure and high-temperature applications.

AS4087 F316L Blind FF Stainless Steel Flanges are a reliable and durable choice for sealing off pipes or vessels in various industries.

316L Stainless Steel Flanges Chemical Chart

Chemical Composition Of SS 316L Flanges
Stainless Steel	A182 F316L
Ni	10 – 14
Fe	Balance
Cr	16 – 18
P	0.045 max
S	0.030 max
N
Ti
Mo	2 – 3
C	0.10 max
Si	0.75 max
Mn	2 max

Mechanical Chart Of SS 316l Pipe Flanges

SS 316L Flanges Mechanical Properties
Gr.	Tensile Strength	Melting Point	Yield Strength (0.2%Offset)	Density	Elongation
ASTM A182 316L	Psi – 75000 , MPa – 515	1399 °C (2550 °F)	Psi – 30000 , MPa – 205	8.0 g/cm3	35 %

SS 316l Flanges Physical Properties

Physical Properties Of SS 316L Flanges
Density	8.0 g/cm3
Melting Point	1400 °C (2550 °F)
Tensile Strength	Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000 , MPa – 205
Elongation	35 %
