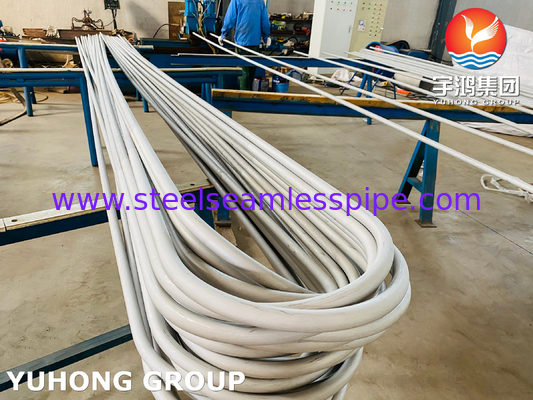

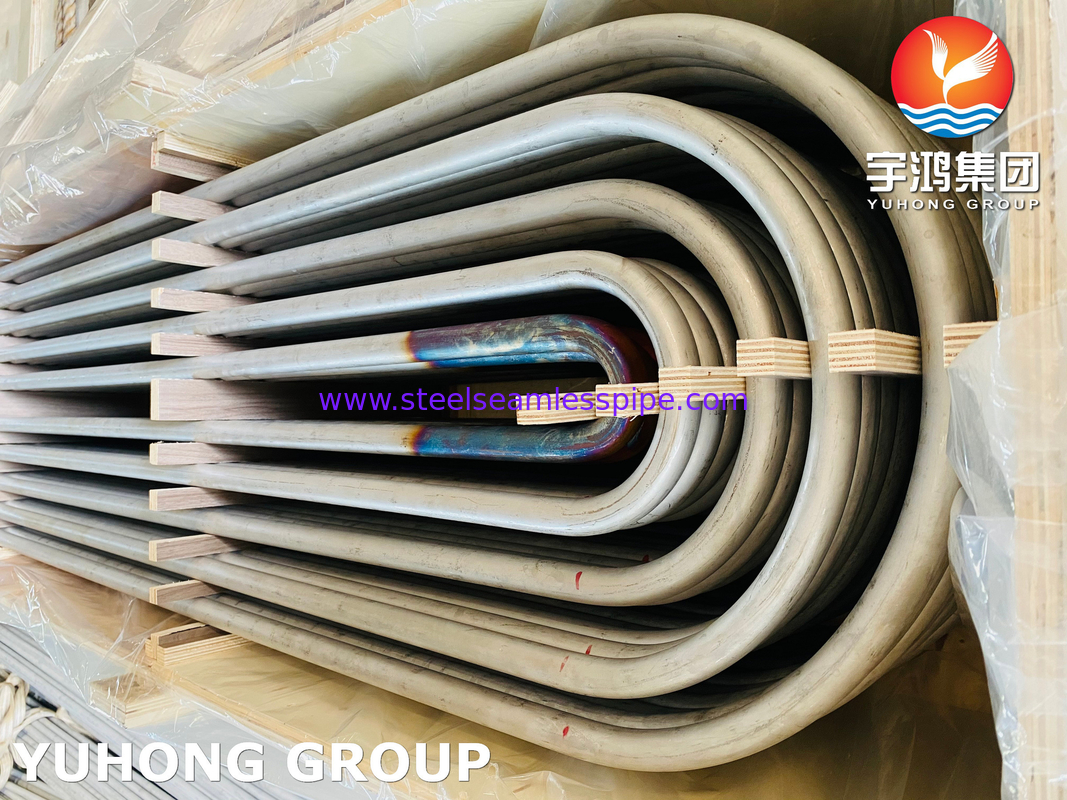

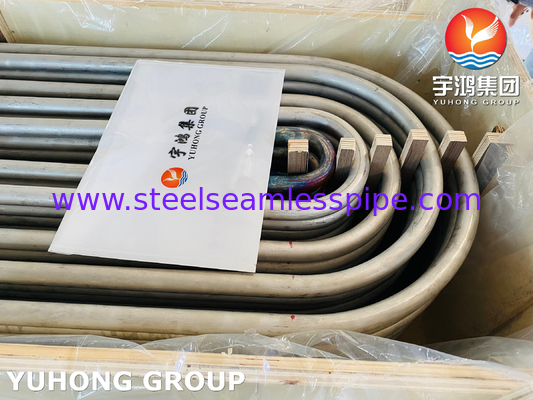

ASME SA213 TP316L, 1.4404 Seamless Stainless Steel U Bend Tube For Heat Exchanger
ASME SA213 TP316L Seamless Stainless Steel U bend tubes are specifically designed for use in heat exchangers and boilers. Made from high-quality stainless steel, these tubes offer excellent resistance to corrosion and high temperatures, making them ideal for use in a wide range of applications. The U bend design of these tubes allows for efficient heat transfer, making them an excellent choice for applications where space is limited. They are available in a range of sizes and thicknesses to meet the needs of different projects. YUHONG GROUP is professional in heat exchanger U Bend Tubes. The materials can be stainless steel, carbon steel, alloy steel, duplex steel, etc.
Key Features of ASME SA213 TP316L Seamless Stainless Steel U bend tubes:
1. High Corrosion Resistance: ASME SA213 TP316L seamless stainless steel U bend tubes are made from high-quality stainless steel material that offers excellent resistance to corrosion, making them suitable for use in a wide range of applications.
2. High Temperature Resistance: These U bend tubes can withstand high temperatures without losing their structural integrity, making them ideal for use in high-temperature applications such as petrochemical, chemical, and power generation industries.
3. Superior Mechanical Properties: The seamless manufacturing process ensures that these U bend tubes have excellent mechanical properties, including high tensile strength and toughness, making them durable and long-lasting.
4. Easy To Install: The seamless design of these U bend tubes allows for easy installation and maintenance, reducing downtime and overall costs.
5. Versatile Applications: ASME SA213 TP316L seamless stainless steel U bend tubes are suitable for a wide range of applications, including heat exchangers, boilers, condensers, and other industrial equipment.
Equivalent Material:
| STANDARD |
WERKSTOFF NR. |
JIS |
UNS |
AFNOR |
BS |
GOST |
EN |
| SS316L |
1.4404 / 1.4435 |
SUS 316L |
S31603 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
316LS11 / 316LS13 |
03Ch17N14M3 / 03Ch17N14M2 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition:
| C |
Si |
Mn |
Cr |
Ni |
Mo |
S |
P |
Fe |
| Max, % |
Max, % |
Max, % |
% |
% |
% |
Max, % |
Max, % |
% |
| 0.035 |
1.0 |
2 |
16 – 18 |
10 – 14 |
2 – 3 |
0.03 |
0.045 |
Bal. |
Mechanical Properties:
| Tensile Strength, [MPa] |
Yield strength, [MPa] |
Elongation in 2 in. or 50mm, %A, B |
Hardness
HRB
|
| 238/232 |
570/580 |
56/56 |
75/77 |
Applications Of Stainless Steel 316L U Bend Tubes:
1. Heat Exchangers: SA213 TP316L seamless stainless steel U bend tubes are commonly used in heat exchangers due to their high corrosion resistance and excellent heat transfer properties.
2. Boiler Tubes: These U bend tubes are widely used in boilers for generating steam or hot water. The high temperature and pressure resistance of TP316L stainless steel make it an ideal material for boiler tubes.
3. Condensers: SA213 TP316L U bend tubes are also commonly used in condensers to cool and condense steam into liquid form. The high corrosion resistance of stainless steel ensures long-term durability in condenser applications.
4. Power Plants: U bend tubes made from TP316L stainless steel are used in power plants for various applications, including heat exchangers, boilers, and condensers. The high reliability and performance of stainless steel make it a preferred material in power plant operations.
5. Petrochemical Industry: SA213 TP316L seamless stainless steel U bend tubes are also used in the petrochemical industry for processing and transporting various chemicals and gases. The high corrosion resistance of stainless steel ensures the e and efficient operation of petrochemical plants.
6. Automotive Industry: TP316L stainless steel U bend tubes are used in automotive applications for exhaust systems and heat exchangers. The high temperature and corrosion resistance of stainless steel make it an ideal material for automotive components that are exposed to harsh operating conditions.
7. Aerospace Industry: U bend tubes made from SA213 TP316L stainless steel are used in aerospace applications for fuel lines, hydraulic systems, and heat exchangers. The high strength-to-weight ratio of stainless steel makes it a preferred material in the aerospace industry for lightweight and high-performance components.
Overall, ASME SA213 TP316L seamless stainless steel U bend tubes find applications in a wide range of industries due to their excellent corrosion resistance, high temperature resistance, and superior heat transfer properties. These tubes are essential components in various industrial processes that require reliable and efficient heat exchange capabilities.
