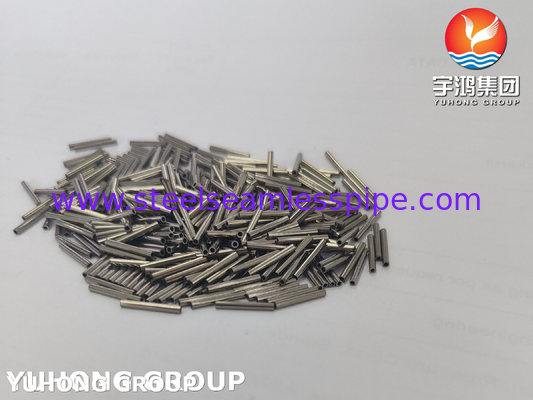

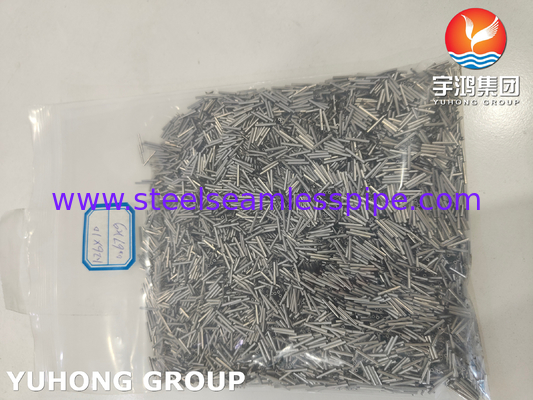

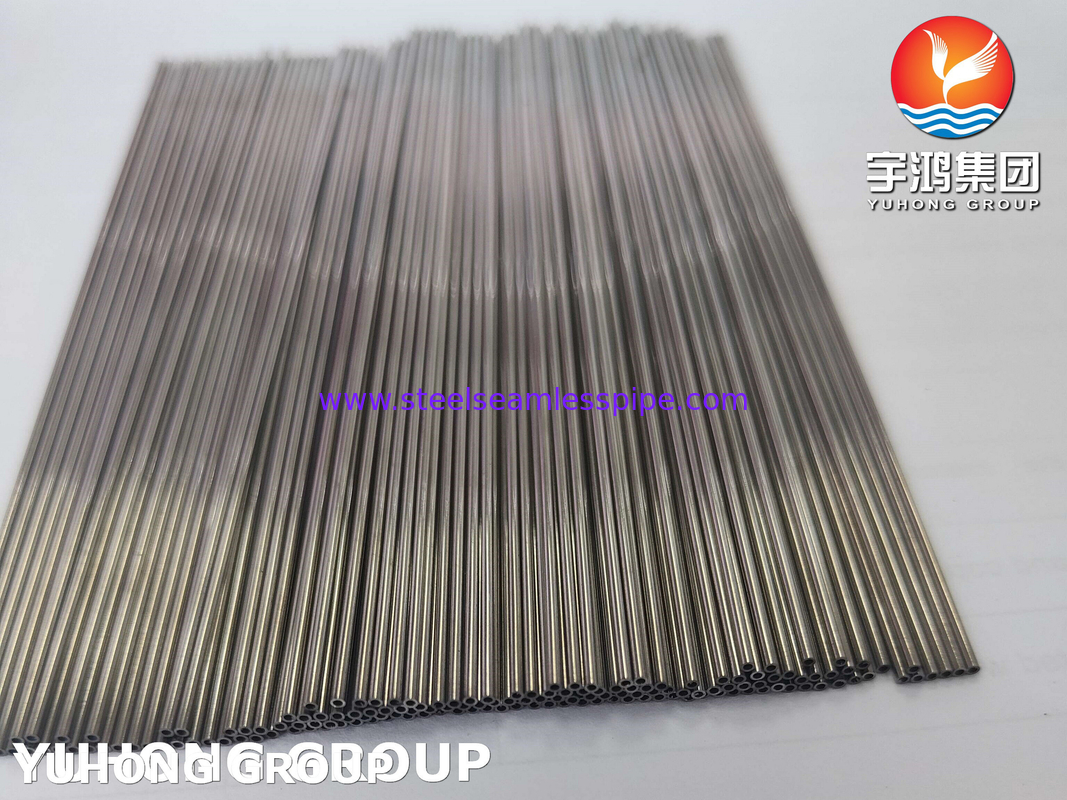

Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S

Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S

  • Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S
  • Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S
  • Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S
  • Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S
Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: Capillary Tube
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10-90 Days
Payment Terms: L/C, T/T
Supply Ability: According To Client's Request
Contact Now
Detailed Product Description
Standard: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A790 JIS G3459 Outer Diameter: 0.3 –12.0 Mm
Thickness: 0.08 – 0.2 Mm Grade: SS304 304L 316 316L 321 321H 309 310S
Usage: Medical Procedures Length: DEPEND ON CLIENT REQUEST
Package: PLYWOOD CASE,BUNDLE
Highlight:

316L Stainless Steel Capillary Tube

,

321H Stainless Steel Capillary Tube

,

304L Stainless Steel Capillary Tube

Stainless Steel Capillary Tube



Capillaries are special, precision-made, high-quality round metallurgical products obtained by cold drawing.

The wall thickness and diameter are very small and the dimensions are particularly narrow. Deviations in straightness, surface accuracy, product length and ends are much smaller. Capillaries are usually made of stainless steel, acid-resistant, heat-resistant and creep-resistant, special alloys, nickel, titanium and other non-ferrous metals.

They are used in the production of pressure equipment and systems, measuring technology equipment, special food processing equipment in the food and nitrogen industry, shipbuilding, components responsible for furnaces and boilers and hydrogen exhaust systems.

The outer diameter of the capillary should be closed in the range of 0.30 - 20.00 mm, while the wall thickness ranges from 0.10 - 6.00 mm. Capillaries are widely used in engineering, pharmacology, aerospace, petrochemical and chemical industries, as well as in the energy, food, cryogenic and mechanical industries. We supply capillaries in coils or straight sections.



Material Of Capillary Tube



Stainless steel capillary tubes are made from high-quality stainless steel that contains chromium and nickel. The most commonly used grades of stainless steel for capillary tubes are 304 and 316. These grades are known for their excellent corrosion resistance, high strength, and durability. They also have good heat resistance and can withstand high temperatures without losing their structural integrity. The material of stainless steel capillary tubes is carefully selected to ensure that they meet the required specifications for various applications, including medical devices, analytical instruments, and industrial equipment.




Chemical Composition



Chemical Composition 201 202 301 304 316 430
C ≤0.08 ≤0.06 ≤0.06 ≤0.06 ≤0.08 ≤0.12
S ≤0.02 ≤0.02 ≤0.03 ≤0.03 ≤0.03 ≤0.03
P ≤0.060 ≤0.060 ≤0.045 ≤0.035 ≤0.045 ≤0.04
Mn 8.5-10.5 8.5-10.5 ≤2.00 ≤2.00 ≤2.00 ≤1.00
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Cr 14-15 14-16 16-18 17-20 16-18 16-18
Ni 0.8-1.2 4-6 4-7 8-12 12-16 ≤0.05





Mechanical Property






Mechanical
Property


Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90







Some common applications of capillary tubes:



1. Medical Devices

2. Thermometers

3. Capillary Electrophoresis

4. Oil and Gas Industry*

5. Microfluidics

6. Printing and Inkjet Technology

7. Hygroscopic Moisture Measurement

8. Heat Pipes

9. Scientific Research



Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S 0Stainless Steel Capillary Tube For Laboratory Material Of SS304 304L 316 316L 321 321H 309 310S 1
