ASME SA213 TP316L Seamless Stainless Steel Tube BWG 20 0.89mm For Drycooler

Product Details:

Place of Origin:	China, USA, Korea, UE
Brand Name:	YUHONG SPECIAL STEEL
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 TP316L

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10days->
Payment Terms:	T/T, L/C
Supply Ability:	1500 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM A213, ASME SA213	Material:	TP316L
NDT:	Eddy Current Test, Hydrostatic Test, UT, IGC, Grain Size Test , ...	Type:	Mill Finished, Polished, Bright Annealed
Shape:	Round	Certification:	EN 10204/3.1
Highlight:	ASME SA213 Seamless Stainless Steel Tube , BWG 20 Seamless Stainless Steel Tube , 0.89mm Seamless Stainless Steel Tube

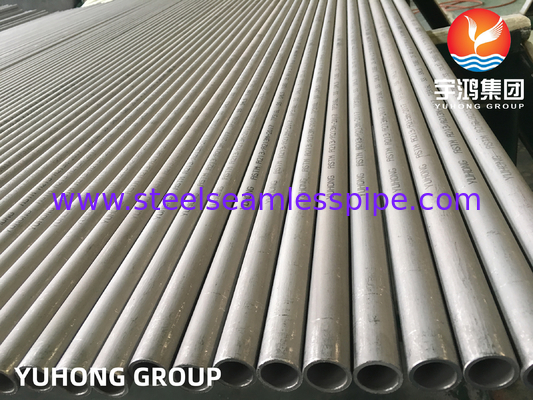

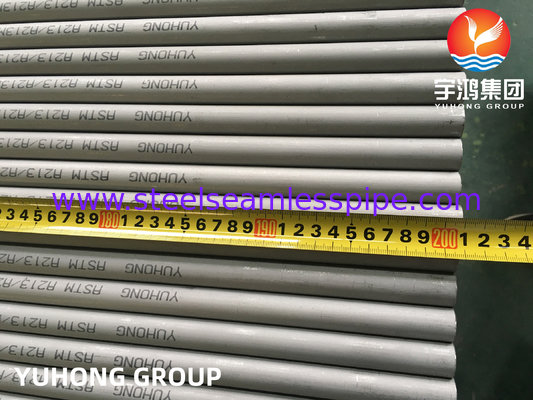

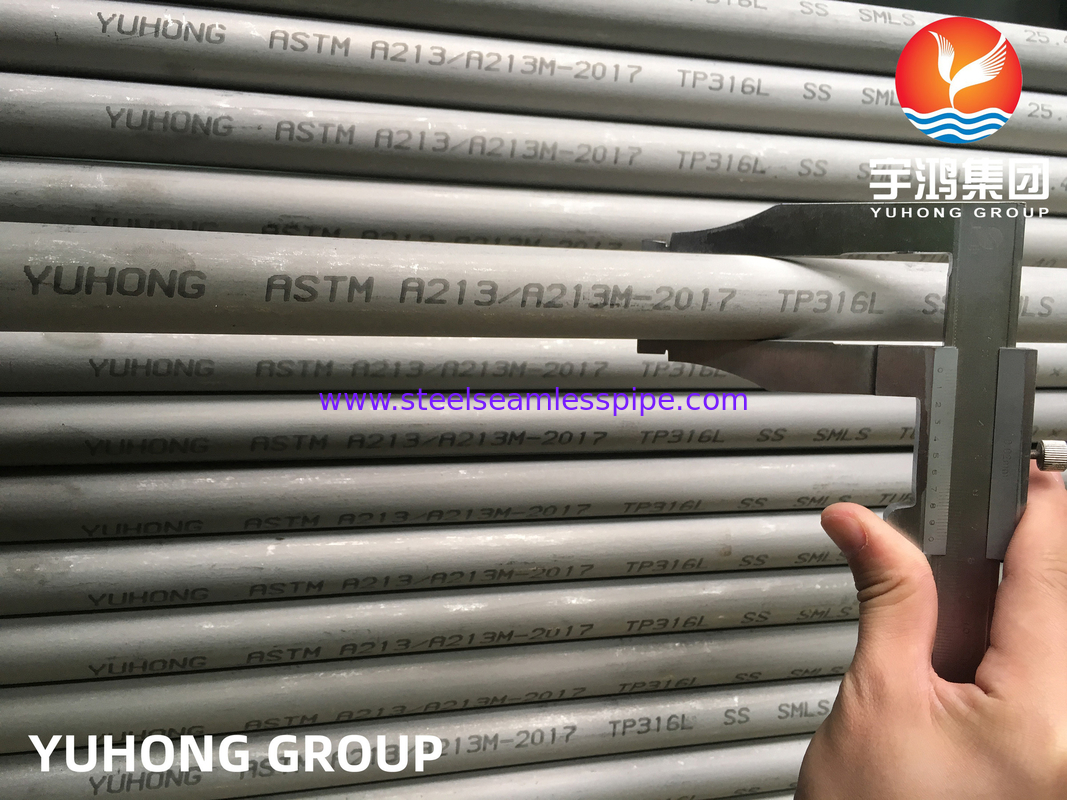

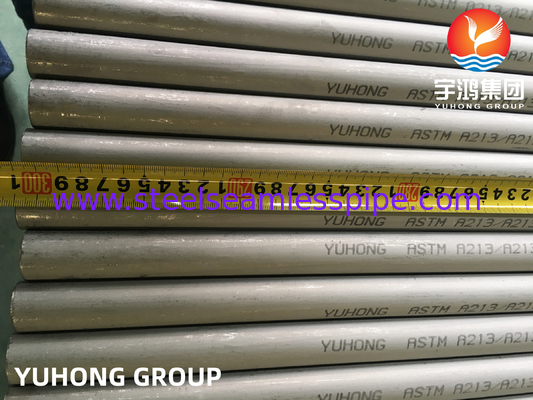

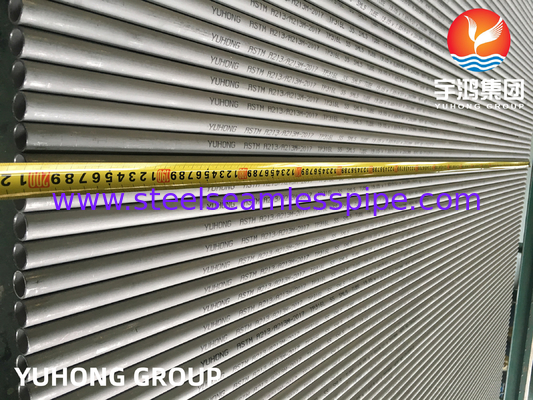

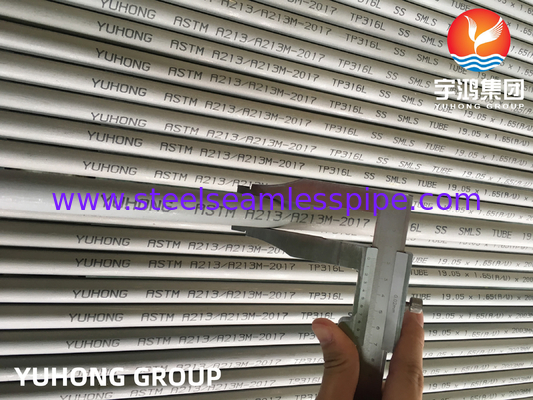

ASME SA213 TP316L Seamless Stainless Steel Tube BWG 20 0.89mm for Drycooler

YUHONG SPECIAL STEEL is a large supplier and manufacturer of a wide range of stainless steel tubes. SA 213 standard covers heat exchanger tubes made of ferritic and austenitic steels. sa213 316L is a lower carbon version of the 316 material. As a result, SA 213 Tp 316L has higher toughness but lower strength than 316 grade pipes. SA 213 Tp 316L tubes can be produced by resistance welding, electrofusion welding or cold drawing.

Material Grade

American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Nickel Alloy:

UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

GOST

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

STANDARD TUBE SIZE

Tube	Outside diameter		Wall thickness
Size	inch	mm	BWG	inch	mm


1/4 "	0.250	6.350	22	0.028	0.711
			24	0.022	0.559

3/8 "	0.375	9.525	18	0.049	1.245
			20	0.035	0.889
			22	0.028	0.711

1/2 "	0.500	12.700	18	0.049	1.245
			20	0.035	0.889

5/8 "	0.625	15.875	16	0.065	1.651
			18	0.049	1.245
			20	0.035	0.889

3/4 "	0.750	19.050	12	0.109	2.769
			14	0.083	2.108
			16	0.065	1.651
			18	0.049	1.245
			20	0.035	0.889

7/8 "	0.875	22.225	14	0.083	2.108
			16	0.065	1.651
			18	0.049	1.245
			20	0.035	0.889

1 "	1	25.400	12	0.109	2.769
			14	0.083	2.108
			16	0.065	1.651
			18	0.049	1.245

1 1/4 "	1.250	31.75	10	0.134	3.404
			12	0.109	2.769
			14	0.083	2.108
			16	0.065	1.651

2 "	2.000	50.800	12	0.109	2.769
			14	0.083	2.108

Quality tests

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections
