Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	EN 10253-2 1.4541

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	PLY WOOD CASE,PALLET
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	500 pcs per month

Standard:	EN 10253-2	Material:	1.4541
Name:	Europe Standard Elbow	Shape:	Elbow
Technics:	Butt Weld	Wall Thickness:	Schedule 10s - Schedule XXS Available
Highlight:	1.4541 Large Diameter Butt Weld Fitting , 1.4541 stainless steel 90 degree elbow , buttweld stainless steel 90 degree elbow

EN 10253 Elbow Specification	EN 10253/1 EN 10253/2 Type A – reduced load factor EN 10253/2 Type B – full load factor
EN 10253 Elbow Grades	EN / DIN P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H 16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44) X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10 P215NL (TTST35N/V), 12Ni14 (10Ni14) P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2 L290NB (STE 290.7), L360NB (STE 360.7) 1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878,, 1.4876, 1.4952, 1.4835, 1.4877, 1.4910 ASTM / ASME WPA, WPB, WPC, WP1, WP5, WP9, WP11, WP12, WP22, WP32/27, WP91, WP92, WP304, WP304 H, WP304L, WP310, WP316, WP316L, WP316TI, WP321, WP347, WP347H WPL3, WPL6, X42, X52, WPHY52, WPHY60 S30815, S31000, S31050, S31500, S31726, S31803, S32760, N08904 Alloy 800H, DMV310N
en 10253-2 elbow 3d Shapes	Hemispherical Cap, Oval Cap, Square Cap, Rectangular Cap, U shape Cap, I shape Cap
en 10253-2 elbow 2d Outer Diameter & Wall Thickness Size	1/2" NB To 60" NB (Nominal Bore Size) Wall Thickness: from 1 mm to 100 mm, depending on the outside diameter
en 10253-2 type a elbow Make Process	Rolled, Forged, Machining
en 10253-2 type b elbow Types	EN 10253 Elbow
en 10253-1 elbow Delivery Conditions	As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined
en 10253-2 elbow Dimension Standard	Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.28, ANSI B16.36, and ANSI B16.48
en 10253-3 elbow Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
en 10253-4 elbow Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
elbow en 10253-4 type a Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector

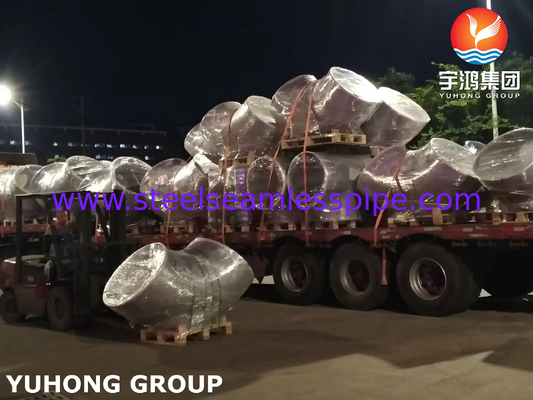

elbow en 10253-4 type b Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
EN 10253 Elbow Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

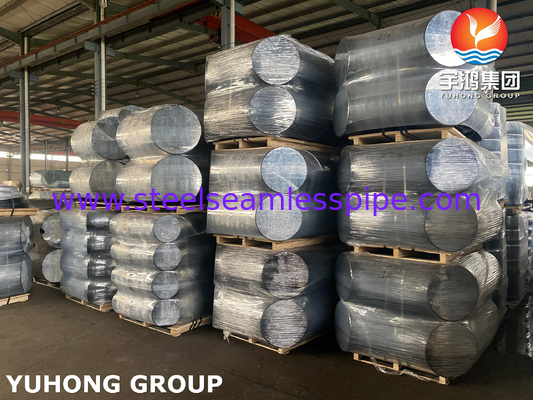

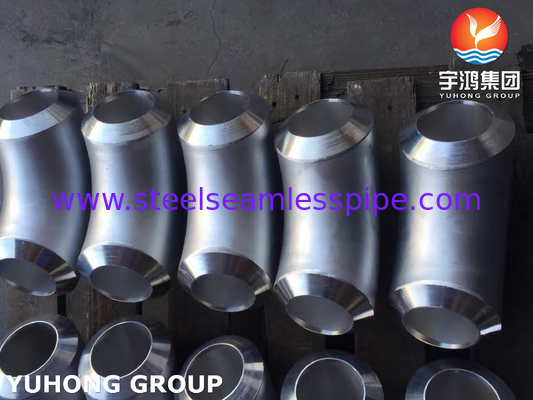

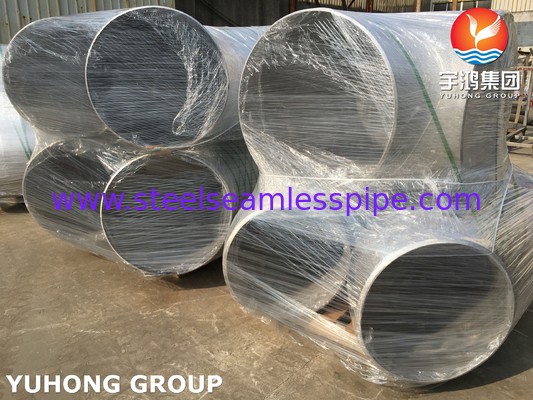

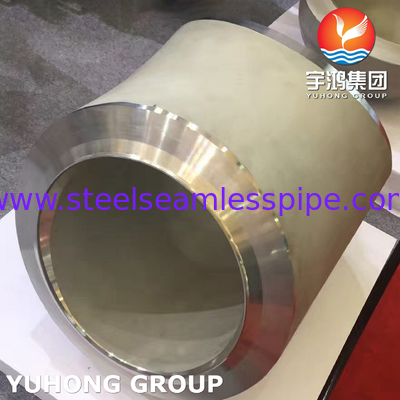

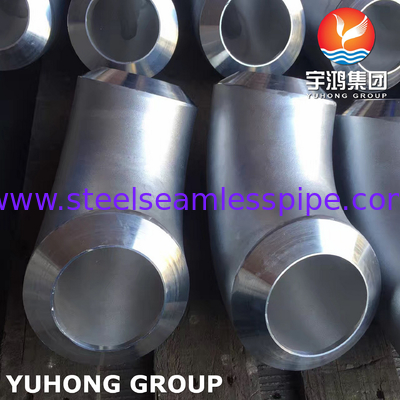

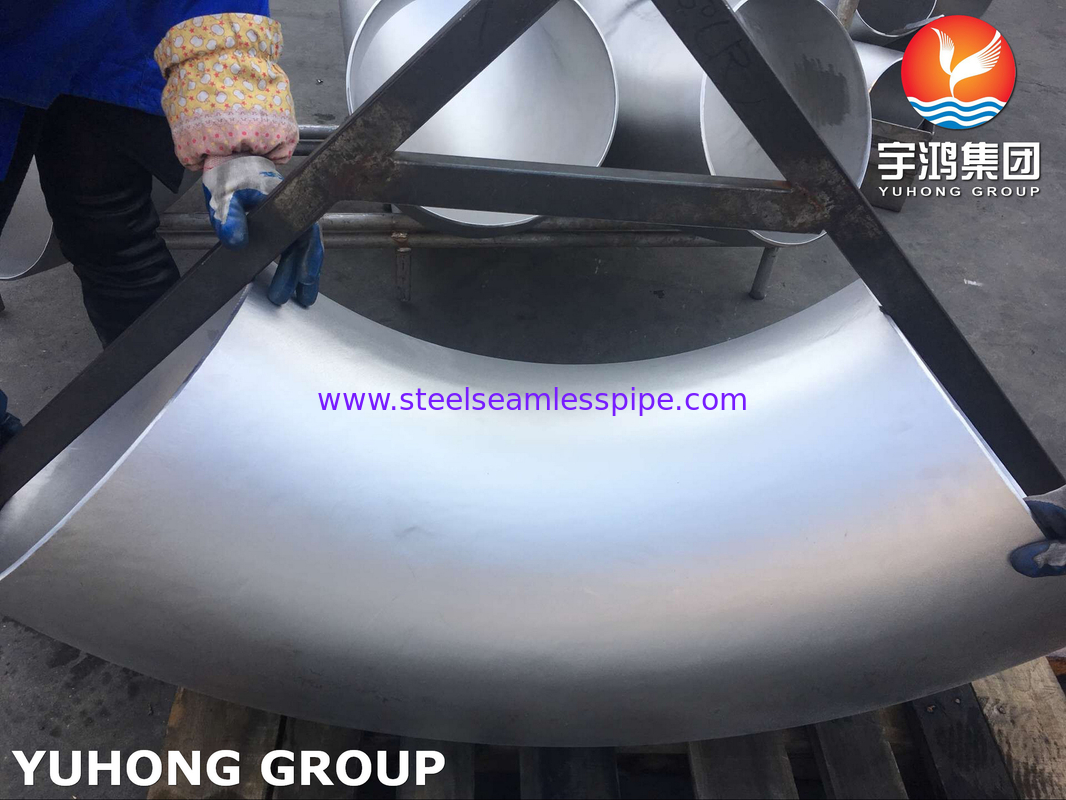

EN 10253-2 1.4541 Large Diameter Butt Weld Fitting 90 Deg Elbow

EN 10253-2 1.4541 Large Diameter Butt Weld Fitting 90 Deg Elbow

1.4541 Large Diameter Butt Weld Fitting

1.4541 stainless steel 90 degree elbow

buttweld stainless steel 90 degree elbow
