Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16

Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16

  • Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
  • Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
  • Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
  • Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API, PED,
Model Number: EN1092-1 304L
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD
Packaging Details: PLY-WOODEN CASE
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T
Supply Ability: 1000 TONS PER MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (278)
Stainless Steel Seamless Tube (267)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (91)
Fin Tube (605)
Heat Exchanger (10)
Heat Exchanger Tube (421)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (75)
Copper Alloy Tube (211)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (787)
Steel Flange (576)
Others (384)
Detailed Product Description
Brand: YUHONG Standard: EN1092-1
MATERIAL: 304L PN: 10, 16
DN: 50, 100 Type: 01/A
Designs Of Flanges: Multiple Applications: Hydraulic Control Systems
Highlight:

EN1092-1 Flat Welding Flange

,

1.4404 Flat Welding Flange

,

1.4307 Flat Welding Flange

Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16



YUHONG'S each classification is labelled with the lettering EN 1092-1 (i. e. the reference standard) followed by a two-digit number indicating the construction of the flange, and a letter which indicates the kind of sealing surface of the flange.

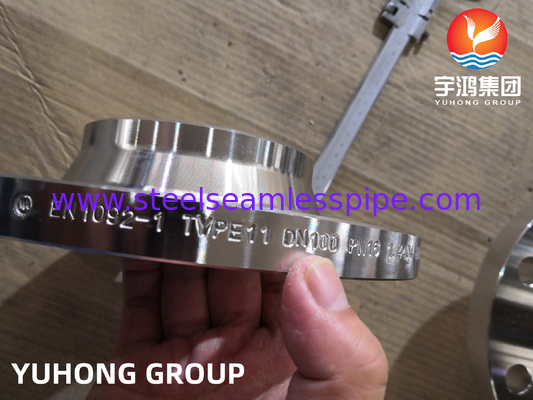

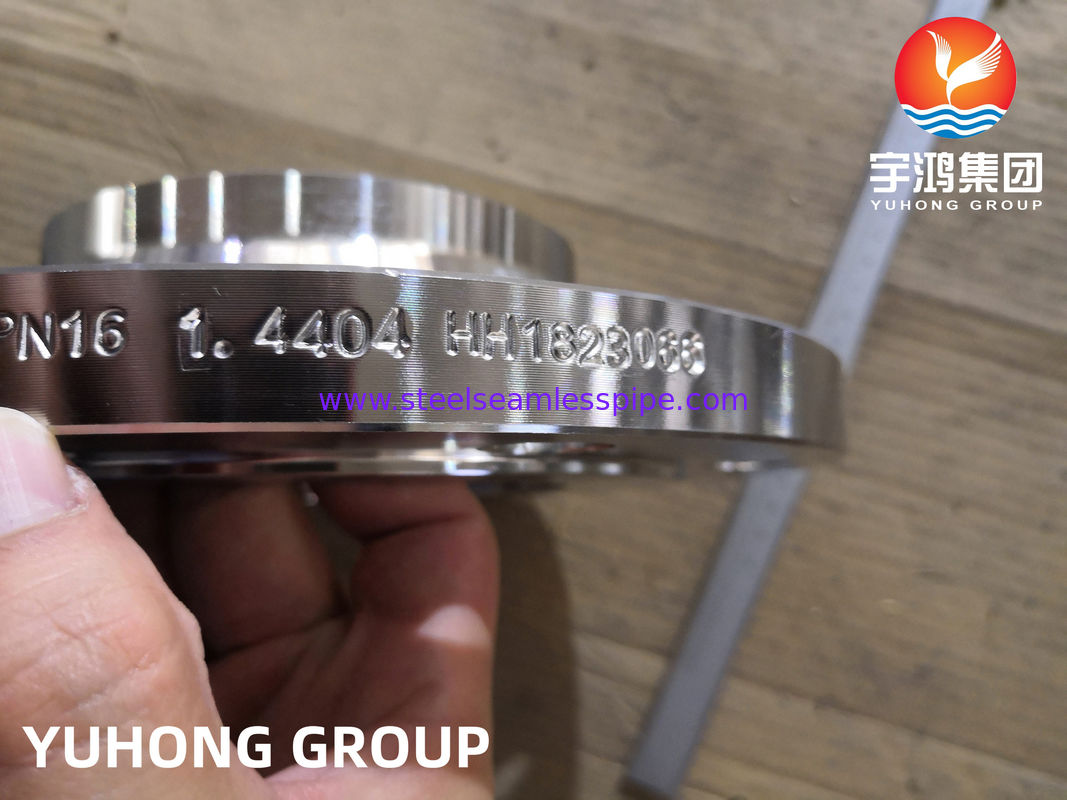

The labelling on the side of all kinds of flanges includes not only the lettering EN 1092-1 TYPE___, but also information concerning PN, DN and casting of the raw material used for the creation of the flange.

Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16 0

Europe countries mainly install flanges according to standard EN 1092-1 FLANGE STANDARD (forged Stainless or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as weld neck flange, blind flange, lappedthe flange, threaded Flange (Thread ISO7-1 instead of NPT), weld on collar, pressed collars, and adapter flange such as flange coupling GD pressfittings. The different forms of flanges within the EN 1092-1 (European Norm Euronorm) is indicated within the flange name through the type.



Flange type (typ) as in DIN EN 1092-1
EN 1092-1 type 01 (Plate [slip-on] flanges for welding) 13 (Hubbed threaded flanges)
EN 1092-1 type 02 (Loose plate flanges with weld-on plate collar) 21 (Integral flanges)
EN 1092-1 type 04 (Loose plate flanges with weld-neck collar) 32 (Weld-on plate collars)
EN 1092-1 type 05 (Blank [blind] flanges) 33 (Lapped pipe ends)
EN 1092-1 type 11 (Weld-neck flanges) EN 1092-1 34 (Weld-neck collars)
EN 1092-1 12 (Hubbed slip-on flanges for welding) 36 (Pressed collar with long neck)
  37 (Pressed collar)



Grade : X2CrNi18-9
Number: 1.4307
Classification: Austenitic stainless steel
Density: 7.9 g/cm ³



EN ASTM/ASME
1.4301 / 1.4307 AISI 304 / 304L
1.4401 / 1.4404 AISI 316 / 316L
1.4541 AISI 321
1.4571 AISI 316Ti

Properties



Dimensions: DN50 2" (ø 60,3 mm)
Hole size (mm): 60.3
Material type: 304 (L)
Pressure stage: PN10, PN16
Number of holes: 4 x M16
Outside diameter (mm): 165
Hole spacings: 125 mm

Dimensions



Dimension A 20
Dimension B 165
Dimension C 60,3
Dimension D
Dimension E 125
Form: types of Contact Faces DIN EN 1092-1
Without Raised Face Form A
Raised Face (Rz = 160 Mechanical Turned) Form B1
Raised Face ( Rz = 40 Mechanical Turned) Form B1
Raised Face (Rz = 16 Mechanical Turned) Form B2
Tongue According to DIN2512 Form C
Groove According to DIN 2512 Form D
Male According to DIN 2513 Form E
Female According to DIN 2513 Form F
Female According to DIN 2514 Form G
Male According to DIN 2514 Form H



 Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16 1
