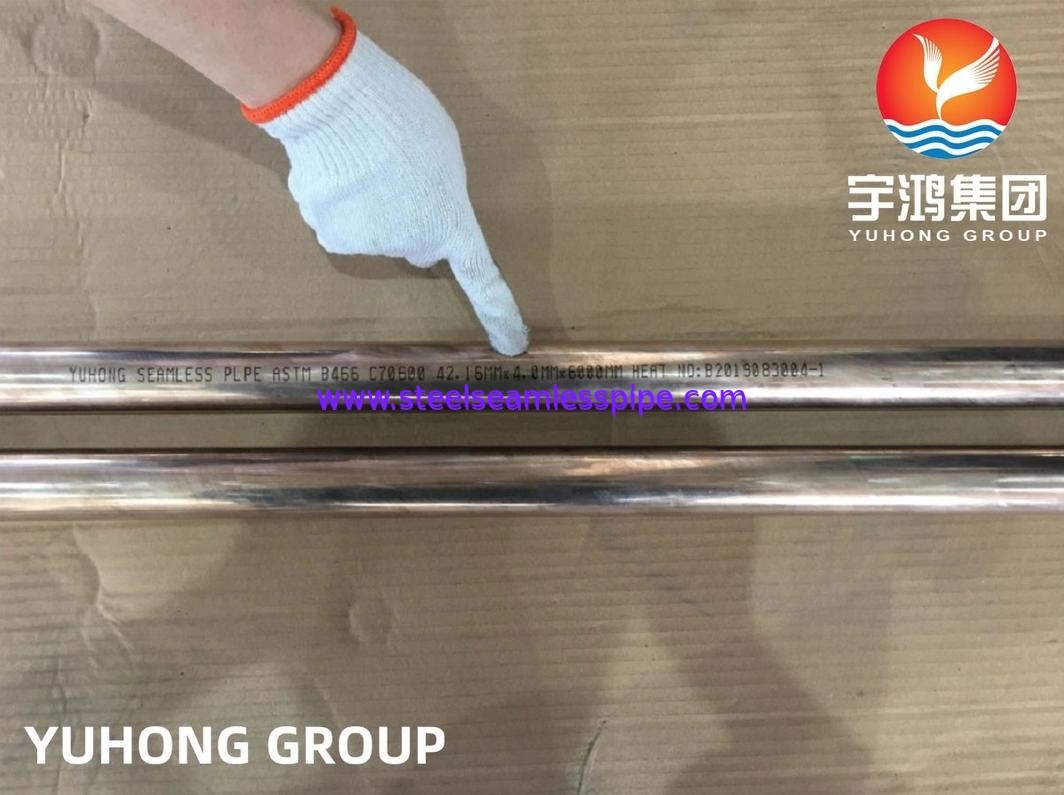

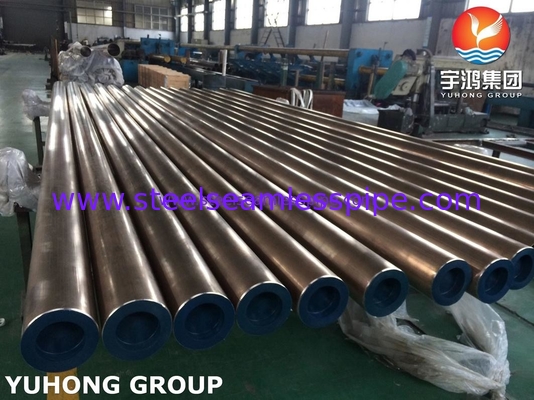

16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier

16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier

  • 16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier
  • 16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier
  • 16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier
16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS.
Model Number: DIN 86019 CuNi10Fe1.6Mn
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: 0-1000000USD
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Supply Ability: 500 Tons/ month
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Standard: BS 2871 CN102 / EN 12449 / EN 1652 O.D.: 16MM
W.T.: 2MM T.L.: 6000MM
Surface: Matt Mterial: DIN 86019 CuNi10Fe1.6Mn
Testing: ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. Application: Heat Exchanger, Condenser, Seawater Pipeline, Shipbuilding, Etc.
Highlight:

16MM Copper Nickel Alloy Seamless Pipe

,

90 10 copper nickel pipe price

,

Marine Bolier copper nickel pipe

16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier



YUHONG is a manufacturer of copper tubes. Our client includes prestigious builders, engineering consultants, HVAC contractors, Refrigeration and Air-conditioning OEMs.



DIN 86019



Seamless copper-nickel tubes acc. to DIN 86019, end edges unmachined. Suitable for use in shipbuilding and offshore applications for seawater pipes and related applications. Their advantages are the high corrosion resistance, especially the very good seawater resistance and the temperature application range from -270°C to +300°C.

Grade
Element Composition/%

Ni+Co
Mn
Cu
Fe
C
Si
Cr
S

Ni201
≥99.0
≤0.35
≤0.25
≤0.30
≤0.02
≤0.3
≤0.2
≤0.01

Ni200
≥99.0
/≤0.35
≤0.25
≤0.30
≤0.15
≤0.3
≤0.2
≤0.01

Mechanical Property




Grade
Density
Melting point
Coefficient of expansion
Modulus

of

rigidity
Modulus

of

elasticity
Electrical

resistivity

Ni200
8.9g/

cm 3
1446°C
13.3 µm/m °C (20-100°C)
81kN/mm 2
204kN

/mm 2
9.6 μW

Ni201
1446°C
13.1µm/m °C (20-100°C)
82kN/mm 2
207kN

/mm 2
8.5 μW



  DIN 86019
CuNi10Fe1.6Mn
2.1972		 EEMUA 234
UNS 7060X		 BS 2871
CN 102		 ASTM B466
C70600		 JIS H 3300
C7060		 MIL-T-16420K
C70600
Ni% 9.0-11.0 10.0-11.0 10.0-11.0 9.0-11.0 9.0-11.0 9.0-11.0
Fe% 1.5-1.8 1.5-2.0 1.0-2.0 1.0-1.8 1.0-1.8 1.0-1.8
Mn% 0.5-1.0 0.5-1.0 0.5-1.0 Max.1.0 0.2-1.0 Max1.0
C% Max.0.05 Max.0.05 Max.0.05 Max.0.05   Max.0.05
Pb% Max.0.03 Max.0.01 Max.0.01 Max.0.02 Max.0.05 Max.0.02
S% Max.0.015 Max.0.02 Max.0.05 Max.0.02   Max.0.02
P% Max.0.02 Max.0.02   Max.0.02   Max.0.02
Zn% Max.0.15 Max.0.20   Max.0.50 Max.0.50 Max.0.05
Zr% Max.0.03
Others Max.0.30 Max.0.30 Max.0.30
Cu% Balance Balance Balance Balance Cu+Ni
+Fe+Mn
Min.99.5		 Min.86.5
Material Designation Corresponding Material Symbol
GB/T8890 ASTM B111 BS2871 JIS H3300 DIN 1785
Copper-Nickel BFe10-1-1 C70600 Pipe CN102 C7060 CuNi10Fe1Mn
BFe30-1-1 C71500 Pipe CN107 C7150 CuNi30Mn1Fe
(BFe30-2-2) C71640 CN108 C7164 CuNi30Fe2Mn2
(BFe5-1.5-0.5) C70400 – – –
B7 – – – –
Aluminium Brass HAL77-2 C68700 Tube CZ110 C6870 CuZn20Al2
Admiralty Brass HSn70-1 C44300 Tube CZ111 C4430 CuZn28Sn1
Boric Brass Hsn70-18 – – – –
HSn70-1 AB – – – –
Arsenical Brass H68A – CZ126 – –
Brass Tubes H65/H63 C28000/C27200 CZ108 C2800/C2700 CuZn36/CuZn37



16MM DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Marine Bolier 0
