Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China,Korea |
| Brand Name: | YUHONG |
| Certification: | ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS |
| Model Number: | TP304H, TP309, TP310S, TP310H, TP316H, TP321H, TP347H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1--10000 USD |
| Packaging Details: | Bundle + Cap , Ply wooden case |
| Delivery Time: | 5---75 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 tons/month |
| Standard: | ASTM A213, ASME SA213, EN10216 , [7] ASME Boiler Pressure Vessel Code Section II | Material Grade: | TP304H, TP309, TP310S, TP310H, TP316H, TP321H, TP347H |
|---|---|---|---|
| Application: | Boiler , Heating, Fire Furnace , Steam Furnace , Power Plant , Energy , Oil Refining, Petrochemical | NDT: | ET, UT, HT, PT, PMI |
| Length: | Max.: 34m/pc | Packing: | Ply Wooden Case |
| High Light: | High Pressure Pipework Boiler Tube,High Temperature Boiler Tube,ASME SA213 Boiler Tube |
||

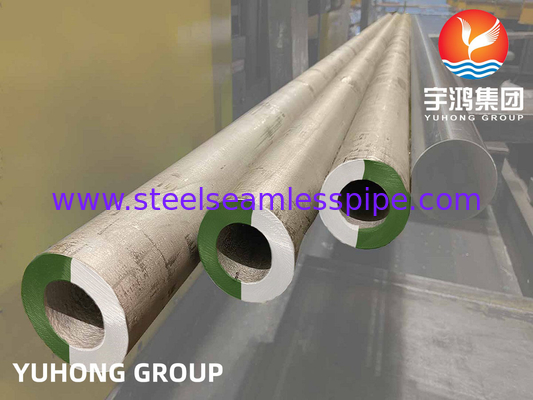

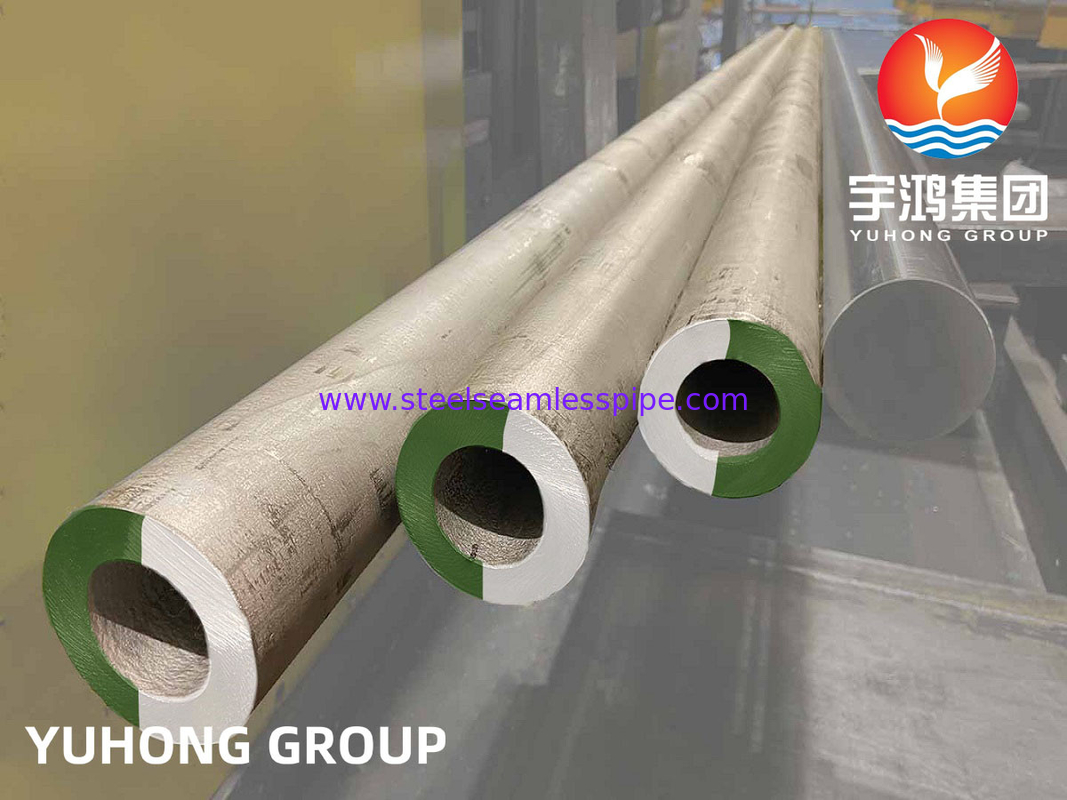

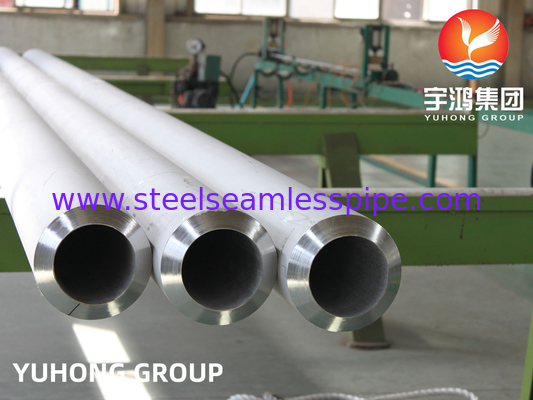

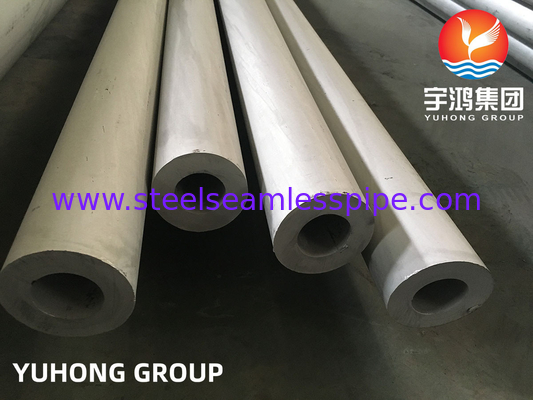

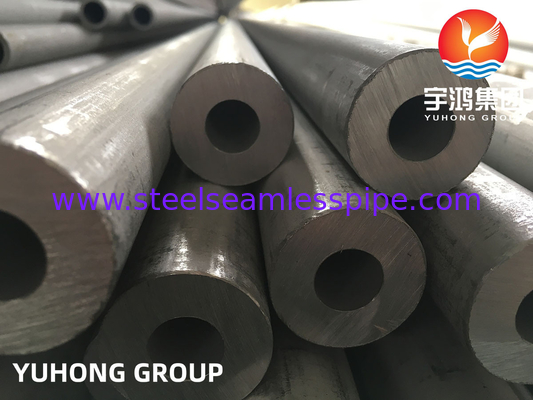

ASME SA213 TP310H Boiler Tube, High Temperature , High Pressure Pipework
Yuhong Holding Group has more more than 35 years experience for pipeline products, till now we have 3 big joint venture factories, the total production area more than 130000 square meters, and more than 600 workers with 106 production lines give our clients excellent supporting always. The factories already got certificates like : ABS, LR, DNV-GL, BV, KR, CCS, ASME, ISO 9001, ISO14001, ISO18001, ect.
Our factories main products as below :
Factory 1th: Stainless steel seamless tube, Duplex steel seamless tube, Super duplex steel seamless tube, Nickel alloy steel seamless tube;
Factory 2th: Carbon steel seamless tube, Alloy steel seamless tube; Enhanced Heat Tranfer Tube, low fin tube ,U bending workshop;
Factory 3th: High frequency welding fin tube(HFW fin tube, Solid Fin tube, Studded Tube, Serrated Fin tube, Longitudinal welding fin tube), Wound fin tube(L type fin tube, LL type fin tube, KL type fin tube), Embedded G type fin tube , Extruded fin tube, low fin tube, U bend & 180deg. Return;
Yuhong Holding Group also has gained rich experience for project package( products contain:Pipes, Fittings, Flanges, heat exchanger, furnace, fired heater, air cooler, boiler) , YUHONG brand has marked its global presence in more than 85 countries, like, Korea, USA, Canada, Mexico, Colombia, Bolivia, Chile, Argentina, Brazil, Ecuador, Austria, New Zealand, Singapore, Malasyia, Indonesia, Thailand, Vietnam, Ukraine, Turkey,Sauid Arabia, Qatar, U.A.E,Israel,India, UK, France, Italy, Gernmany, Poland, Spain,... We have successfully implemented the orders of Cross Country Pipelines for our valuable customers. In addition, we have also developed a huge network of contacts and strategic alliances with most important manufacturers as stockists around the world.
| ASME SA213 -2023 Chemical Composition (%) | |||||||||||||||
| Standatd | Grade | C | Mn | P | S | Si | Cr | Ni | Mo | N | TI | Cu | Al | Fe | Result |
| ASME SA213 | TP304H | 0.04~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 18.0~20.0 | 8.0~11.0 | / | / | / | / | / | / | / |
| ASME SA213 | TP309S | ≤0.08 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 22.0~24.0 | 12.0~15.0 | / | / | / | / | / | / | / |
| ASME SA213 | TP309H | 0.04~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 22.0~24.0 | 12.0~15.0 | / | / | / | / | / | / | / |
| ASME SA213 | TP310S | ≤0.08 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 24.0~26.0 | 19.0~22.0 | / | / | / | / | / | / | / |
| ASME SA213 | TP310H | 0.04~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 24.0~26.0 | 19.0~22.0 | / | / | / | / | / | / | / |
| ASME SA213 | S31254 | ≤0.02 | ≤1.0 | ≤0.03 | ≤0.01 | ≤0.8 | 19.5~20.5 | 17.5~18.5 | 6.0~6.5 | 0.18~0.25 | / | 0.5~1.0 | |||
| ASME SA213 | TP316H | 0.04~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 16.0~18.0 | 11.0~14.0 | 2.0~3.0 | / | / | / | / | / | |
| ASME SA213 | TP321H | 0.04~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 17.0~19.0 | 9.0~12.0 | / | / | 4(C+N)~0.7 | / | / | / | / |
| ASME SA213 | TP347H | 0.04~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 17.0~19.0 | 9.0~13.0 | / | / | 8*C~1.1 | / | / | / | / |
| ASME SA213 | TP347HFG | 0.06~0.1 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 17.0~19.0 | 9.0~13.0 | / | / | 8*C~1.1 | / | / | / | / |
| ASME SA213 | NO 8020 | ≤0.07 | ≤2.0 | ≤0.045 | ≤0.03 | ≤1.0 | 19.0~21.0 | 32.0~38.0 | 2.0~3.0 | / | / | 3.0~4.0 | / | / | / |
| ASME SA213 | NO 8028 | ≤0.03 | ≤2.5 | ≤0.03 | ≤0.03 | ≤1.0 | 26.0~28.0 | 30.0~34.0 | 3.0~4.0 | / | / | 0.6~1.4 | / | / | / |
| ASME SA213 | NO 8367 | ≤0.03 | ≤2.0 | ≤0.04 | ≤0.03 | ≤1.0 | 20.0~22.0 | 23.5~25.5 | 6.0~7.0 | 0.18~0.25 | / | ≤0.75 | / | / | / |
| ASME SA213 | NO 8800 | ≤0.1 | ≤1.5 | ≤0.045 | ≤0.15 | ≤1.0 | 19.0~23.0 | 30.0~35.0 | / | / | 0.15~0.6 | ≤0.75 | 0.15~0.6 | ≥39.5 | / |
| ASME SA213 | NO 8810 | 0.05~0.1 | ≤1.5 | ≤0.045 | ≤0.15 | ≤1.0 | 19.0~23.0 | 30.0~35.0 | / | / | 0.15~0.6 | ≤0.75 | 0.15~0.6 | ≥39.5 | / |
| ASME SA213 | NO 8811 | 0.06~0.1 | ≤1.5 | ≤0.045 | ≤0.15 | ≤1.0 | 19.0~23.0 | 30.0~35.0 | / | / | 0.15~0.6 | ≤0.75 | 0.15~0.6 | ≥39.5 | / |
| ASME SA213 | TP444 | ≤0.03 | ≤1.0 | ≤0.04 | ≤0.03 | ≤1.0 | 175~19.5 | K | 1.75~2.5 | ≤0.035 | / | K | / | / | Ni+Cu ≤1.0 |
| Abbreviation | Description |
| ASME | American Society of Mechanical Engineers |
| BPVC | Boiler Pressure Vessel Code |
| EN | Euro Norm |
| EPRI | Electric Power Research Institute |
| HP | High Pressure |
| MPa | Mega Pascal |
| OD | Outside Diameter |
| PED | Pressure Equipment Directive |
| PWHT | Post Weld Heat Treatment |
