ASME SA789 S32205 19.05x2.11x6100MM Duplex Steel Seamless Tube Heat Exchanger Air Cooler Condenser Evaporator

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA789,SA790 GRADE S31803 / S32750 / S32205 / S31254

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	ron/Ply Wooden Case
Delivery Time:	10-15 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 tons / month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Standard:

ASTM A789, ASTM A790

Material:

S31803, S32750, S32205, S31254MO

Type:

Straight And U Tubing

Test:

HT,HT ,HEAT TREATMENT

Highlight:

19.05x2.11x6100MM duplex steel seamless tube

S32205 duplex steel seamless tube

air cooler duplex steel seamless tube

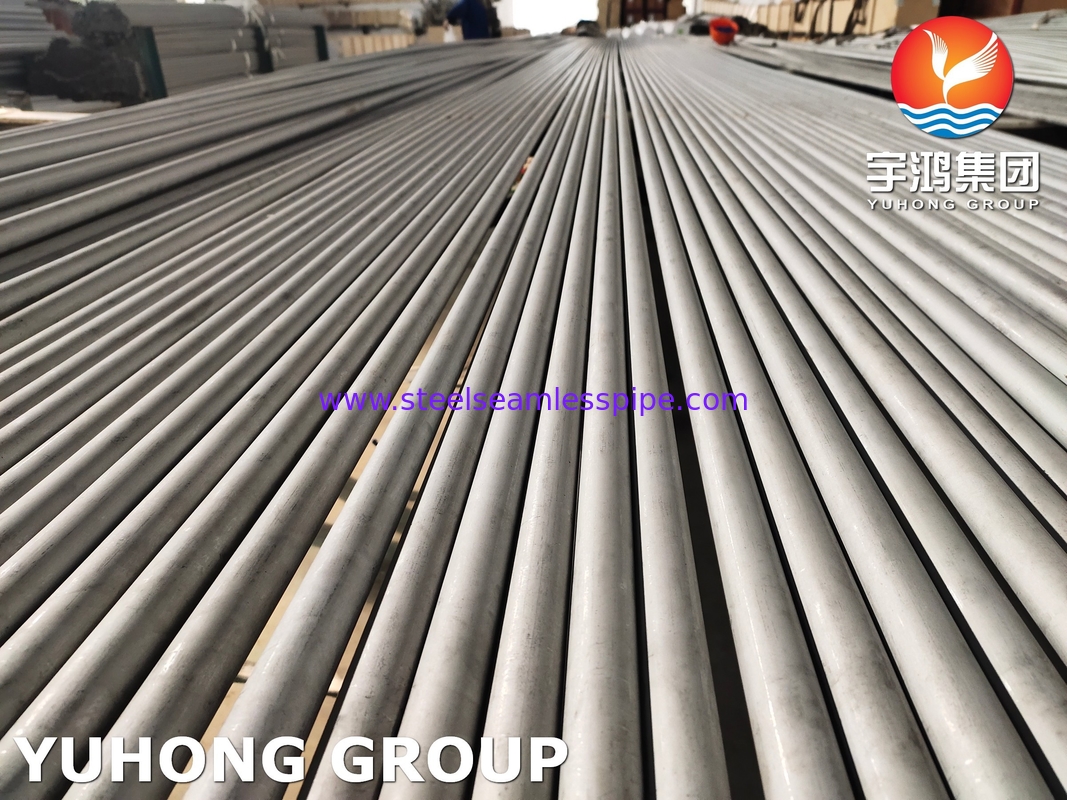

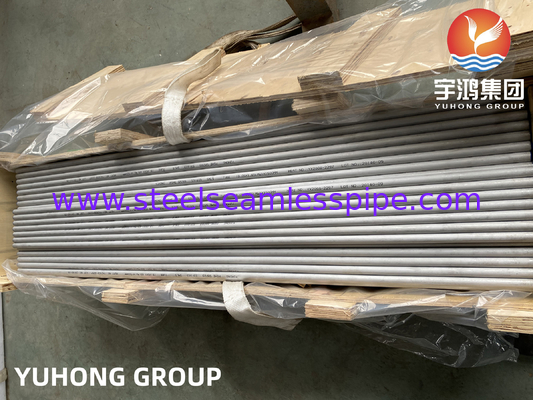

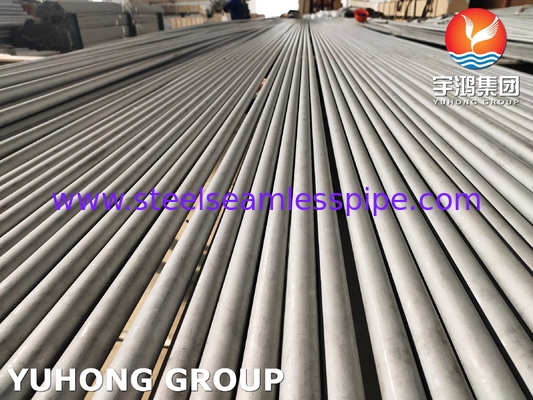

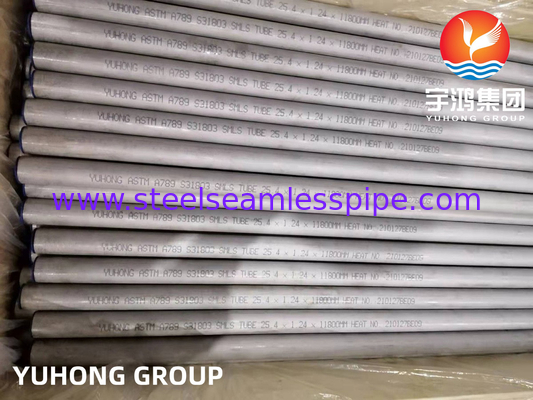

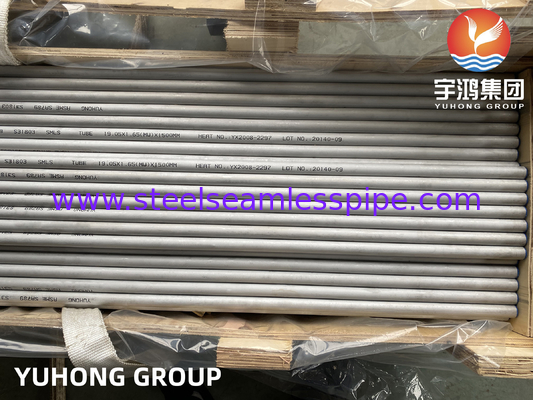

DUPLEX STEEL SMLS TUBE SA789 S32205 19.05x2.11x6100MM HEAT EXCHANGER TUBE AIR COOLER ,CONDENSER ,EVAPORATOR

YUHONG SPECIAL STEEL deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.

STM A789 S32205 Duplex stainless steel pipe is similar with S31803, both featured with structure of two phases (α and γ) and has characteristics of both ferritic and austenitic stainless steel. It has good corrosion resistance and high strength. It is alloyed with 18%-28% Cr and 3%-10% Ni in the condition of low C. Some steels also contain the alloy elements such as Mo, Cu, Nb, Ti and N, etc. Comparing with ferritic stainless, duplex stainless steel has higher plasticity, ductility and better intergranular corrosion resistance and weldability. It keeps same 475℃ brittleness with ferritic stainless and high thermal conductivity. Duplex has improved yield strength, resistance to intergranular corrosion, stress corrosion, corrosion fatigue and abrasion & corrosion compared with austenitic stainless steel.

Characteristics

High resistance to chloride stress corrosion cracking
Resistance to chloride pitting and crevice corrosion
Good general corrosion resistance
Good sulfide stress corrosion resistance
High Strength
Good weldability and workability

Specification	Details
ASTM Specification	ASTM A789, ASME SA789
Manufacturing Type	Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Standard	SUS, JIS, AISI, ASTM, GB, DIN, EN
Additional Services	Destructive and Non Destructive testing, Threading, Ultrasonic Testing, Beveling, Cutting, Draw & Expansion as per required Size & Length
Pipe End Type	Plain End, Beveled End, Treaded S32205 Stainless Steel Pipe
Marking Details	Manufacturer’s Name or Custom Logo - on request, Heat Number, Method of Manufacturing (Seamless / Welded), Material Grade, Schedule or Wall Thickness, Specification, Nominal Size
Inspection & Testing	Destructive and Non-Destructive Testing
Surface Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Gauge (Swg & Bwg)	10, 12, 14, 16, 18, 20 Swg.
Temperature Range	-50 to 300°C (Depends on material grade)
Pressure Rating	Up to 6000 PSI (Depends on size and schedule)
Manufacturing Process	Hot finished, cold finished, heat treatment
Test Certificate Provisions	Manufacturer Test Certificate, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC), Laboratory Test Certificate from Govt. Approved Lab, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, etc.
Packaging	Bundled, Wooden Boxes, Plastic Bags, or as per client's requirements
Applications	Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry
