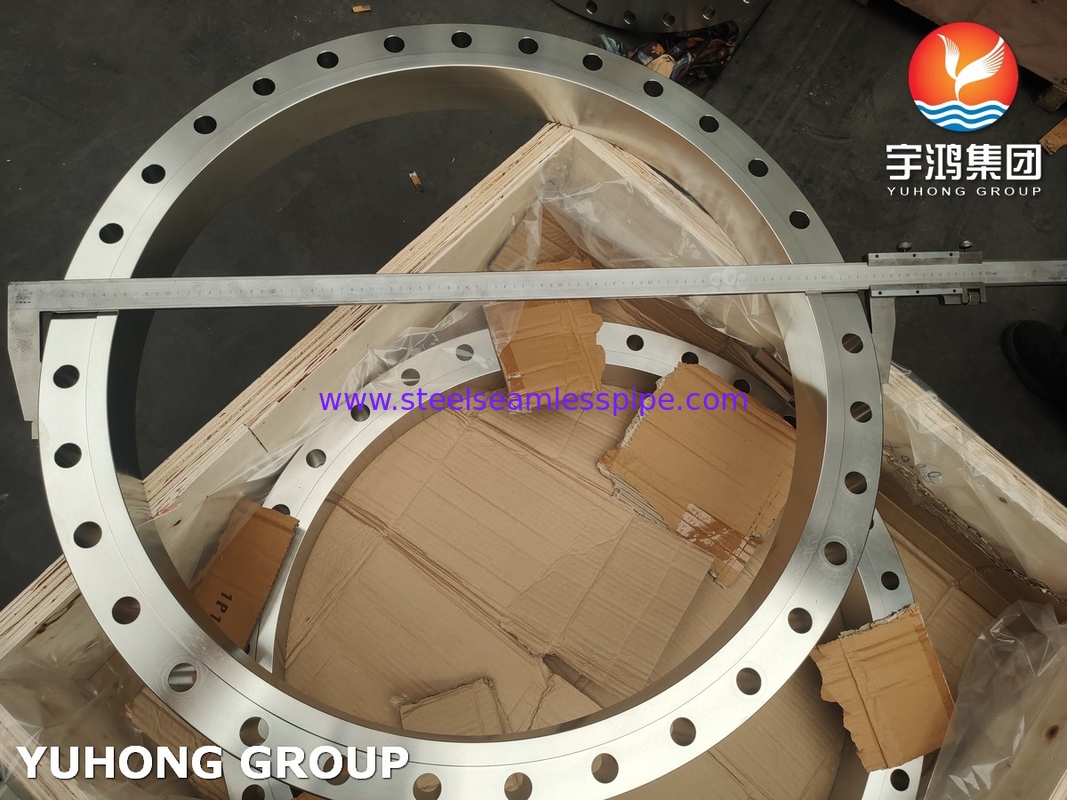

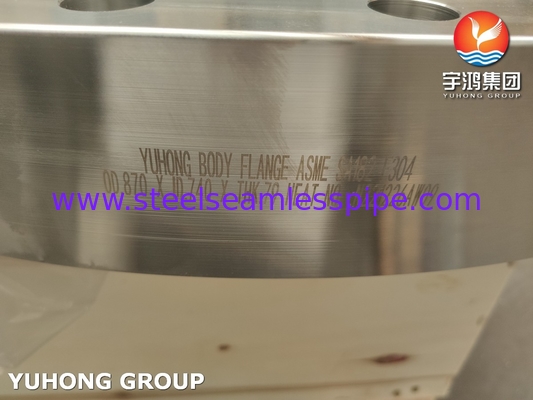

B16.5 ASTM A182 / ASME SA182 F304 Stainless Steel Body Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A182 F304 Socket Weld Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Ply-wooden Case / pallet
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Product Name:	Stainless Steel Flange	Dimensions:	ANSI Flange, ASME Flange, BS Flange, DIN Flanges, EN Flange
Standard:	ASTM A182 / ASME SA182	Material:	F304, F304L , F316L , F321, F321H, F347H , F317L, F310S, F310H
Type:	Slip-on, Blind, Lap Joint, Socket Weld, Thread Flanges	Class:	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Surfacing:	FF,RF,M,F,T,G,RJ,MF,TG
Highlight:	ASTM A182 Stainless Steel Body Flange , B16.5 Stainless Steel Body Flange , F304 stainless steel body flange

B16.5 Forged Flange , ASME SA182 F304 Stainless Steel Body Flange

A steel body flange is a specific type of flange made from carbon steel, stainless steel, duplex steel, nickel alloys, etc. designed to connect various structural components in vehicles, machinery, or piping systems. They often allow for easy assembly and disassembly, making maintenance simpler.

Body Flange:

Purpose: Primarily used in vehicles and structures to connect body panels or components, providing structural support and alignment.
Design: Often integrated into the vehicle's design, shaped to fit specific contours and mounting points.
Material: Commonly made of steel or other durable materials, often treated for corrosion resistance.
Flexibility: Typically allows for adjustments during assembly.

Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10

Chemical Composition and Mechanical Property for 304/304L
Steel Grade	Chemical Composition									Mechanical Performance
	C(Max)	Si(Max)	Mn(Max)	P(Max)	S(Max)	Ni	Cr	N	Mo	Tensile Strength (Min)	Yield Strength (Min)
										Mpa	Mpa
304	0.08	0.75	2.00	0.045	0.03	8.0–10.5	18.0–20.0	0.1	/	515	205
304L	0.03	0.75	2.00	0.045	0.03	8.0–12.0	18.0–20.0	0.1	/	485	170

ASTM Standard SS Flange	ANSI B16.5, ANSI B16.47 Series A or MSS SP-44, ANSI B16.47 series B or API-605 , ANSI B16.48, ANSI B16.36
DIN Standard SS Flange	DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, DIN 2673
JIS SS Flange	JIS B2220 5K / JIS B2220 10K / JIS B2220 16K / JIS B2220 20K SS 316L Flange
EN SS Flange	EN 1092-1
BS 4504 SS Flange	BS4504 PN 6/PN 10/PN 16/PN 25/PN 40/PN 64/PN 100/PN 160/PN 250 Stainless
BS SS Flange	BS Table D Flange, BS Table E Flange, BS Table F Flange, BS Table H Flange
Size	1/8" NB to 48"NB
Type	Slip-on, blind, lap joint, socket weld, thread flanges
Surfacing	FF,RF,M,F,T,G,RJ,MF,TG

PT Test

B16.5 ASTM A182 / ASME SA182 F304 Stainless Steel Body Flange 0

Applications of pipe flanges
Pipe flanges are widely used in pipe fittings of various industrial, commercial and residential applications. Pipe flanges can be customized to suit your application with various machining details. These pipe flanges have been used extensively in:
UHV applications
A. Hydraulic control systems for turbine generators
B. High pressure ground support missile systems
C. Nuclear and conventional power plant applications etc.
