Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1

Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1

  • Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1
  • Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1
  • Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1
Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: 9.53,19.05,12,7,25.4,38,1MM...
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS

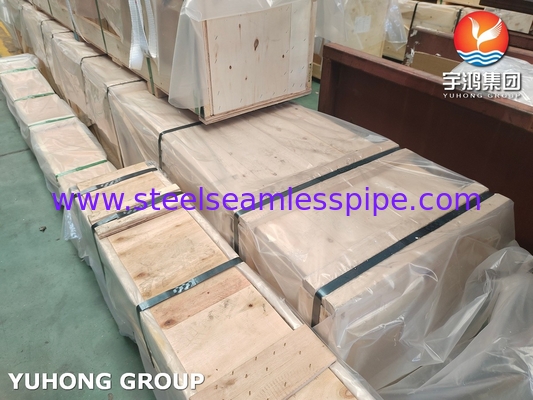

Packaging Details: Ply-wooden Case / Bundle
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (286)
Stainless Steel Seamless Tube (275)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (102)
Fin Tube (619)
Heat Exchanger (16)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (78)
Copper Alloy Tube (222)
Alloy Steel Tube (182)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (141)
Steel Fitting (797)
Steel Flange (583)
Others (388)
Cladding Parts (7)
Detailed Product Description
GRADE: C44300 – BSI No. CZ111 ISO Name CuZn28Sn1 STANDARD: ASTM B111,ASME SB111,ASTM B395,ASME SB395
TEST: ET, HT, UT Temper: O61
APPLICATION: Condenser, Evaporator And Heat Exchanger Tubes; Distiller Tubing.
Highlight:

Seamless Copper Alloy Heat Condenser Tube

,

C44300 Copper Alloy Heat Condenser Tube

,

Astm B111 C44300 copper alloy tube

Seamless Copper Alloy Heat Exchanger Tube Astm B111 C44300 O61 CuZn28Sn1



C44300 - has good corrosion resistance and is specially used for tubing of steam condensers cooled with fresh, salt or brackish water. Admiralty metal tubes are also used for heat exchangers in oil refineries, in which corrosion from sulfur compounds and contaminated water may be very severe, and for feed-water heaters and heat-exchanger equipment as well as other industrial processes.



ASTM B111/ B111M : Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock



UNS No. C44300 – BSI No. CZ111 ISO Name CuZn28Sn1
Chemical Comp. (%) Cu 70 ~ 73 / Sn 0.9 ~ 1.2 / Pb 0.07 / Fe 0.06 max / Zn rem / As 0.02 ~ 0.06



Properties * Metric
Density 8.53 g/cc
Tensile Strength, min. 310 MPa
Yield Strength, min. 105 MPa
CTE, linear 20.2 10-6/°C @ 20.0 – 300 °C
Specific Heat Capacity 0.09 cal/g-°C @ 20ºC
Thermal Conductivity 109 W/m-K @ 20.0 °C
Melting Point 899 ~ 938 °C



BRASS COPPER SEAMLESS BOILER TUBE ASTM B111 O61 C44300 C68700 C71500 Used for Air Condenser PASSED 3.2MTC INSPECTION



Applications: Condenser, Evaporator and Heat Exchanger tubes, Distiller tubing.

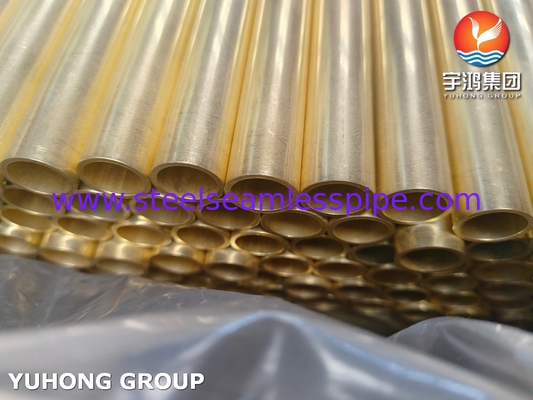

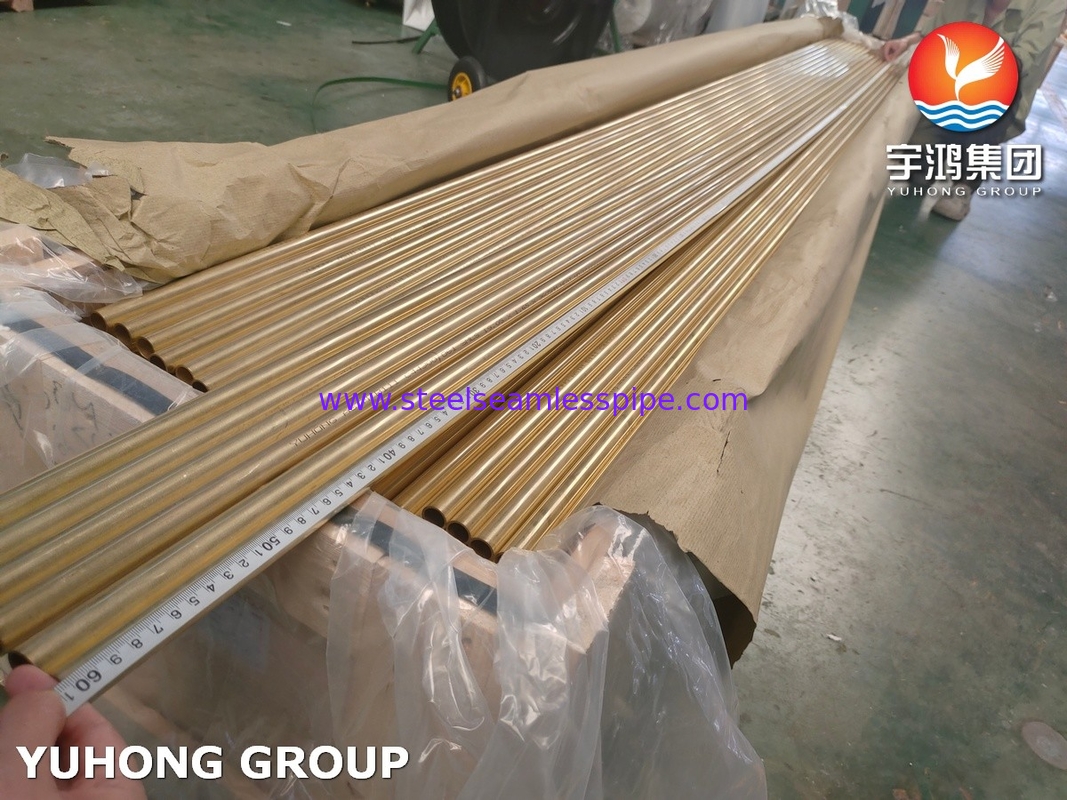

Seamless Copper Alloy Heat Condenser Tube Astm B111 C44300 O61 CuZn28Sn1 1
