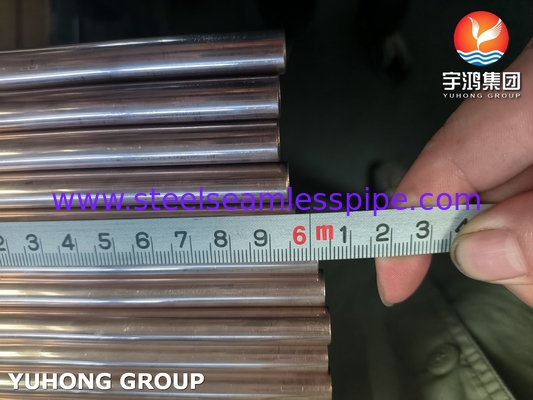

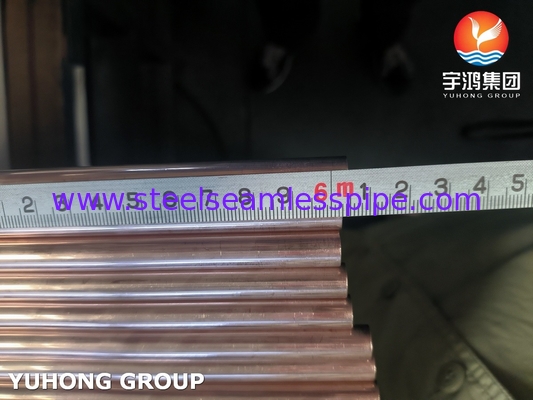

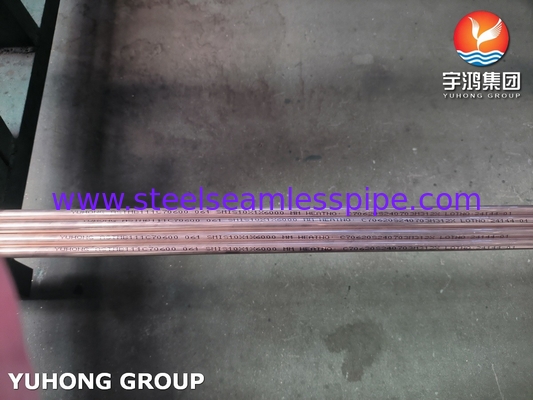

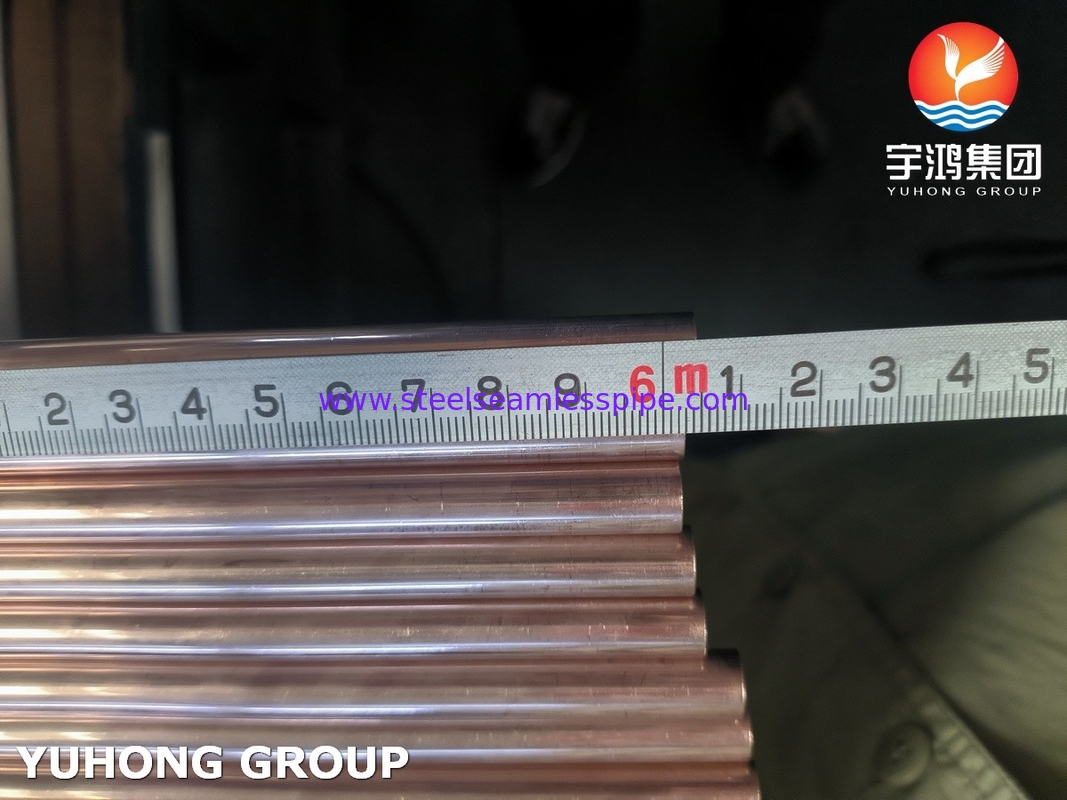

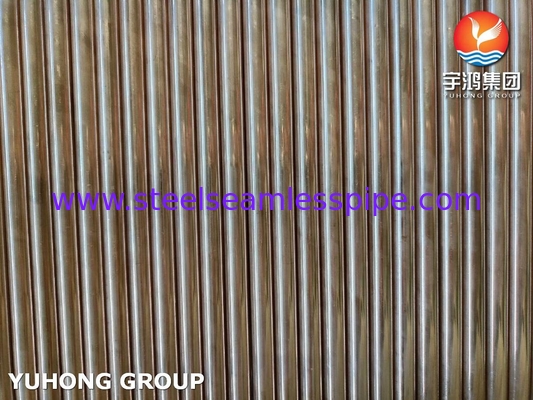

ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant

ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant

  • ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant
  • ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant
  • ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant
  • ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant
ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: Copper Alloy Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1000KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Specification: ASTM B111, ASME SB111 Grade: C70600
Type: Seamless Surface: Pickled And Annealed, Polished, Bright Annealed
Non Destructive Test: Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213 Size Standard: ASTM B16.10 & B16.19 & Customized
Highlight:

ASTM B111 Copper Alloy Tube

,

C70600 Copper Alloy Tube

,

Heat Exchanger Copper Alloy Tube

ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger , Condensation Plant



ASTM B111 C70600 is a specification for copper-nickel alloy tubes, commonly referred to as 90/10 copper-nickel. This alloy is composed of approximately 90% copper and 10% nickel, with trace amounts of iron and manganese to enhance overall strength and corrosion resistance.

ASTM B111 C70600 Copper Alloy Tube is a robust and versatile material ideal for applications requiring excellent corrosion resistance, especially in marine settings. Its combination of good mechanical properties and thermal conductivity makes it suitable for heat exchangers, condensers, and seawater piping systems in industries such as marine, power generation, desalination, chemical processing, and oil and gas.





Key Features:

  • Corrosion Resistance: Excellent resistance to seawater corrosion and biofouling.

  • Thermal Conductivity: Good heat transfer properties make it ideal for heat exchanger applications.

  • Mechanical Strength: Enhanced by the addition of nickel, providing durability.

  • Fabrication: Easily welded and fabricated, suitable for various applications.



Chemical Composition:

Grade

Cu

Ni

Fe

Mn

C70600

~88.6-90.0%

9.0-11.0%

1.0-1.8%

1.0% max



Mechanical Properties:

Grade

Yield Strength

Tensile Strength

Elongation

Hardness

C70600

Typically around 105-125 MPa

Approximately 310-380 MPa

30-40% in 50 mm

70-110 HRB



Applications:

ASTM B111 C70600 is widely used in industries where resistance to seawater corrosion is essential. Here are some detailed applications:



1. Marine Industry

  • Heat Exchangers and Condensers: Used in ships and offshore platforms due to excellent resistance to seawater.

  • Seawater Piping Systems: Provides durability in corrosive marine environments.

2. Power Plants

  • Cooling Systems: Utilized in power plants for cooling water systems and heat exchangers.

  • Condensers: Effective in steam turbine condensers due to its thermal conductivity and corrosion resistance.

3. Desalination Plants

  • Evaporator and Condenser Tubes: Essential in desalination processes where seawater is converted to freshwater.

4. Chemical Processing

  • Heat Exchangers: Used in chemical plants where resistance to corrosive chemicals is required.

5. Oil and Gas Industry

  • Offshore Platforms: Suitable for various components exposed to harsh marine environments.



ASTM B111 C70600 Copper Alloy Tube For Heat Exchanger Condensation Plant 0
