ASTM A179/ASME SA179 Heat Exchanger Tube Cold Drawn Killed with 100% ET/HT

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A179/ASME SA178

Payment & Shipping Terms:

Minimum Order Quantity:	1000KGS
Price:	USD 700-1000 /TONS
Packaging Details:	Ply- Wooden Case/Plastic Bag / Plastic Cap
Delivery Time:	20-70DAYS
Payment Terms:	L/C, T/T
Supply Ability:	ACCORDING TO CUSTOMER'S REQUEST

Contact Now

All Products

Stainless Steel Seamless Pipe (286)

Stainless Steel Seamless Tube (275)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (102)

Fin Tube (619)

Heat Exchanger (16)

Heat Exchanger Tube (425)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (78)

Copper Alloy Tube (222)

Alloy Steel Tube (182)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (141)

Steel Fitting (797)

Steel Flange (583)

Others (388)

Cladding Parts (7)

Detailed Product Description

OD:

6- 168 Mm

WT:

1-15 Mm

Length:

33000 Mm Max

Highlight:

ASTM A179 Heat Exchanger Tube

Killed Heat Exchanger Tube

ASME SA179 Heat Exchanger Tube

Product Description

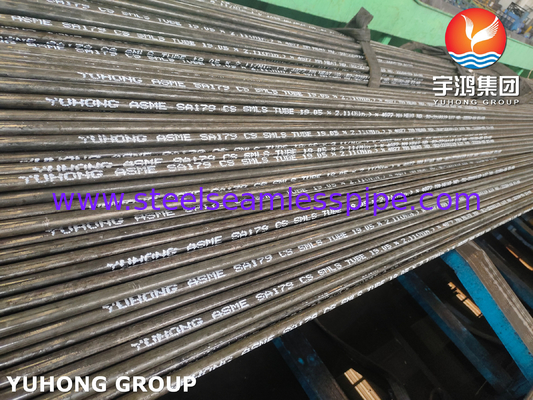

YUHONG ASTM A179 Seamless Heat Exchanger Tube Cold Drawn, with 100% ET/HT

Standard	ASTM A179,
Material	Carbon Steel
Size	WT: 1-15mm; OD: 6-168mm; Length: max 33000mm
Applications	For Heat-Exchangers, Cold Condensers and High-Pressure Services, High-Temperature Services for H Constructions
Manufacture	Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
Heat treatment	Hot finished tubes need not be heat treated. Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
Test	Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc

Chemical Composition

C	Mn	P	S	Si
0.06-0.18	0.27-0.63	≤0.035	≤0.035	≤0.25

Mechanical Properties

Tensile Streghth, min ksi [Mpa]	Yield Point, min ksi [Mpa]	Elongation, %
47[325]	26[180]	≥35%

Hardness

Brinell Hardness	Rockwell Hardness Number
WT≥0.200in(5.1mm)	WT<0.200in(5.1mm)
137HRB	77HRB

Tolerance for OD and WT(SA-450/SA-450M)

OD in(mm)	+	-	WT in(mm)	+	-
<1''(25.4)	0.10	0.10	≤1.1/2''(38.1)	20%	0
1''~1.1''(25.4~38.1)	0.15	0.15	>1.1/2''(38.2)	22%	0
>1.1/2''~<2''(38.1~50.8	0.20	0.20
2''~<2.1/2''(50.8~63.5)	0.25	0.25
2.1/2''~<3''(63.5~76.2)	0.30	0.30
3''~<4''(76.2~101.6)	0.38	0.38
4''~<7.1/2''(101.6~190.5)	0.38	0.64
>7.1/2~9''(190.5~228.6)	0.38	1.14
