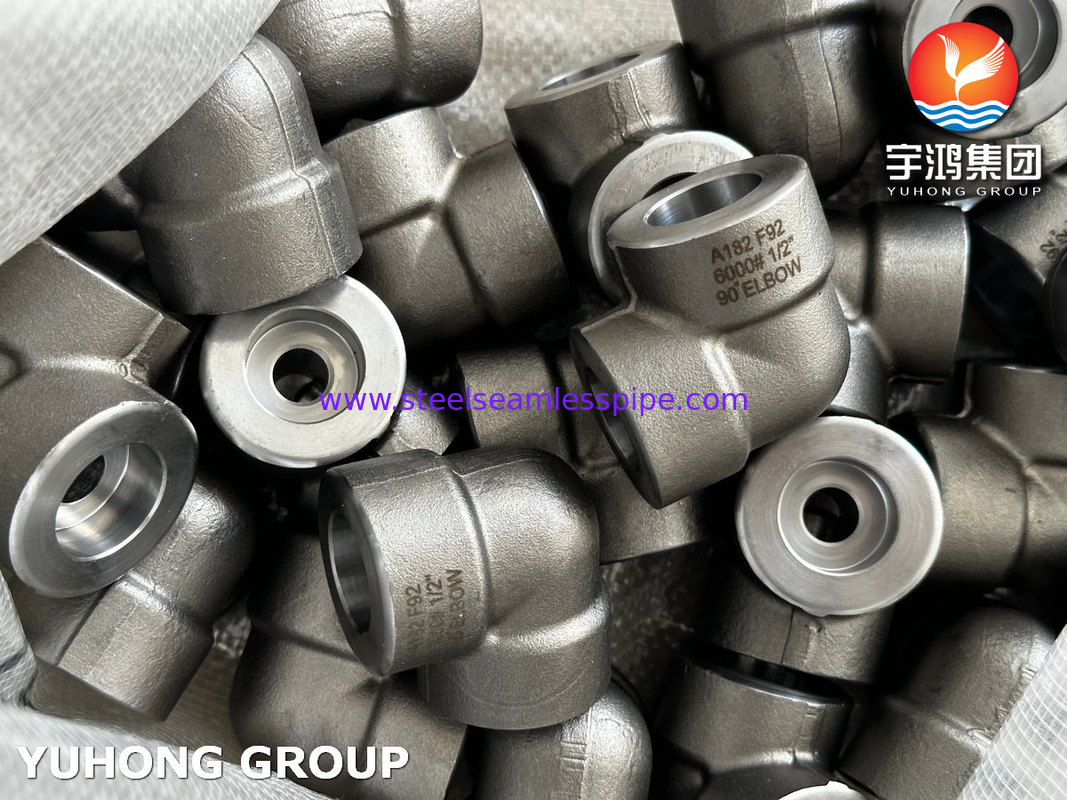

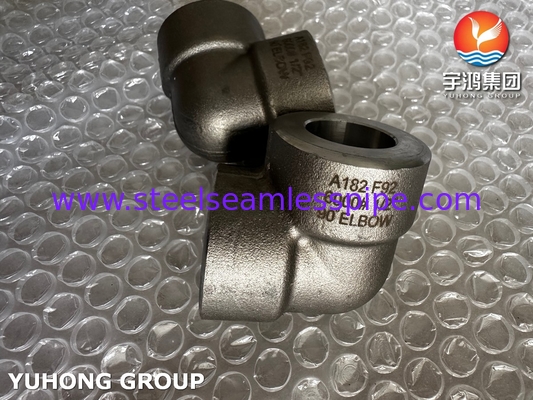

ASTM A182 F92 Alloy Steel 90° Elbow 6000# High Pressure Forged Pipe Fittings

B16.11 Forged ASTM A182 F92 Alloy Steel CLASS 6000 FORGED 90DEG. Elbow

ASTM A182 F92 Equivalent Grade

ASTM A182 F92 Chemical Composition

ASTM A182 F92 Mechanical Properties

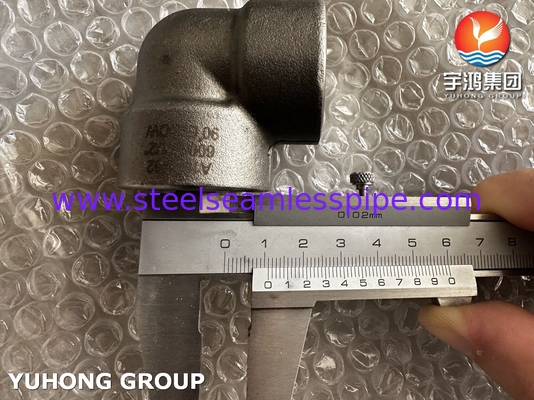

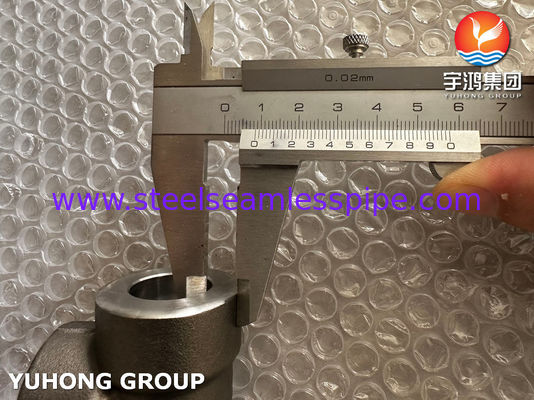

Product Pictures and Drawings

90 Degree Elbow (SW) 45 Degree Elbow (SW) Tee (SW) Lateral (SW) Cross (SW) Socket Weld Fittings

High Pressure Fittings are used in various industrial processes.

• They are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.
• They are used only in conjunction with ASME Pipe and are available in the same size range.
• They are used in areas where pipe-work is permanent and are designed to provide good flow characteristics.
• They are are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and Seamless Tubeswhich conform to the fittings chemical requirements, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.
• They are available in three pressure ratings: Class 3000, 6000 and 9000.

Applications

1. Oil and Gas Industry

Used in pipelines for transporting oil and gas, particularly in high-pressure and high-temperature settings.

2. Power Generation

Essential in steam and cooling systems, where they facilitate the movement of fluids and gases in power plants.

3. Chemical Processing

Commonly used in chemical plants for the transportation of corrosive chemicals, requiring materials that can withstand harsh environments.

4. Water & Wastewater Treatment

Utilized in systems that handle water purification and municipal wastewater management, ensuring efficient flow control.

5. Manufacturing and Fabrication

Found in various manufacturing processes, including those dealing with high-pressure steam, water, or gases.

6. Aerospace and Defense

Used in applications requiring lightweight yet strong fittings to manage fluids and gases efficiently under extreme conditions.

7. HVAC Systems

Employed in heating, ventilation, and air conditioning systems, enabling the distribution of air and other gases effectively.
