ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24" 90 Degree SR Elbow

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS , BV, LR , DNV, GL , KR, TUV , ISO
Model Number:	ASTM A403 WP304L Stainless Steel 90deg. Elbow

Payment & Shipping Terms:

Minimum Order Quantity:	1PC

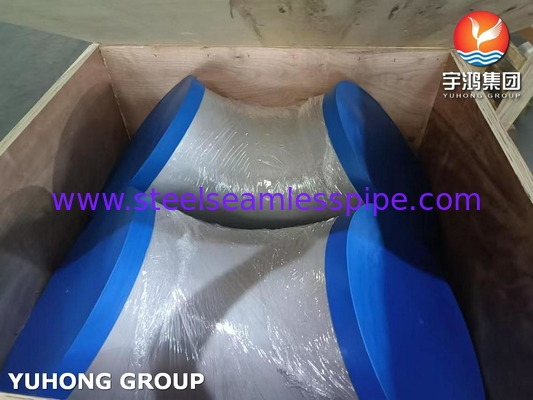

Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Product Name:	Stainless Steel Pipe Fittings	Standard:	ASTM A403 / ASME SA403
Material:	Stainless Steel 316L, 304, 304L, 304H, 321H, 310S, Etc.	O.D.:	1/2" To 48"
W.T.:	Schedule 10S - Schedule XXS	Form:	45deg. 90deg. 180deg. LR/SR Elbow
Type:	Seamless, Welded
Highlight:	ASTM A403 WP304L Pipe Fittings , 90 Degree SR Elbow , 90 Degree LR Elbow

B16.9 Butt Weld Pipe Fittings , ASTM A403 WP304/304L-S Stainless Steel 90 Degree SR Elbow

90-degree short radius elbow is a type of pipe fitting that allows for a 90-degree change in direction within a piping system, with a shorter radius compared to long radius elbows. The short radius design means the centerline radius (the distance from the center of the pipe to the center of the bend) is equal to the pipe diameter. This fitting is designed to provide a sharp turn in pipe configurations. Stainless steel 304L is an alloy known for its excellent corrosion resistance and good weldability. Commonly used in various industries, including chemical processing, food and beverage, pharmaceuticals and more.

Advantages

Space Saving: The short radius allows for tighter turns in constrained spaces.
Flow Characteristics: While it can create slightly more turbulence compared to long radius elbows, it's often sufficient for most applications.
Corrosion Resistance: Stainless steel provides excellent resistance to rust and corrosion, making it suitable for high-humidity or chemical environments.

ASTM A403 WP304/304L Pipe Fittings Equivalent Grade

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
Grade	UNS No	BS	En	No	Name	Swedish SS	Japanese JIS
304	S30400	304S31	58E	1.4301	X5CrNi18-10	2332	SUS 304
304L	S30403	304S11	-	1.4306	X2CrNi19-11	2352	SUS 304L

ASTM A403 WP304/304L Pipe Fittings Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min.max.	-0.08	-2.0	-0.75	-0.045	-0.030	18.0-20.0	-	8.0-10.5	-0.10
304L	min. max.	- 0.030	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 12.0	- 0.10

ASTM A403 WP304/304L Pipe Fittings Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201
304L	485	170	40	92	201

We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Stainless Steel ASTM A403 WP304L Fittings Specifications	ASTM A403/ ASME SA403
ASTM A403 WP304L Pipe fittings Types	ASTM A403 Grade WP304L Buttweld Fitting ASTM A403 WP304L Stainless Steel Seamless Fittings Stainless Steel ASTM A403 WP304L ERW Fittings ASTM A403 WP304L SS Welded Fittings SS WP304L Fabricated Pipe Fittings ASTM A403 Grade WP304L Bevel Ends Pipe Fittings
ASTM A403 WP304L WP304L Pipe Fittings Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASTM A403 WP304L Pipe Fittings size	ASTM A403 WP304L Seamless Butt Weld Fittings: 1/2" - 10" ASTM A403 WP304L Welded Butt Weld Fittings: 1/2" - 48"
Stainless Steel WP304L Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
ASTM A403 WP304L Pipe Fittings	Tee, Reduceing Tee, Elbow, Cap, Con. Reducer, Ecc. Reducer
Buttweld Fitting Types	Seamless / Welded
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WP304L Stainless Steel Buttweld Pipe Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Application & uses of Industrial A403 WP304L Fittings	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Schedule 10 fittings are an economical alternative for lower-pressure applications. Schedule 40 fittings have a thicker wall for higher-pressure applications.
