B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System

B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System

  • B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System
  • B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System
  • B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System
  • B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System
B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: ASTM A182 F60 SORF FLANGE
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Specification: ASTM A182, ASME SA182, EN10216-5 , GOST9941-91, JIS 3459, DIN17458 Grade: F60
Flange Type: WN, SO , BL , SW, SPECTACLE, LJP , ORINFICE Pressure: Class 150 - Class 15000
Non Destructive Test: Ultrsonic Test -ASTM E213, MT, PT Size: 1/4" NPS TO 48"NPS
Highlight:

B16.5 Forged Flange

,

Piping System Forged Flange

,

1.4462 Forged Flange

B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System


YUHONG is a renowned supplier of superior quality Duplex Steel F60 Flanges. We are offering all types of duplex stall flanges in various grades, standards, sizes, dimensions and specifications that meet the exact demands of our esteem customers. As exporters, we are indefatigably trying to provide our clients with products that give a host of Super Duplex Slip on Flanges products that are easy to transport and cost less.



Our proposed Duplex Steel F60 Flanges have superior resistance to general corrosion and pitting. Duplex steel has both ferritic and austenitic microstructure.



Our offered flanges are used to connect valves, pipes and other equipment by avoiding leakages. Duplex Steel F60 Flanges are highly resistive to sulfide corrosion, crevice cracking, stress corrosion cracking and chloride attacks. The excellent mechanical strength and toughness make these duplex flanges capable of sustaining in hostile environments.

F60 Equivalent:


STANDARD WERKSTOFF NR. UNS
Duplex F60 1.4462 S32205


Mechanical Properties of F60 Flange:


Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.8 g/m³ 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %

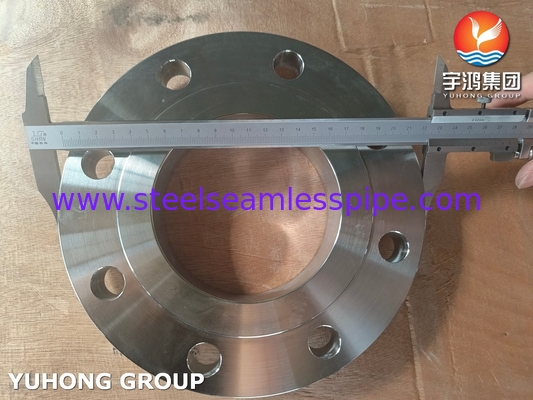

B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System 0

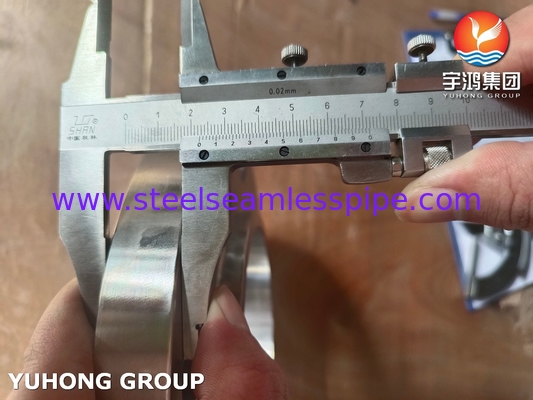

B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System 1

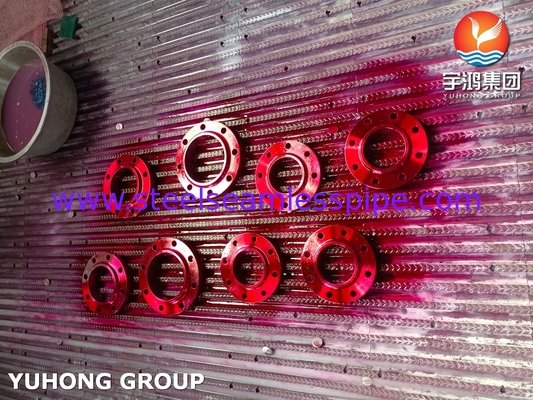

B16.5 ASTM A182 F60 1.4462 SORF Forged Flange For Piping System 2


ASTM A182 Grade F60 Duplex Flanges Weight Chart:


Normal Pipe Sizes Dimensions Of Flanges Weight In Kilogram
Normal Pipe Size
(Inch)		 DN (Millimeter) Flanges
Millimeter		 Flanges
Thickness		 Slip-on
Socket Weld (KG)		 Weld Neck (KG) Blind (KG)
1/2 15 88.9 11.2 0.4 0.5 0.4
3/4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/4 32 117.3 15.7 1 1.3 1.2
1 1/2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0


F60 Chemical Composition:


N P C Si Ni Mo Mn Cr Fe S
0.003 0.002 1.00 2.00 Bal 22.00 to 23.00 3.00 to 3.05 4.05 to 6.05 0.003 0.014 to 0.02





Applications:

  • Chemical processing
  • Desalination plants
  • Oil and gas exploration and production
  • Geothermal wells
  • Seawater and other chloride-containing environments
  • Salt evaporation
  • Pulp and paper production
  • Oil and Gas - refining, petrochemical and gas processing application
  • Seawater cooling
