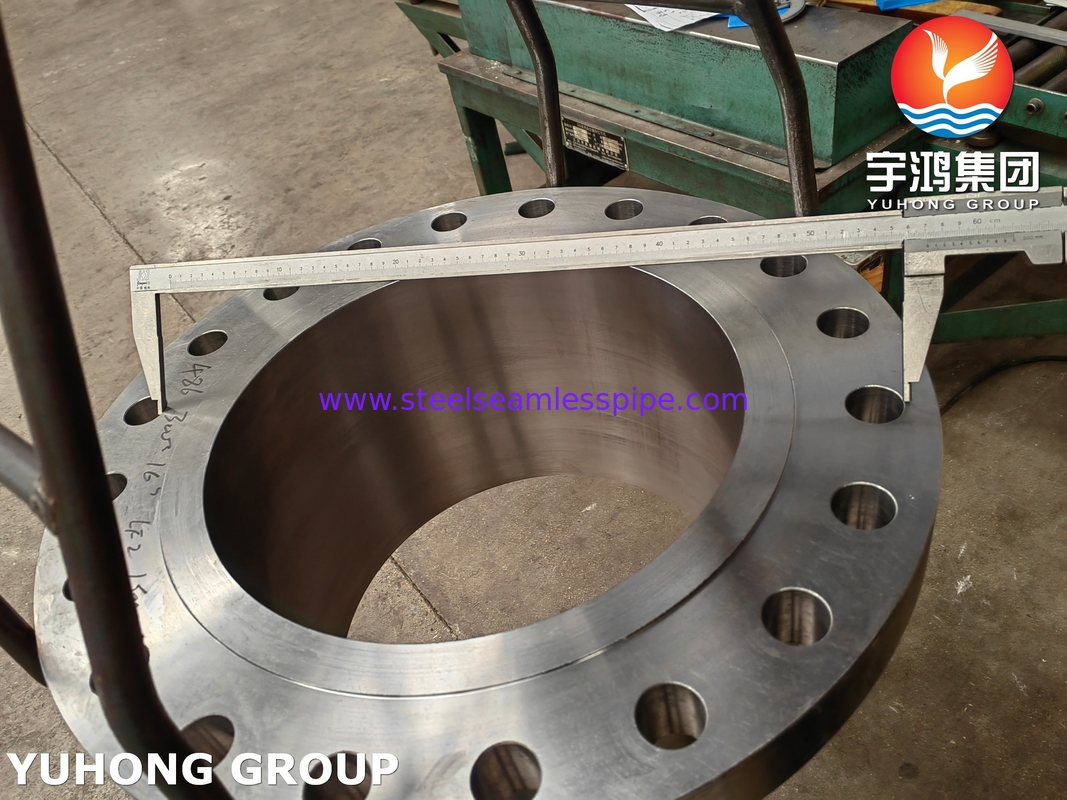

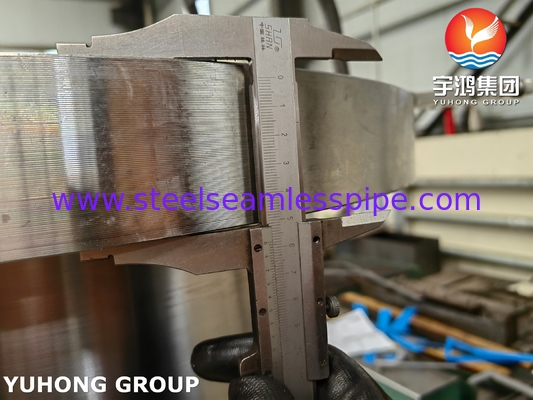

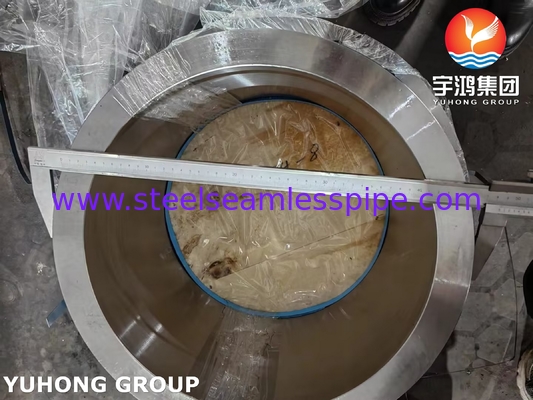

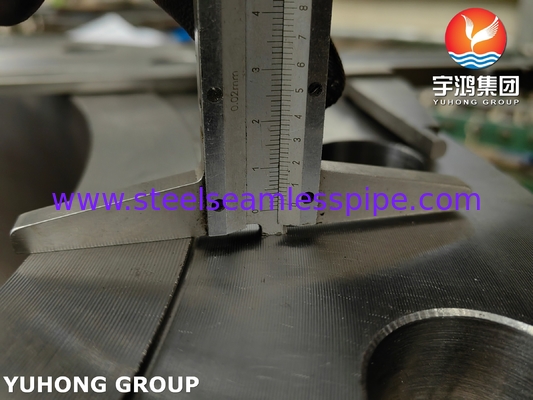

ASTM A350 LF2 Class 1 Alloy Steel Weld Neck Flange Low Temperature Forged Flange

ANSI / ASME B16.5 Forged Flange ASTM A350 Grade LF2 Alloy Steel Weld Neck Flange

The ASTM A350 LF2 flange is designed to maintain toughness and impact resistance which is suitable for low-temperature applications down to -50°F (-45°C) and also for higher temperatures. They are commonly used in oil and gas pipelines, chemical processing, and other industries where durability and resistance to low temperatures are essential.

Key Advantages of  ASTM A350 LF2 Alloy Steel Weld Neck Flange

• Low-Temperature Toughness: Reliable performance in cryogenic conditions.

• High Strength: Suitable for high-pressure systems.

• Corrosion Resistance: Optional treatments or coatings for harsh environments.

Differentiation from Similar Grades:

• LF2 vs. LF1: Higher manganese and optional nickel in LF2 improve low-temperature performance.

• LF2 vs. A105: A105 is for ambient temperatures, while LF2 is specialized for low temps.

Chemical Composition of ASTM A350 LF2 Alloy Steel Weld Neck Flange

Mechanical Properties of ASTM A350 LF2 Alloy Steel Weld Neck Flange

Available Flanges Grades

Manufacturing and Processing:

• Forging Process: Provides superior grain structure alignment, enhancing strength and fatigue resistance compared to casting.

• Heat Treatment: Typically normalized or quenched and tempered to achieve desired mechanical properties and stress relief.

Applications:

• Oil and Gas Industry: For piping systems in low-temperature environments, particularly in production and transport applications.
• Chemical Processing: Suitable for applications that involve low-temperature corrosive chemicals.
• Cryogenic Applications: Used in processes involving gaseous or liquid hydrocarbons at low temperatures, such as liquefied natural gas (LNG) facilities.
