Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626

Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626

  • Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626
  • Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626
  • Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626
  • Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626
Stainless Steel 304 316L High Precision Capillary Tubes For Medical Equipments ISO9626
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: EN ISO 13485:2016
Model Number: 10G-34G
Payment & Shipping Terms:
Minimum Order Quantity: 10 KGS
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 35-60 Days
Payment Terms: T/T, L/C
Supply Ability: According To Clients' Request
Contact Now
Detailed Product Description
Standard: ISO9626 Materials: SUS304, SUS316L
Sizes: 10G-34G Length: 2M Or As Per Client Required
Type: Welded, Seamless Surface: Bright Annealed
Technique: Cold Drawn Applications: Semiconductor, Medical Application, Precision Instruments, Aerospace Industry, Etc.
Highlight:

Medical Equipments Capillary Tubes

,

304 316L Capillary Tubes

,

High Precision Capillary Tubes

Stainless Steel 304 316L Capillary Tubes, High Precision Tubes For Medical Equipments ISO9626

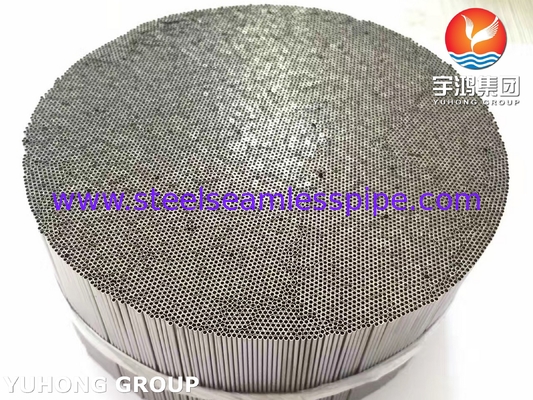

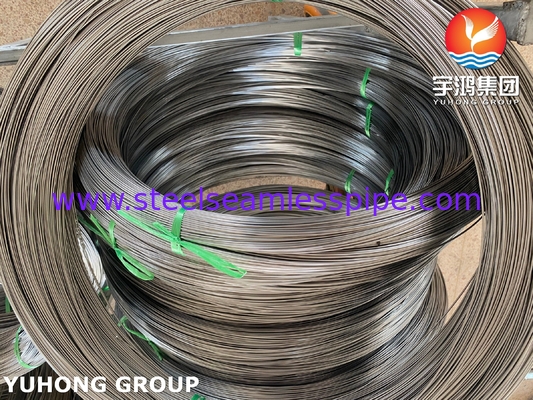

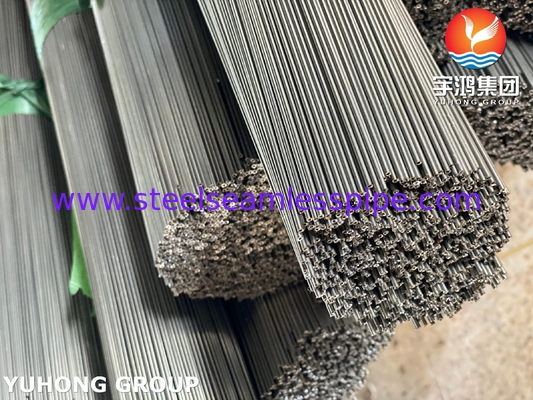

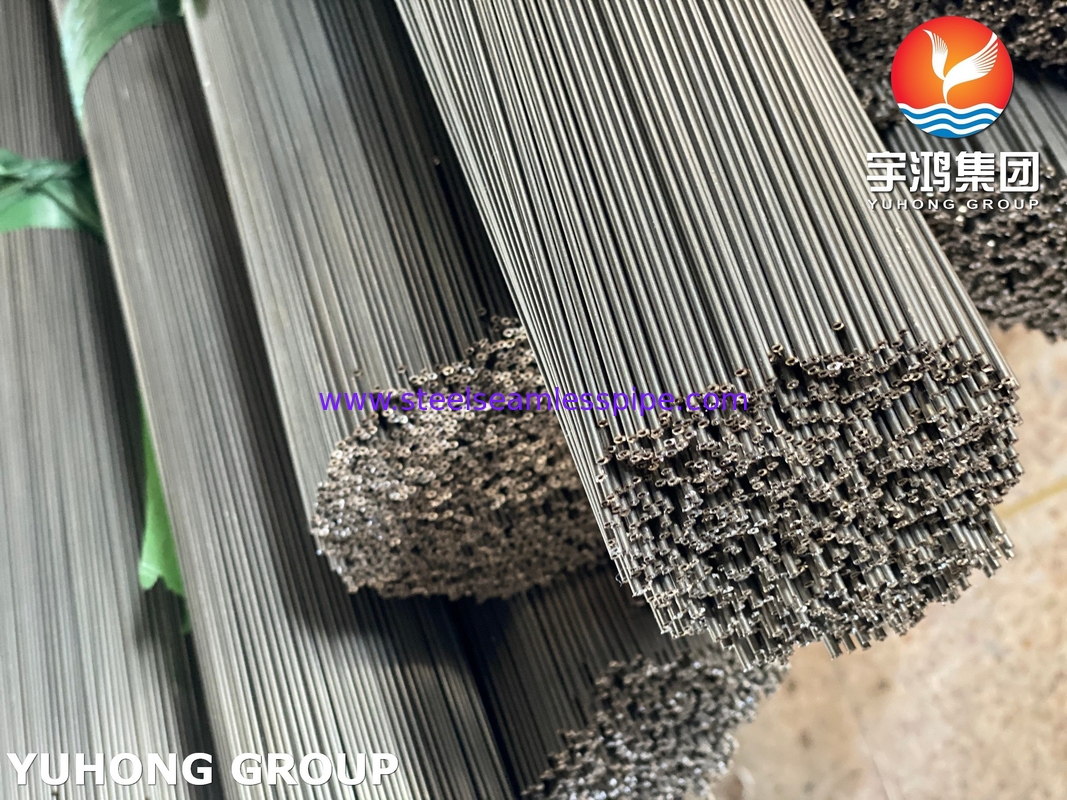

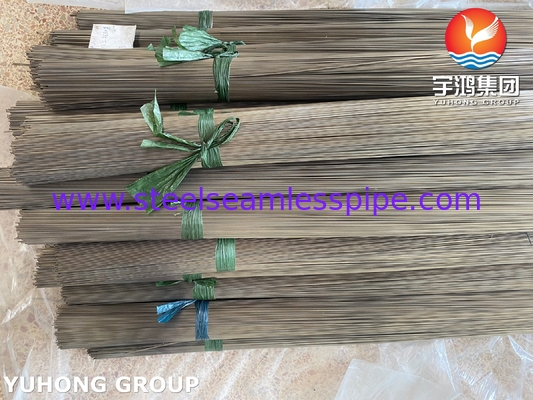

Stainless steel capillary tube is one of the most popular types of steel tubes. These high precision stainless steel capillary tubes can be welded or seamless tubes and they can be in straight or coil type. Stainless steel capillary tubes in small outer diameter sizes and precise thickness are available as per client's requirements. We generally cut the straight capillary tubes into 1.5 or 2meters. As for stainless steel capillary coil tubes, the length per coil can be cut according to client's request, like 30-200meters. Stainless steel medical capillary tubes are generally made by SS304 SS316L material grades, which are mostly used for medical devices, semiconductor, jewelry, precision instruments, aerospace,automatic instruments, and so on.



With more than 30 years' experience, YUHONG GROUP holds a leadership role in manufacturing and supplying high precision stainless steel capillary tubes. We have more than 10 production lines and we can supply medical stainless steel capillary tubes and semi-finished needles from 10G to 34G in medical grade with high quality. Our stainless steel capillary tubes and medical needles are widely used for medical instruments, laboratory apparatus, electronic equipments, semiconductors, etc.. We strictly control the dimension tolerance, cleanliness, quality of these capillary tubes. If you are interested in our stainless steel capillary tubes and needle tubes, just contact us to have a try.



Features Of YUHONG Capillary Tubes:

1. High Heat Tolerance
2. Ease of Cleaning
3. Durability
4. Sustainability
5. Excellent Corrosion Resistant
6. High Precision
7. Strict Size Tolerance
8. Smooth Surface
9. Good Cleanliness
10. Great Toughness



Size Chart Of Stainless Steel Capillay Tubes And Semi-finished Needles:

OD(MM) OD Range ID(MM)
Gauge Norminal Min. Max. RW TW ETW
        Min. Min. Min.
34G 0.18 0.178 0.191 0.064 0.091 0.105
33G 0.2 0.203 0.216 0.089 0.105 0.125
32G 0.23 0.229 0.241 0.089 0.105 0.125
31G 0.25 0.254 0.267 0.114 0.125 0.146
30G 0.30 0.298 0.320 0.133 0.165 0.190
29G 0.33 0.324 0.351 0.133 0.190 0.240
28G 0.36 0.349 0.370 0.133 0.190 -
27G 0.40 0.400 0.420 0.184 0.241 -
26G 0.45 0.440 0.470 0.232 0.292 -
25G 0.50 0.500 0.530 0.232 0.292 -
24G 0.55 0.550 0.580 0.280 0.343 -
23G 0.60 0.600 0.673 0.317 0.370 0.460
22G 0.70 0.698 0.730 0.390 0.440 0.522
21G 0.80 0.800 0.830 0.490 0.547 0.610
20G 0.90 0.860 0.920 0.560 0.635 0.687
19G 1.10 1.030 1.100 0.648 0.750 0.850
18G 1.20 1.200 1.300 0.790 0.910 1.041
17G 1.40 1.400 1.510 0.950 1.156 1.244
16G 1.60 1.600 1.690 1.100 1.283 1.390
15G 1.80 1.750 1.900 1.300 1.460 1.560
14G 2.10 1.950 2.150 1.500 1.600 1.727
13G 2.40 2.300 2.500 1.700 1.956 -
12G 2.70 2.650 2.850 1.950 2.235 -
11G 3.00 2.950 3.150 2.200 2.464 -
10G 3.40 3.300 3.500 2.500 2.819 -



Applications Of Medical Capillary Tubes:

  • Medical Device Industry
  • Precision Engineering
  • Automotive Industry
  • Food and Beverage Industry
  • Pharmaceutical Industry
  • Jewelry
  • Electronic Industry
  • Watches
  • Semiconductor
  • Aerospace Industry
  • Nuclear Reactors
  • Chromatography
  • Thermal Conductivity Temperature Control Device
