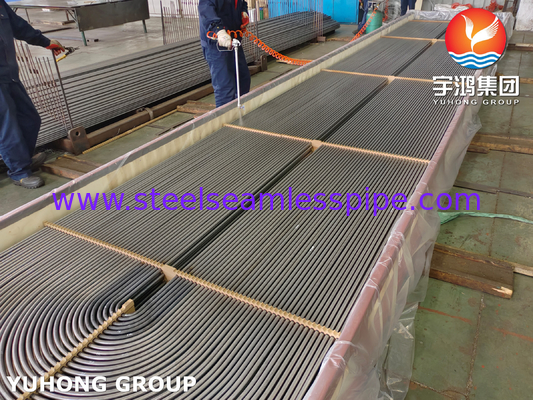

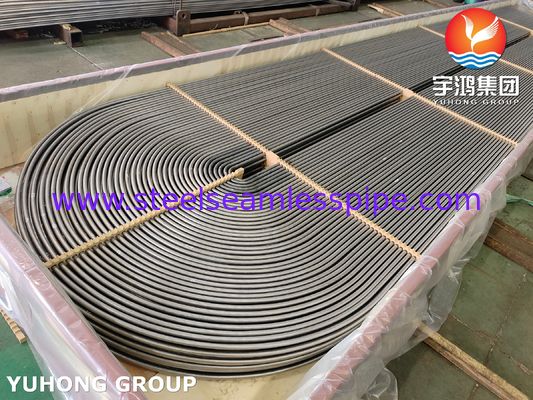

ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers

ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers

  • ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers
  • ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers
  • ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers
  • ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers
ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers
Product Details:
Place of Origin: China
Brand Name: Yuhong boiler tube
Certification: ASME, ASTM, ASME U Stamp
Model Number: TUBE BUNDLE
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: 0- 1000000USD
Packaging Details: Wooden export crates
Delivery Time: 20- 80 days
Payment Terms: T/T, L/C, D/A
Supply Ability: 15 SETS/MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Standard: ASME SA179 O.D.: 12.7-38MM
Thickness: BWG Radius: 1.5 X OD To 1700mm
Ovality: ≤10% Test: ET, UT, HT, PT Etc..
Bend: Cold Bend
Highlight:

ASME SA179 U Bend Tube

,

ASME SA179 carbon steel seamless tube

,

U Bend seamless carbon steel pipe

ASME SA179 Seamless cold drawn carbon steel boiler and superheater tubing



YH specialises in offering high quality Carbon Steel SA179 Tubes, known for its excellent tensile and yield strengths.The unparalleled properties of SA179 grade include excellent resistance to corrosion, oxidation, pitting, acids and crevice corrosion, ensuring outstanding performance in a wide range of applications.



We will attach great importance on ovality this article.

ASTM A179 Tube Sizes



OD (mm)
WT (mm)
OD (mm)
WT (mm)
OD (mm)
WT (mm)
6.35 0.91 19.05 3.404 31.75 2.769
9.53 1.22 20 2 31.75 3.7
12.7 1.22 20 2.2 32 X 22 3.404
12.7 1.245 25 2 36 X 14 1.8
12.7 1.65 25 2.77 38 2.77
15.875 1.245 25.4 1.6 38 3.2
15.875 1.65 25.4 1.651 38.1 2.41
15.875 1.651 25.4 2 38.1 2.769
15.875 2.108 25.4 2.108 38.1 2.9
15.875 2.413 25.4 2.11 38.1 3.05
15.88 1.65 25.4 2.41 38.1 3.403
16 1.2 25.4 2.7 40 1.5
16 2 25.4 2.76 44.45 2.1
19.05 1.22 25.4 2.769 50.8 2.413
19.05 1.651 25.4 2.77 50.8 3.05
19.05 2 25.4 3.048 50.8 3.404
19.05 2.1 25.4 3.15 57.15 3.048
19.05 2.108 25.4 3.4 60.3 2
19.05 2.11 31.75 2.108 63.5 3.76
19.05 2.64 31.75 2.11 63.5 8

Ovality



Ovality equal to Maximum diameter cut minumum diameter and divide nominal diameter, please check below formul,

Ovality (%) = (Dmax - Dmin) / Dnominal x 100

  • Dmax: Maximum diameter of the pipe

  • Dmin: Minimum diameter of the pipe

  • Dnominal: Nominal diameter of the pipe

Noted, If client requires a "ball-passing test", factory should prepare the ball.



Contact us, and we will provide the yuhong documents for u tube bending inspection record for your reference.

Heat Exchanger



Heat exchanger tube using tooling for cold bending, cold bending forming process to meet the Sufficient size tolerance requirements. After passing the test, the bending section and straight section of at least 150 mm range(150mm+150mm) of stress relief heat treatment according to the standard. After heat treatment, and then one by one hydraulic test.

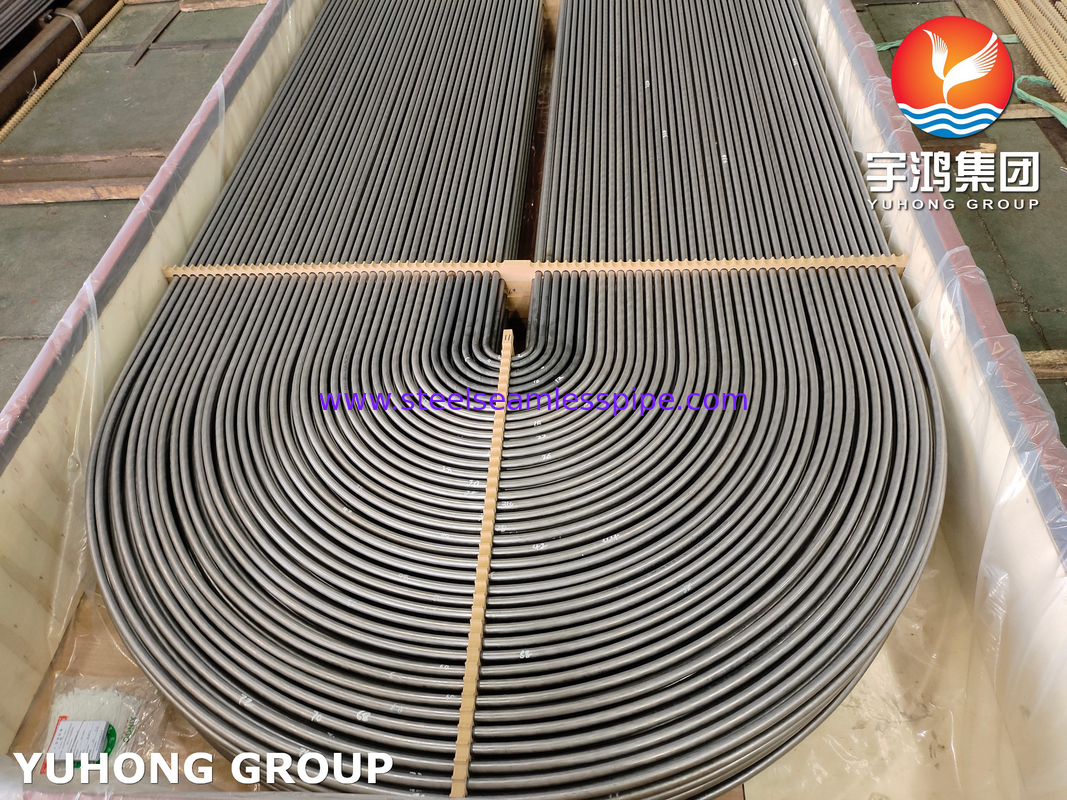

ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers 0

Application



For manufacture wall panel, economizer, reheater, superheater and steam pipeline of boilers.

  • ASTM A178/A178M Standard Specification for Electric-Resistance-Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater Tubes.

  • ASME SA179 Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes.

  • ASTM A334/A334M Standard Specification for Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature Service.

  • ASTM A556/A556M Standard Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes.

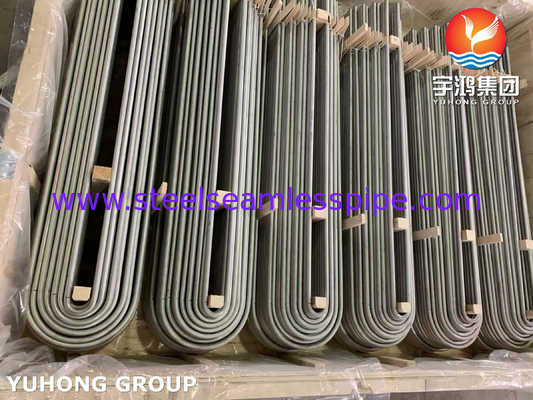

ASME SA179 U Bend Seamless Cold Drawn Carbon Steel Tube For Tubular Heat Exchangers 1
