304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications

304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications

  • 304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications
  • 304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications
  • 304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications
  • 304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications
304L Stainless Steel Seamless U Bend Tubes ASME SA213 TP304L Heat Exchanger Applications
Product Details:
Place of Origin: China,Korea
Brand Name: YUHONG
Certification: ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number: ASME SA213
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: 1--10000 USD
Packaging Details: Ply wooden case / Pallet
Delivery Time: 5---75 days
Payment Terms: L/C, T/T
Supply Ability: 10000 tons/month
Contact Now
Detailed Product Description
Stainless Steel Seamless Tube Standard: ASME SA213 Stainless Steel Seamless Tube Grade: TP304L
Tube Type: U Bend Thickness: 1.65mm(average Wall Thickness)
Surface: Pickled And Annealed Test: Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Penetration Test
Ovality: ≤10% High Light: 304L U Bend Tube
Highlight:

304L Stainless Steel Seamless Tube

,

Heat Exchanger Stainless Steel Seamless Tube

,

ASME SA213 Stainless Steel Seamless Tube

304L Stainless Steel Seamless U-Bend Tubes ASME SA213 TP304L Heat Exchanger Applications



Yuhong Group, with over 20 years of export experience and a presence in more than 80 countries, is proud to introduce its premium Stainless Steel Seamless U-Bend Tubes. As one of the top five exporters of heat exchanger tubes in China, we specialize in delivering high-quality products to meet the stringent demands of global industries.



Our ASME SA213 TP304L Seamless U-Bend Tubes are designed to meet the highest standards of precision and reliability, ensuring optimal performance in heat exchanger applications. With state-of-the-art manufacturing and strict quality control, our U-Bend tubes offer exceptional durability, corrosion resistance, and dimensional accuracy.


Key Features of TP304L Stainless Steel



Property 304L Stainless Steel
Corrosion Resistance Outstanding resistance to oxidation, pitting, and general corrosion in a wide range of environments, including marine and chemical industries.
Low Carbon Content The "L" in 304L stands for "Low Carbon," which minimizes carbide precipitation during welding, ensuring excellent intergranular corrosion resistance.
High Tensile Strength Offers a tensile strength of up to 485 MPa, making it ideal for high-pressure environments.
Thermal Conductivity Excellent thermal conductivity, enhancing heat exchanger performance.

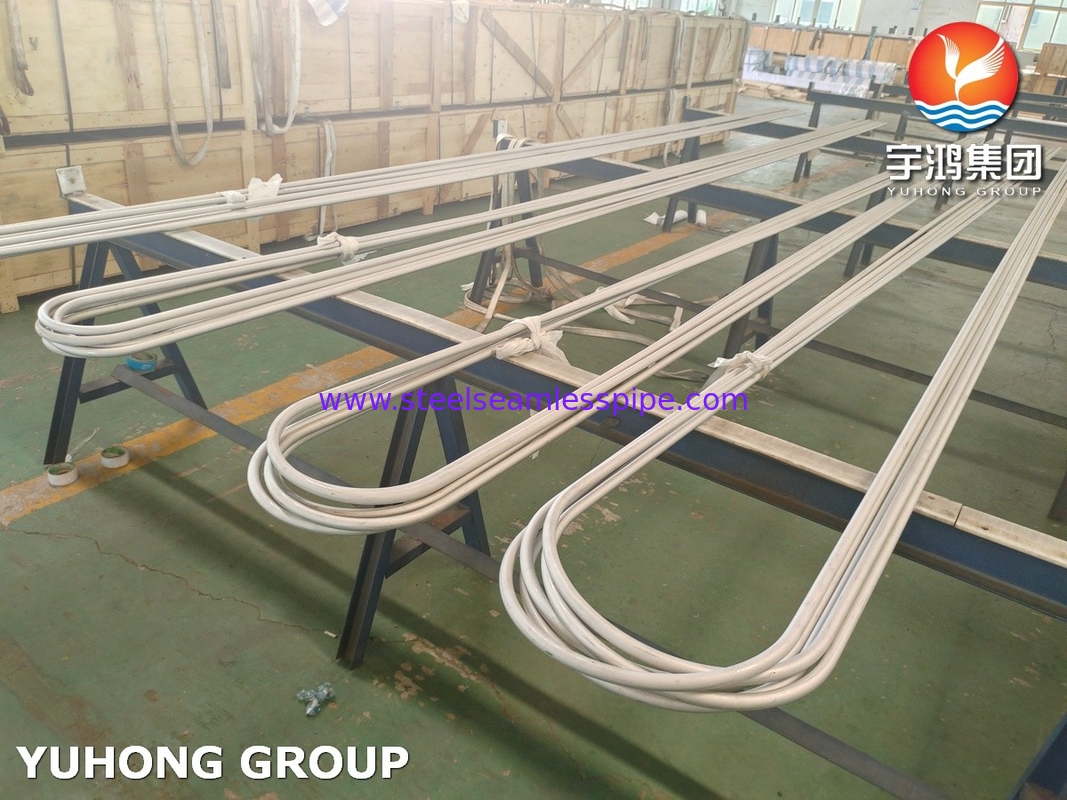

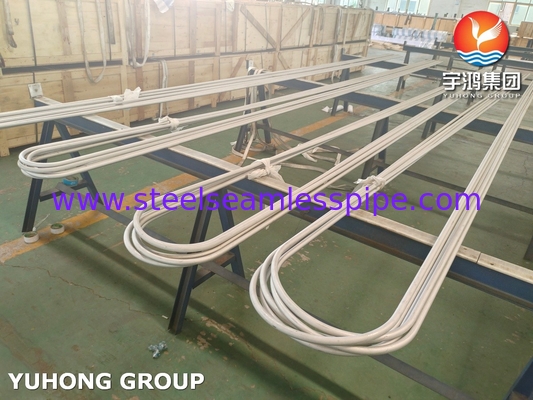

Precision Manufacturing of U-Bend Tubes



Our U-Bend Tubes are manufactured with strict adherence to ASME SA213 standards, ensuring superior quality and consistency. The bending process is carefully controlled to maintain tight radius tolerances and prevent material defects.

  • Radius Tolerance:
    The bending radius (R) of our U-Bend tubes ranges from 200mm to 400mm, with a tolerance of ±1mm-2mm.

  • Heat Treatment After Bending:
    After bending, all tubes undergo stress-relief annealing heat treatment to restore their mechanical properties and ensure structural integrity. This process eliminates residual stresses caused by bending, improving the tube's resistance to cracking and deformation under high-temperature and high-pressure conditions.


Applications of U-Bend Tubes



Our 304L Stainless Steel U-Bend Tubes are widely used in heat exchangers and other critical applications across various industries:

  1. Heat Exchangers:

    • Power generation plants (nuclear, thermal, and hydro)
    • Petrochemical and chemical processing industries
    • Oil and gas refineries
  2. Condensers and Boilers:

    • Ideal for use in high-temperature and high-pressure settings.
  3. Desalination Plants:

    • Excellent corrosion resistance makes them suitable for marine environments.
  4. HVAC Systems:

    • Used in heating, ventilation, and air conditioning systems for efficient thermal transfer.
  5. Pharmaceutical and Food Industries:

    • Ensures hygienic and efficient heat exchange in processing equipment.



If you’re interested in our 304L Stainless Steel U-Bend Tubes, get in touch with us today for a free quote or consultation. Let’s work together to optimize your heat exchanger performance!
