Yuhong Holding Group Co.,LTD
| Place of Origin: | China, Korea |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS |
| Model Number: | ASTM A213 TP304 Stainless Steel Seamless Tube |
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600 Tons/ month |
| Standard: | ASTM A213 | Material: | TP304 |
|---|---|---|---|
| Shape: | Round Pipe | NDT: | Eddy Current Or Hydraulic Test |
| Technique: | Cold Rolled Hot Rolled | Processing Service: | Bending Welding, Decoiling, Punching, Cutting, Moulding |
| Application: | Food Processing Equipment, Chemical Processing Equipment, Architectural Components Automotive Systems, Heat Exchangers | ||
| Highlight: | 3000MM Stainless Steel Seamless Tube,ASTM A213 Stainless Steel Seamless Tube,Food Industry Stainless Steel Seamless Tube |
||

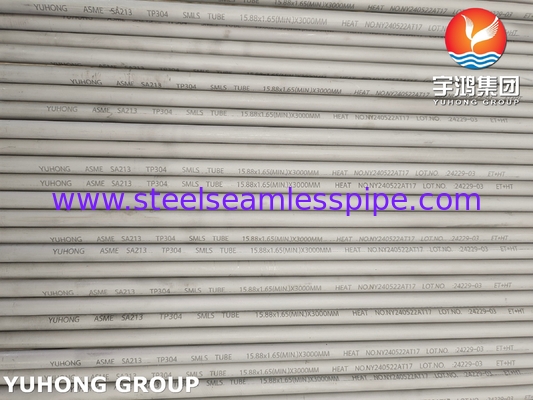

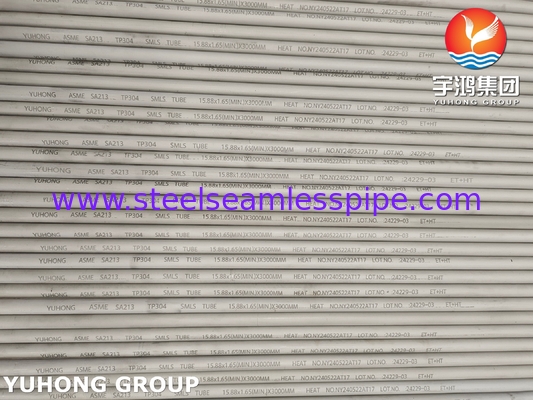

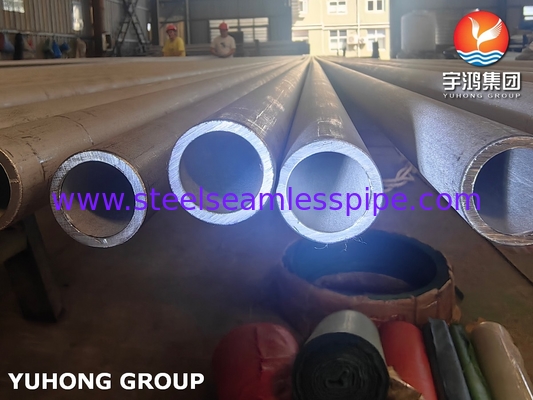

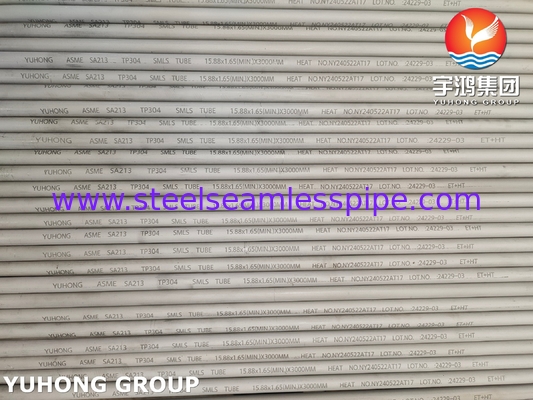

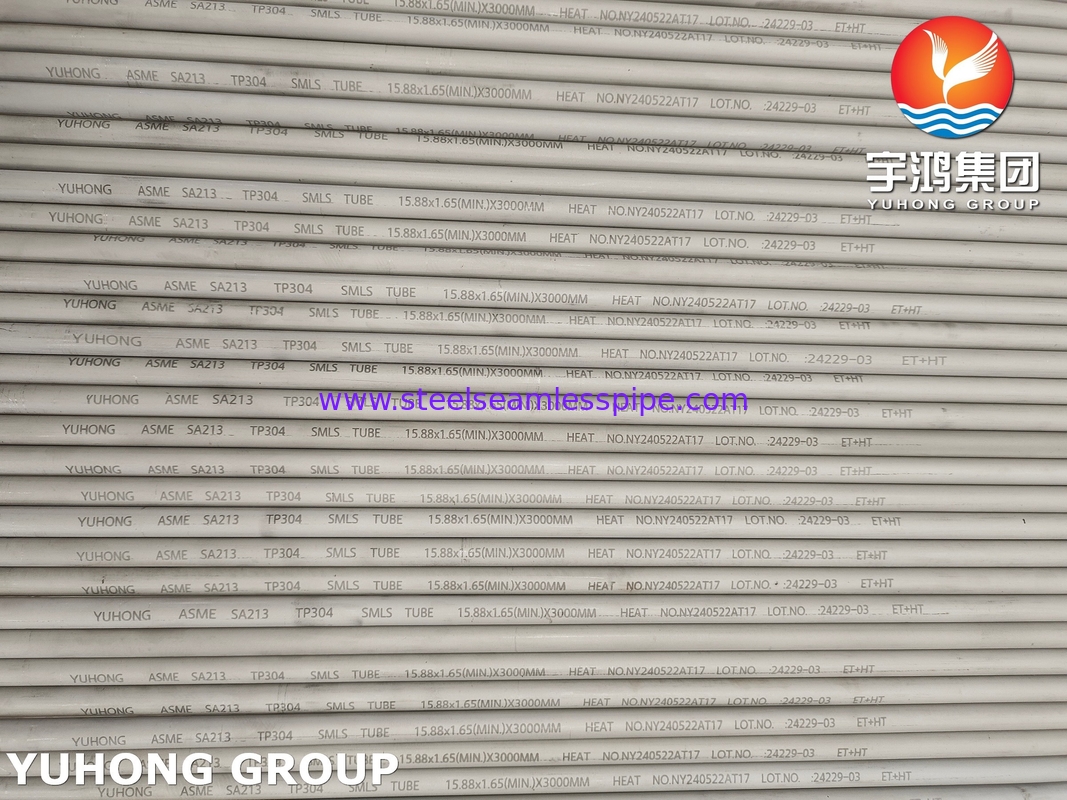

3000MM TP304 Stainless Steel Seamless Tube ASTM A213 for Food Industry
YUHONG 304 Stainless Steel Seamless Tube is widely used in chemical, food, pharmaceutical and other industries for its excellent corrosion resistance and strength. Its composition is mainly chromium and nickel, which ensures good resistance to high temperature and oxidation. Through the seamless machining process, the internal and external surfaces of 304 stainless steel pipe are smooth, which reduces the possibility of harboring bacteria and is easy to clean. In addition, 304 stainless steel seamless pipe has stable performance in terms of pressure and levelness, which makes it an indispensable and important material in modern industry.
A312 TP304 Chemical Composition
| SS GRADE | 304 | 304N | 304LN |
| Ni | 8 – 11 | 8 – 11 | 8 – 11 |
| Fe | Balance | ||
| Cr | 18 – 20 | 18 – 20 | 18 – 20 |
| C | 0.08 max | 0.08 max | 0.035 max |
| Si | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max |
| P | 0.040 max | 0.040 max | 0.040 max |
| S | 0.030 max | 0.030 max | 0.030 max |
| N | 0.10 – 0.16 | 0.10 – 0.16 | |
A312 TP304 Mechanical Properties
| Stainless Steel Gr. | 304 |
| Rockwell B (HR B) maximum | 92 |
| Brinell (HB) maximum | 201 |
| Tensile Strength minimum (MPa) | 515 |
| Yield Strength 0.2% Proof minimum (MPa) | 205 |
| Elongation minimum (% in 50mm) | 40 |
| Hardness | - |
SA 312 TP 304 Equivalent
| GRADE | UNDER | ASTM A312 TP 304 |
| UNS | USA | S30400 |
| EN | EUROPE | X5CrNi18-10 |
| JIS | JAPAN | SUS 304 |
| AFNOR | RUSSIAN | Z7CN18‐09 |
| BS | BRITISH | 304S31 |
| WERKSTOFF NR. | GERMAN | 1.4301 |
| GOST | RUSSIAN | 08Х18Н10 |
| SS | SWEDISH | 2332 |
Here are 3000MM length applications:
![]()
