ASTM A105 Carbon Steel Fitting MSS-SP- 97 Sockolet For Oil And Gas

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASME SA105 A105

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	1000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Specification:

ASTM A105, ASME SA105

Grade:

A105

Pressure:

Class 3000, Class 6000

Size:

1/4" NPS TO 48"NPS

Highlight:

ASTM A105 Carbon Steel Fitting

MSS-SP- 97 Carbon Steel Fitting

Oil And Gas Carbon Steel Fitting

ASTM A105 Carbon Steel Fitting MSS-SP- 97 Sockolet For Oil And Gas

What is MSS SP-97?

The MSS SP-97 standard defines the design, size, materials, and pressure ratings of integrally reinforced branch outlet fittings, including welded, sleeved, and threaded pipe. These fittings provide branch connections on piping systems and are an integral part of establishing safe, reliable connections. By specifying reinforcement requirements, MSS SP-97 helps ensure that branch outlets can withstand the pressure of high-pressure environments without the need for additional reinforcement.

Carbon Steel Sockolet Weight In Class 3000

DN	3000LB
6	0.05
8	0.05
10	0.09
15	0.14
20	0.16
25	0.27
32	0.39
40	45
50	0.73
65	125
80	1.72
90	1.95
100	3.29

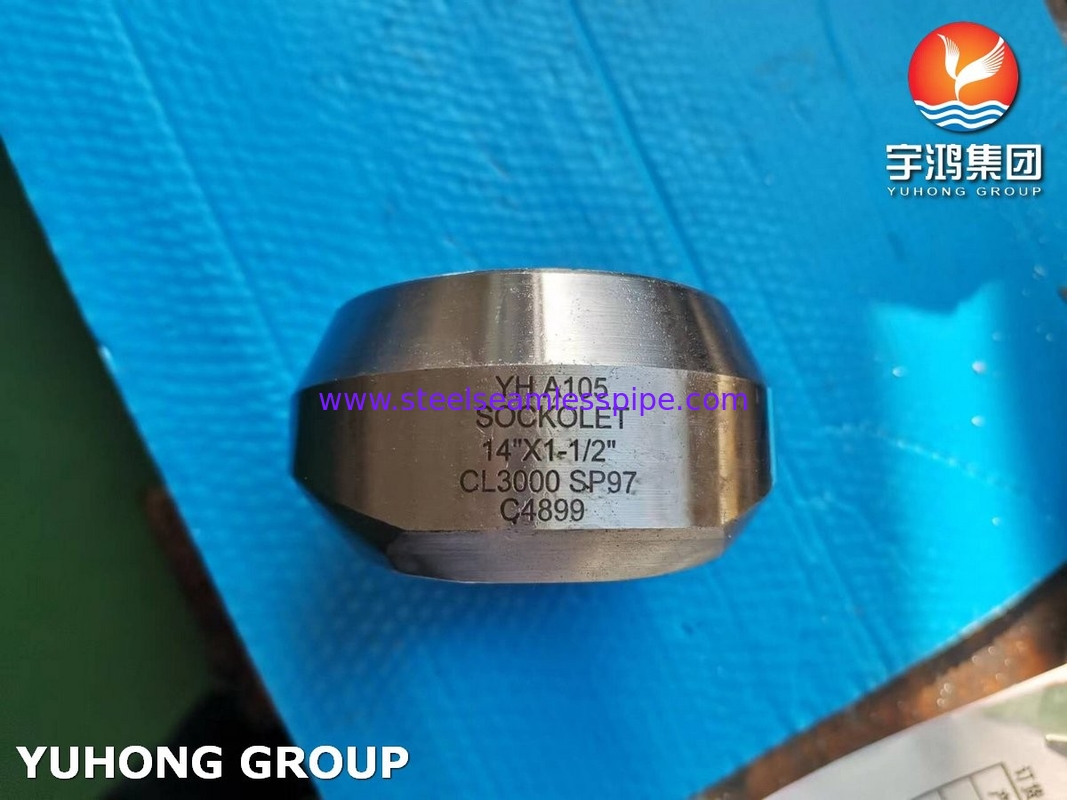

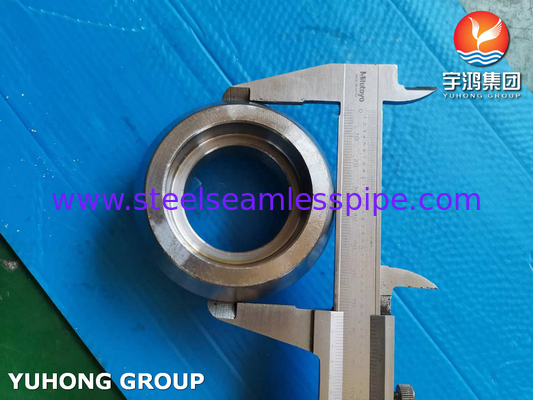

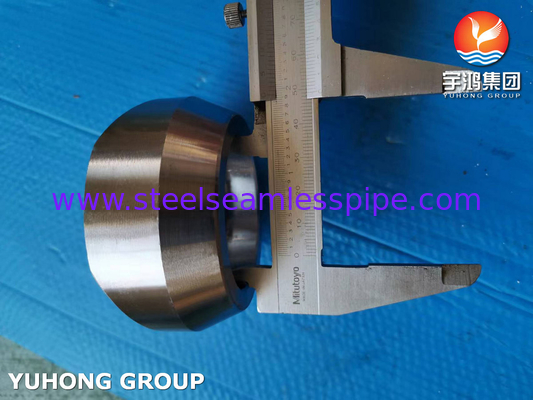

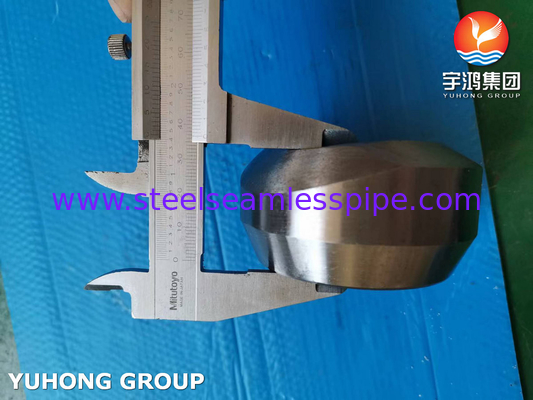

ASTM A105 Carbon Steel Fitting MSS-SP- 97 Sockolet For Oil And Gas 0

ASTM A105 Carbon Steel Fitting MSS-SP- 97 Sockolet For Oil And Gas 1

Benefits of using MSS SP-97 fittings

-Enhanced safety: Provides a reinforced connection, reducing the risk of leaks and failures.

-Versatility: Suitable for use with a wide range of materials, including carbon, alloy and stainless steel.

-Easy to install: Available in threaded, socket weld and butt weld configurations for installation flexibility.

-Durability: Manufactured to withstand high pressure and temperature conditions, ensuring durability.

Chemical Composition:

Chemical Composition of A105
Elements	Composition, %
Carbon [C]	≤0.35
Manganese [Mn]	0.60-1.05
Phosphorus [P]	≤0.35
Sulfur [S]	≤0.40
Silicon [Si]	0.10-0.35
Copper [Cu]	≤0.40
Nickel [Ni]	≤0.40
Chromium [Cr]	≤0.30
Molybdenum [Mo]	≤0.12
Vanadium [V]	≤0.08

A105 Physical Properties:

Density (lb / cu. in.)	0.284
Specific Gravity	7.9
Thermal Conductivity	360
Mean Coeff Thermal Expansion	6.7
Modulus of Elasticity Tension	30
Specific Heat (Btu/lb/Deg F - [32-212 Deg F])	0.107
Melting Point (Deg F)	2740
Modulus of Elasticity Torsion	11
