ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube

ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube

  • ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube
  • ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube
  • ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube
  • ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube
ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTB111 ASME111 C12200
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (286)
Stainless Steel Seamless Tube (275)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (102)
Fin Tube (619)
Heat Exchanger (16)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (78)
Copper Alloy Tube (222)
Alloy Steel Tube (182)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (141)
Steel Fitting (797)
Steel Flange (583)
Others (388)
Cladding Parts (7)
Detailed Product Description
Name: Aluminum Brass Tube Standard: ASTM B111 / ASME SB111
Material: C12200 Type Of Productis: Seamless Tube
TPI: BV, SGS, IEI, MOODY, DUV.... NDT: ET / HT
Highlight:

C12200 TP 2 Seamless Tube

,

ASTM B111 Seamless Tube

,

ASME SB111 Seamless Tube

ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube



Description



Copper tube is a pipe made of pure copper (copper). It has good electrical conductivity, thermal conductivity and corrosion resistance, and is often used in construction, chemical industry, power and other fields. Copper tubes can be divided into two categories: welded copper tubes and seamless copper tubes. Welded copper tubes are manufactured by welding, while seamless copper tubes are directly formed by extrusion or stretching at high temperature.



Copper C12200 Tubes Chemical Composition

Grade Cu Ph
C12200 Includes Ag 0.015 - 0.04

Copper C12200 Tubes Mechanical Properties

Density (lb / cu. in.) Electrical Resistivity (microhm-cm (at 68 Deg F)) Mean Coeff Thermal Expansion Modulus of Elasticity Tension
0.323 12.2 9.4 17000





Grade USA U.K Germany Japan
China BG ASTM BS DIN JIS H
T 2 C11000 C101 / C102 E-Cu58 C1100
TP 2 C12200 C106 SF-Cu C1220




Type of product Grade(s) Technical requirements
according to
Copper tube/ pipe UNS C12200 ASTM B111, ASME SB111
ASTM B135, ASME SB135
ASTM B251, ASME SB251
BS EN 1057 or closer
Brass tube/pipe UNS C23000, UNS C26200 ...
UNS C44300, UNS C68700 ...
Cupronickel tube/pipe UNS C70600, UNS C71500
UNS C71640




Application



1. Air conditioning and refrigeration systems: due to its good thermal conductivity.

2. Chemical industry: due to its excellent corrosion resistance.

3. Electrical engineering: using its excellent electrical conductivity.

4. Crafts production: due to its unique color and plasticity.

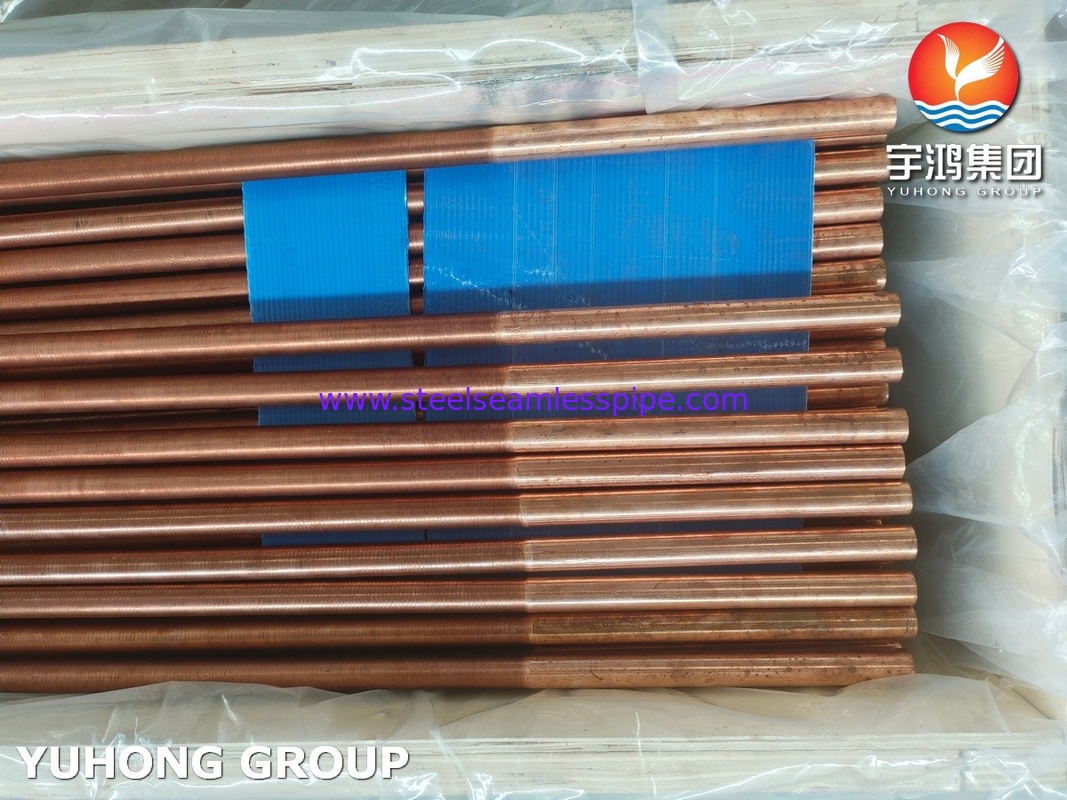

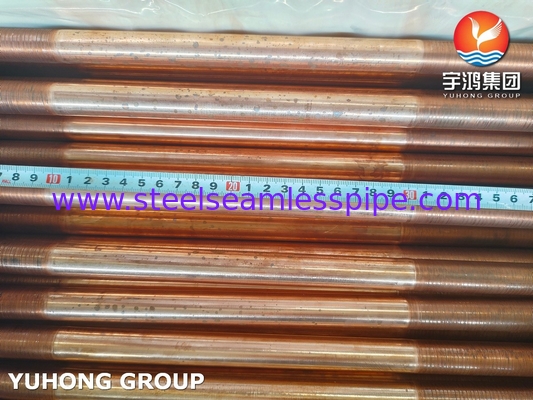

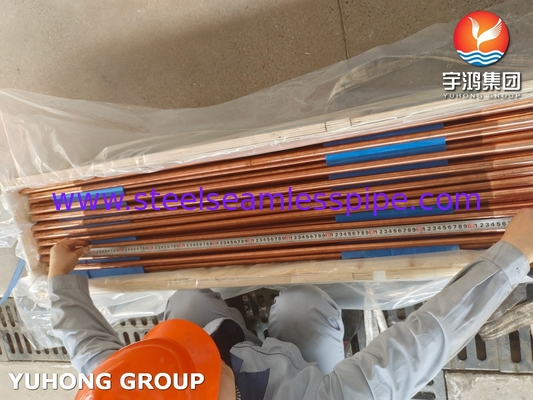

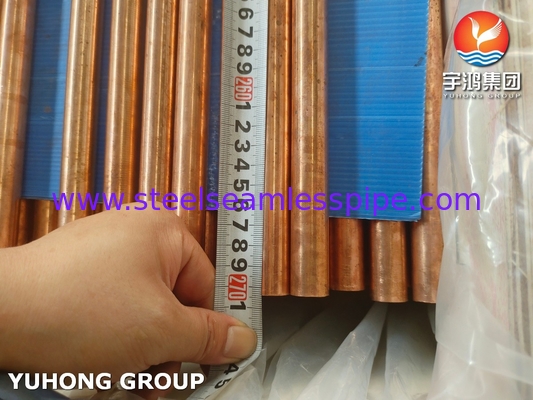

ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube 0



ASTM B111 ASME SB111 C12200 TP 2 Seamless Tube 1
