ASTM A182 F304L Stainless Steel Flange ASME B16.5 Forged Blind Flange BLRF

ASTM A182 Stainless Steel 304L / UNS S30403 / 1.4306 Blind RF Flange

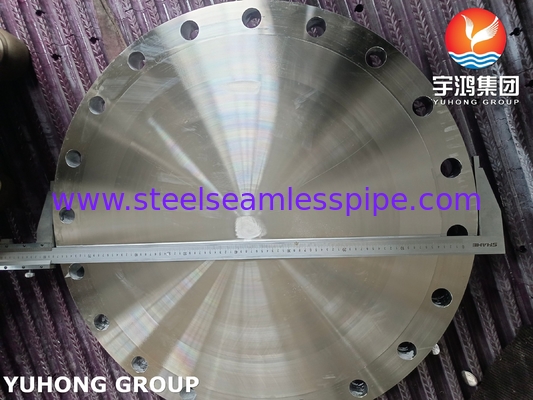

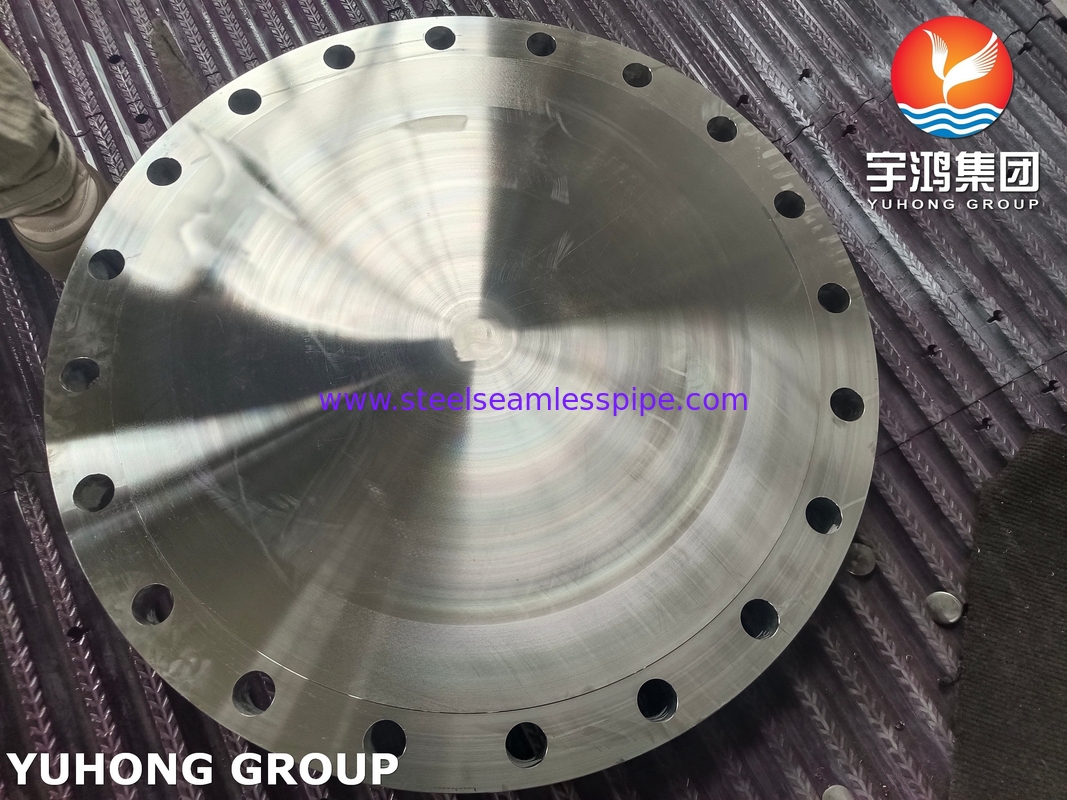

ASTM A182 F304L stainless steel Blind Flange is a solid disk used to seal the end of a pipe or a vessel, preventing the flow of material through the pipe. It’s called “blind” because it has no bore or hole in the center. For more information, please refer to the below:

• Design: It has a circular plate shape and can come in different pressure ratings (e.g., 150, 300, 600, etc.).
• Dimensions: Available in various sizes, typically following standardized dimensions as per ASME, DIN, or other relevant codes.
• Thickness: Varies depending on the pressure class and size, with thicker designs for higher pressure applications.
• Bolt Holes: Usually have bolt holes for securing the flange to the pipe or vessel.
• Function: 1>. Sealing Purpose: Used to block the flow of liquids, gases, or any process medium in pipelines.                                                       2>. Pressure Containment: It helps maintain the pressure within the system, acting as a barrier.                                                             3>. Inspection/Modification: Often used in situations where a system might need to be closed temporarily and then                                     opened again in the future, such as during maintenance or inspection.

Equivalent Grades of ASTM A182 F304L Stainless Steel Blind Flange

ASTM A182 F304L Stainless Steel Blind Flange

Chemical Composition of ASTM A182 F304L Stainless Steel Flange

Mechanical Properties of ASTM A182 F304L Stainless Steel Flange

Advantages of A182 F304L Blind Flange

• Corrosion Resistance: Offers good resistance to a wide range of chemicals, making it suitable for aggressive environments.
• Durability: It is resistant to oxidation and scaling at high temperatures, ensuring a long service life.
• Weldability: The lower carbon content of F304L stainless steel improves its weldability, reducing the risk of sensitization (formation of chromium carbides that weaken the material).
• Ease of Fabrication: It can be easily fabricated and formed for use in various industries.

Application
