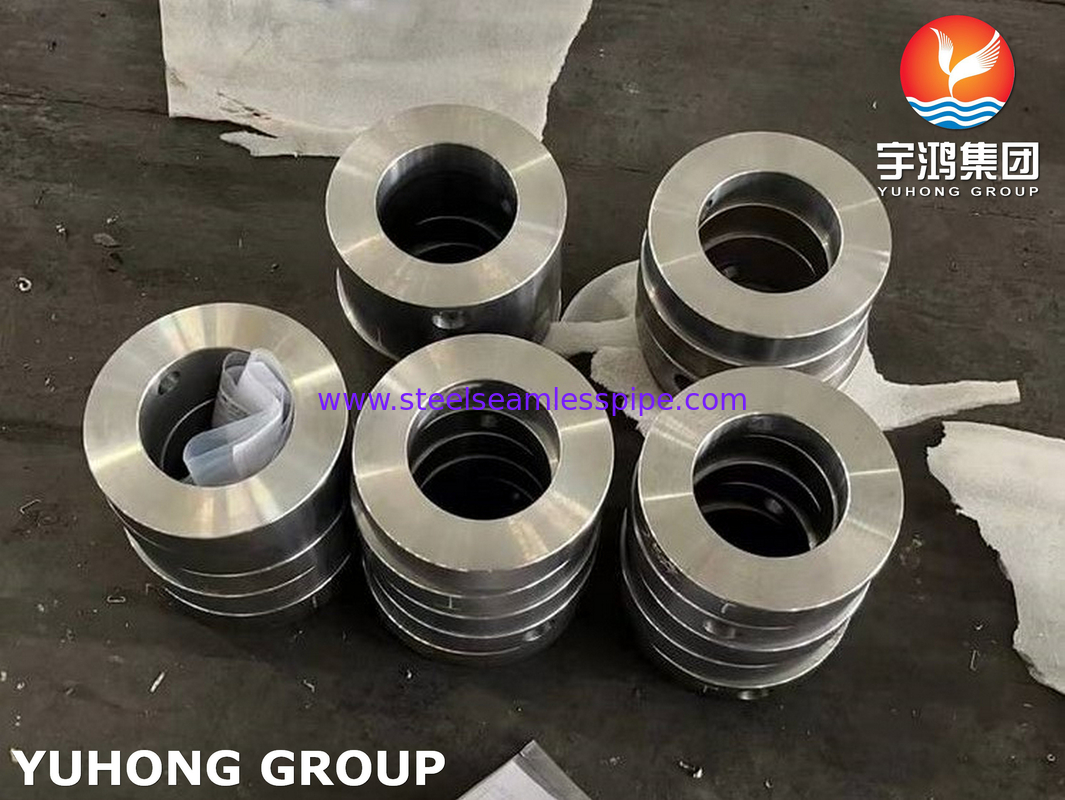

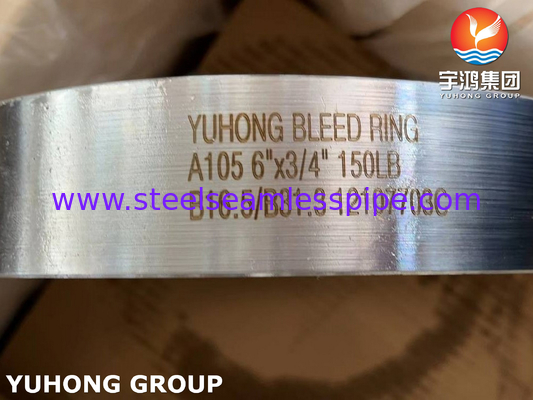

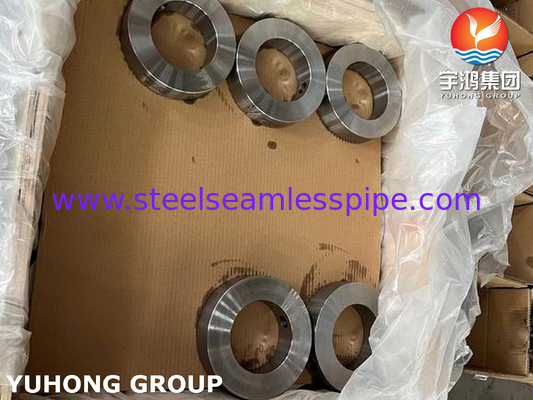

Bleed Ring ASME SA105 Carbon Steel Flange B16.5 For Food Processing

 Bleed Ring, ASME SA105, Carbon Steel Flange,B16.5 For Food Processing

1. Material Properties of ASME SA105 and Carbon Steel Flange B16.5

2. Function of Bleed Rings in Food Processing

A Bleed Ring is used in piping systems to remove or bleed off unwanted fluids, gases, or other contaminants from the system, often for safety or maintenance purposes. In the food processing industry, this could be important in applications where:

• Pressure relief is necessary to prevent over-pressurization in processing equipment (e.g., pressure vessels, pumps).
• Contaminant removal ensures that only safe, clean fluid is circulated in the system.
• System testing and maintenance require the ability to drain or evacuate parts of the piping system without affecting the overall operation.

In food processing, bleed rings might be integrated into systems like:

• Pasteurization equipment
• Heat exchangers
• Cooking and sterilization systems

3. Advantages of ASME SA105 Carbon Steel and B16.5 Flange for Food Processing

Advantages of ASME SA105 Carbon Steel (Bleed Ring):

• Strength and Durability:
  SA105 carbon steel offers good tensile strength and is suitable for moderate pressure systems. It ensures the bleed ring can handle the pressure conditions typically found in food processing systems.

• Cost-Effectiveness:
  Compared to stainless steel, carbon steel like ASME SA105 is more affordable, making it a cost-effective solution for food processing equipment where stainless steel may not be required by code or for the desired function.

• Formability and Machinability:
  SA105 carbon steel is easily machined and fabricated, allowing for custom sizes or complex designs that may be required in food processing systems.

• Weldability:
  ASME SA105 is compatible with most welding processes, ensuring a strong, durable connection to other components of the piping system.

Advantages of Carbon Steel Flange B16.5:

• Widely Used and Standardized Design:
  The B16.5 flanges are part of a well-established flange standard, meaning they are commonly available, compatible with many piping systems, and easy to source.

• Strength and Reliability:
  These flanges provide a reliable, strong connection for piping systems, which is especially important when dealing with higher pressure applications, typical in food processing equipment.

• Cost-Effective:
  Carbon steel flanges are less expensive than their stainless steel counterparts, offering a good balance of strength and cost-effectiveness.

• Compatibility with Other Materials:
  B16.5 flanges can be used with a variety of piping materials, ensuring versatility in food processing systems. They are also available in different pressure ratings and sizes to suit various needs.

4. Applications of Bleed Ring and Flange in Food Processing

• Pressure Relief and Control:
  In food processing systems, such as pasteurizers, sterilizers, or autoclaves, the bleed ring is used to relieve excess pressure and maintain safety. This prevents damage to the equipment and ensures that the system operates within safe limits.

• Cleaning and Sanitation:
  During cleaning or sterilization cycles (e.g., CIP – Clean in Place), the bleed ring allows for the removal of residual liquids or gases from the system. For food-grade processes, ensuring proper cleaning and eliminating the possibility of contamination is critical.

• Piping Systems for Fluid Movement:
  The flanges are used to securely connect sections of piping that transport fluids such as oils, sauces, juices, or other food products through the system. Ensuring a tight, leak-free connection is vital for food safety.

• Vacuum Systems:
  In some food processing operations, particularly in packaging, vacuum systems may require bleed rings to remove excess air or gases to maintain optimal conditions for the product.

• Sterilization or Pasteurization Equipment:
  In food safety processes like sterilization or pasteurization, the ability to bleed off gases or other by-products is important for maintaining the integrity of the system and ensuring product quality.
