Yuhong Holding Group Co.,LTD
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ISO13485-2016 |
| Model Number: | 10G-34G |
| Minimum Order Quantity: | 10 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box, Plastic Box, Plywood Case |
| Delivery Time: | 30-60 Workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 13 Billion Pieces Per Year |
| Product Name: | Hypodermic Needle | Needle Tube Standard: | ISO9626:2016, ISO7864 |
|---|---|---|---|
| Needle Tube Material Grade: | SUS304 | Tube Type: | Welded |
| Needle Tube Gauge Sizes: | 10G - 34G | Needle Tube Wall Thickness Types: | RW, TW, ETW, UTW |
| Needle Tube Length: | As Client's Request | Needle Tube Technique: | Cold Drawn, Annealed, Polished |
| Highlight: | Medical Injection Needle Tube,Single Use Injection Needle Tube,SUS304 Injection Needle Tube |
||

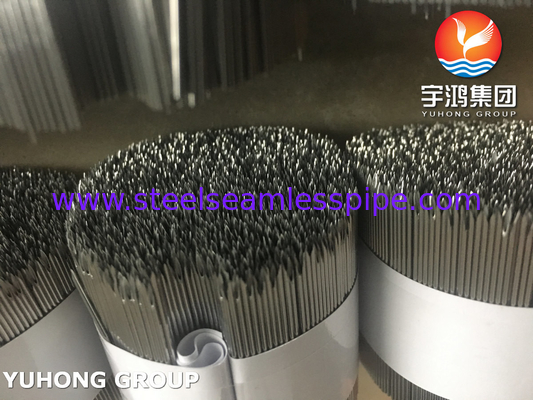

Hypodermic Needle SUS304 Stainless Steel Medical Injection Needle Tube For Single Use
Hypodermic needle tubes are thin, hollow tubes with a sharp tip designed to penetrate the skin and deliver or extract fluids from the body. They are a critical tool in medicine, research, and various other fields. Hypodermic needles are sterlie and disposable.These needles are produced by high-grade stainless steel materials - SUS304/316L. With more than 30 years' experience, our company holds a leadership role in manufacturing stainless steel semi-finished needle tubes, such as hypodermic needles, insulin needles, blood collection needles and so on. Our needle tubes have various kinds of needletip shapes and different sizes(10G to 34G, 0.15mm min.). We can also provide custom-made stainless steel needle tubes according to client's drawing.
Common Components of Hypodermic Needles:
Main Types of Hypodermic Needles:
Hypodermic needles offer several advantages, particularly in medical and scientific contexts. Here are some key benefits:
Overall, disposable hypodermic needles are a critical tool in modern medicine, offering numerous advantages that contribute to effective and efficient patient care.
Gauge Size Chart:
| OD | ID(MM) | |||
| Gauge |
Norminal (MM) |
RW | TW | ETW |
| Min. | Min. | Min. | ||
| - | 0.15 | - | - | - |
| 34G | 0.18 | 0.064 | 0.091 | 0.105 |
| 33G | 0.2 | 0.089 | 0.105 | 0.125 |
| 32G | 0.23 | 0.089 | 0.105 | 0.125 |
| 31G | 0.25 | 0.114 | 0.125 | 0.146 |
| 30G | 0.30 | 0.133 | 0.165 | 0.190 |
| 29G | 0.33 | 0.133 | 0.190 | 0.240 |
| 28G | 0.36 | 0.133 | 0.190 | - |
| 27G | 0.40 | 0.184 | 0.241 | - |
| 26G | 0.45 | 0.232 | 0.292 | - |
| 25G | 0.50 | 0.232 | 0.292 | - |
| 24G | 0.55 | 0.280 | 0.343 | - |
| 23G | 0.60 | 0.317 | 0.370 | 0.460 |
| 22G | 0.70 | 0.390 | 0.440 | 0.522 |
| 21G | 0.80 | 0.490 | 0.547 | 0.610 |
| 20G | 0.90 | 0.560 | 0.635 | 0.687 |
| 19G | 1.10 | 0.648 | 0.750 | 0.850 |
| 18G | 1.20 | 0.790 | 0.910 | 1.041 |
| 17G | 1.40 | 0.950 | 1.156 | 1.244 |
| 16G | 1.60 | 1.100 | 1.283 | 1.390 |
| 15G | 1.80 | 1.300 | 1.460 | 1.560 |
| 14G | 2.10 | 1.500 | 1.600 | 1.727 |
| 13G | 2.40 | 1.700 | 1.956 | - |
| 12G | 2.70 | 1.950 | 2.235 | - |
| 11G | 3.00 | 2.200 | 2.464 | - |
| 10G | 3.40 | 2.500 | 2.819 | - |
![]()
