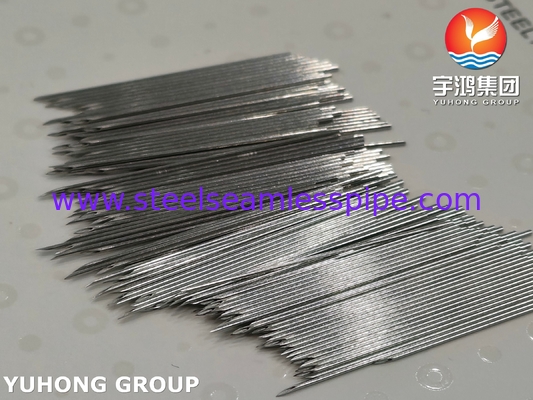

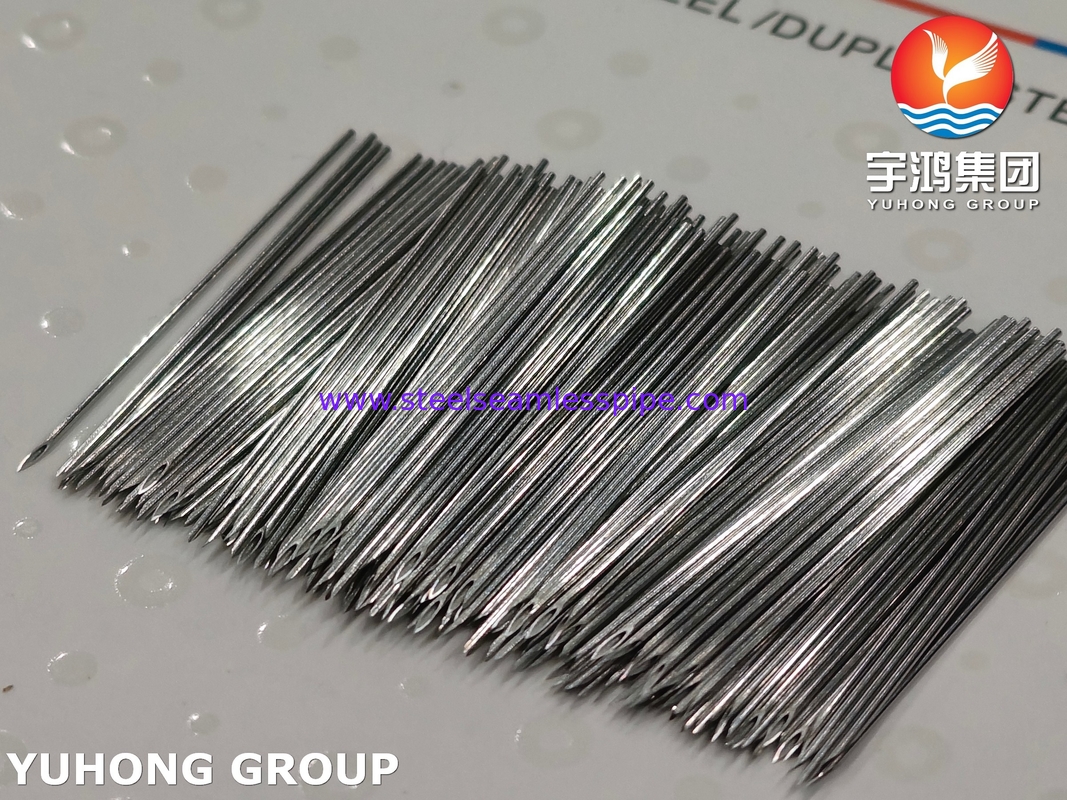

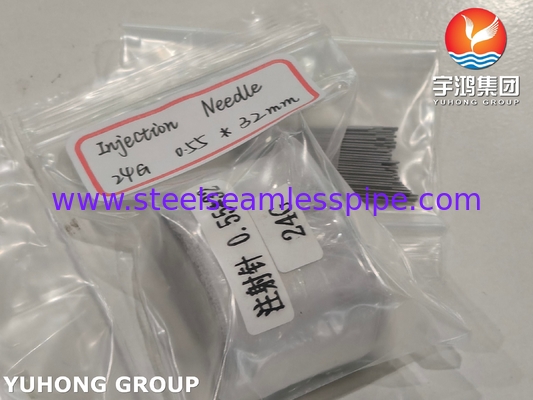

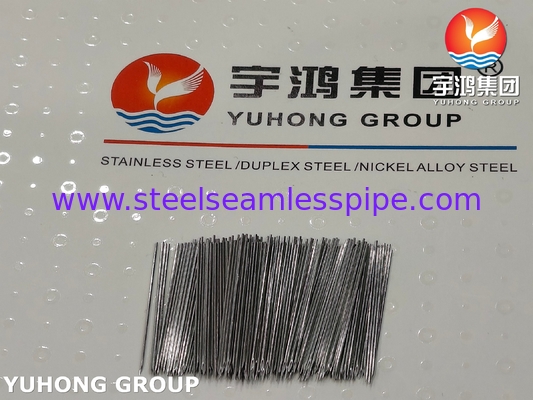

24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626

24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626

  • 24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626
  • 24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626
  • 24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626
  • 24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626
24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ISO13485:2016
Model Number: 10G-34G
Payment & Shipping Terms:
Minimum Order Quantity: 50 KGS
Price: Negotiable
Packaging Details: Carton Box, Plastic Box, Plywood Case
Delivery Time: 30 - 60 Workdays
Payment Terms: T/T, L/C
Supply Ability: 13 Billion pieces Per Year
Contact Now
Detailed Product Description
Standard: ISO9626:2016 Material: Stainless Steel 304/316L
Gauge Size: 10G - 34G Wall Thickness Types: RW/TW/ETW
Length: As Required Tip Angle: 12° To 14°
Surface: Bright Annealed Technique: Cold Drawn
Highlight:

0.55*32MM Medical Injection Needle Tube

,

Bevel-tip Medical Injection Needle Tube

,

ISO9626 Medical Injection Needle Tube

24G Medical Injection Needle , 0.55*32mm , Bevel-tip Stainless Steel Needle Tube ISO9626



Injection Needles are disposable and sterile medical needle tubes, which have bevel tips. Medical injection needle tubes are mainly manufactured by high-quality stainless steel materials like SUS304, SUS316L due to their resistance to corrosion. The length of medical needle tubes are various, and the common lengths include ½" (13 mm) for subcutaneous or 1" (25 mm) for intramuscular injections. Our company is professional in producing different kinds of stainless steel needle tubes for medical needle devices. We have specialized fully-auto and semi-auto needle-grinding mechines which can make various kinds of needle tips. For needle sizes, we can provide needles from 10G - 34G, that is 0.18mm - 3.4mm. The minimum diameter that we can produce is 0.15mm. We can customize unstandard needles according to customer's specific drawings. We can not only provide injection needle, but also provide blood lancet needle, insulin needle, dental needle, mesothrapy needle, blood collection needle, scalp vein needle, blunt needle and so on. With tight quality control inspection, we have rigorous testing for dimensions, surface finish, and material properties to ensure compliance with industry standards. All of our finished medical needle tubes are meet the ISO13485 standard.



Advantages:

  • Reduced Pain: Thinner diameter causes less tissue trauma.
  • Safety Features: Often includes retractable sheaths or shields to prevent needlestick injuries.
  • Sterility: Single-use, pre-sterilized, and disposable to ensure infection control.



Considerations:

  • Flow Rate: Slower administration due to smaller bore; may not be suitable for rapid infusions.
  • Viscosity Limits: Avoid use with thick medications (e.g., certain antibiotics or suspensions).
  • Patient Factors: Selected based on age, injection site (e.g., deltoid vs. thigh), and medication type.



Needle Sizes Chart:

OD ID Min.(MM)
Gauge Norminal(MM) RW TW ETW
- 0.15 - - -
34G 0.18 0.064 0.091 0.105
33G 0.2 0.089 0.105 0.125
32G 0.23 0.089 0.105 0.125
31G 0.25 0.114 0.125 0.146
30G 0.30 0.133 0.165 0.190
29G 0.33 0.133 0.190 0.240
28G 0.36 0.133 0.190 -
27G 0.40 0.184 0.241 -
26G 0.45 0.232 0.292 -
25G 0.50 0.232 0.292 -
24G 0.55 0.280 0.343 -
23G 0.60 0.317 0.370 0.460
22G 0.70 0.390 0.440 0.522
21G 0.80 0.490 0.547 0.610
20G 0.90 0.560 0.635 0.687
19G 1.10 0.648 0.750 0.850
18G 1.20 0.790 0.910 1.041
17G 1.40 0.950 1.156 1.244
16G 1.60 1.100 1.283 1.390
15G 1.80 1.300 1.460 1.560
14G 2.10 1.500 1.600 1.727
13G 2.40 1.700 1.956 -
12G 2.70 1.950 2.235 -
11G 3.00 2.200 2.464 -
10G 3.40 2.500 2.819 -



24G Medical Injection Needle , 0.55*32MM , Bevel tip Stainless Steel Needle Tube ISO9626 0
