Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ISO13485:2016 |
Model Number: | 23G-33G |
Minimum Order Quantity: | 50 KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Carton Box, Plastic Box, Plywood Case |
Delivery Time: | 30-60 Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 13 Billion pieces Per Year |
Production Name: | Blood Collection Needle Tube | Needle Ponit: | Three Bevelled Tip Soild Lancet Point |
---|---|---|---|
Standard: | ISO9626: 2016 | Material: | Stainless Steel 304 |
OD Size: | 23-33G | Length: | According To The Client's Request |
Highlight: | 0.46*23.5MM Blood Collection Needle Tube,26G Blood Collection Needle Tube,Three Bevelled Blood Collection Needle Tube |

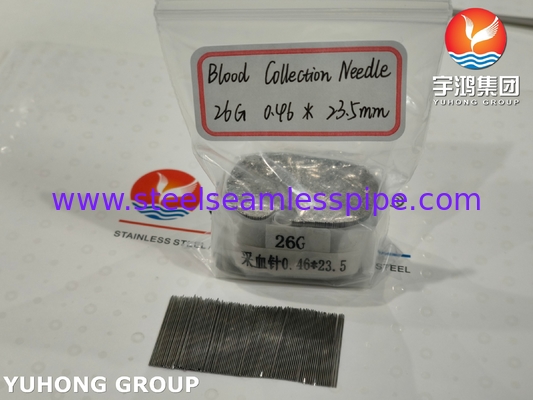

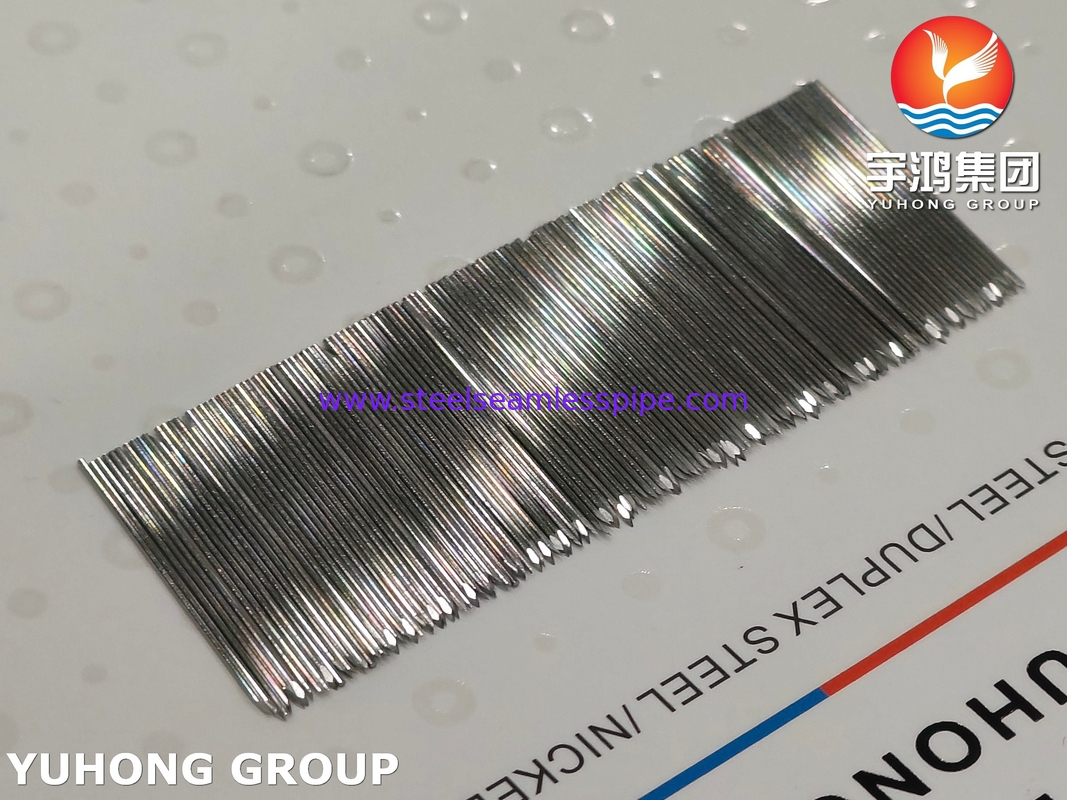

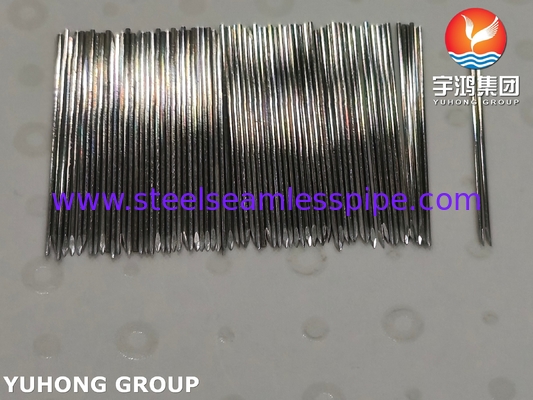

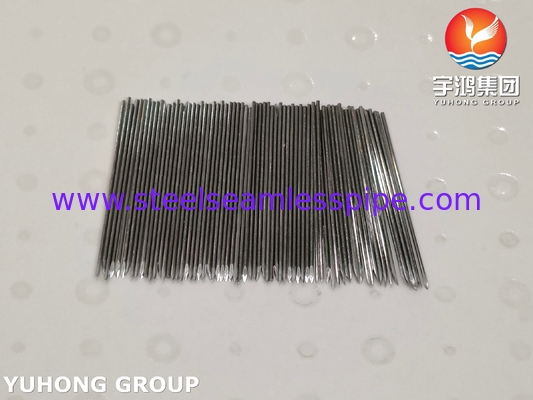

26G Medical Blood Collection Needle Tube With Three Bevelled Solid Lancet Tip 0.46*23.5MM
The blood collection needle tube is a specialized medical device which is designed for efficient and minimally invasive blood collection. This blood lancet needle is mainly made from medical-grade stainless steel 304 material due to the good durability and resistance to corrosion. The triple-bevel solid lancet needle point design enhances sharpness, allowing smoother skin penetration with minimized pain and tissue trauma compared to single-bevel needles. This is particularly beneficial for patients requiring frequent sampling such as diabetics. Blood lancets are mainly used for capillary blood sampling, which is a process to prick the person's skin to obtain a small blood sample for testing. This is often tested for the glucose levels of patient's blood, making lancet point essential for diabetes treatment. Blood lancet needle tubes are also used in other medical treatments that require a tiny blood sample, such as cholesterol or hemoglobin testing.
For blood collection needle tubes, we can provide different needle tips, such as three-bevelled solid lancet point, solid lancet point with groove, blade point, etc.. Our company is profeesional in designing different types of stainless steel medical needle tubes. We can also customize needle tubes according to clients' drawings or samples. Our finished needle tubes size are mainly from 10G to 34G, that is 0.18 to 3.4mm, and the minimized size we can provide is 0.15mm.
Advantages Of Blood Collection Tubes:
★ Sterile and Hygienic:
The lancet needles reduce the risk of cross-contamination and infection, ensuring the safe use.
★ Sharp Stainless Steel Needle Tip:
Stainless steel material ensures a sharp, easy puncture for less pain and quick blood collection.
★ Painless Sampling:
Smooth, precise penetration reduce patients' discomfort when blood collecting.
★ Consistent Depth:
The consistent puncture depth ensures enough blood flow for accurate testing while minimizing the tissue damage.
Needle Tube Sizes Chart:
OD | OD Range | ID, mm | ||||
Gauge | Norminal, mm | Min. | Max. | RW | TW | ETW |
Min. | Min. | Min. | ||||
- | 0.15 | - | - | - | - | - |
34G | 0.18 | 0.178 | 0.191 | 0.064 | 0.091 | 0.105 |
33G | 0.2 | 0.203 | 0.216 | 0.089 | 0.105 | 0.125 |
32G | 0.23 | 0.229 | 0.241 | 0.089 | 0.105 | 0.125 |
31G | 0.25 | 0.254 | 0.267 | 0.114 | 0.125 | 0.146 |
30G | 0.30 | 0.298 | 0.320 | 0.133 | 0.165 | 0.190 |
29G | 0.33 | 0.324 | 0.351 | 0.133 | 0.190 | 0.240 |
28G | 0.36 | 0.349 | 0.370 | 0.133 | 0.190 | - |
27G | 0.40 | 0.400 | 0.420 | 0.184 | 0.241 | - |
26G | 0.45 | 0.440 | 0.470 | 0.232 | 0.292 | - |
25G | 0.50 | 0.500 | 0.530 | 0.232 | 0.292 | - |
24G | 0.55 | 0.550 | 0.580 | 0.280 | 0.343 | - |
23G | 0.60 | 0.600 | 0.673 | 0.317 | 0.370 | 0.460 |
22G | 0.70 | 0.698 | 0.730 | 0.390 | 0.440 | 0.522 |
21G | 0.80 | 0.800 | 0.830 | 0.490 | 0.547 | 0.610 |
20G | 0.90 | 0.860 | 0.920 | 0.560 | 0.635 | 0.687 |
19G | 1.10 | 1.030 | 1.100 | 0.648 | 0.750 | 0.850 |
18G | 1.20 | 1.200 | 1.300 | 0.790 | 0.910 | 1.041 |
17G | 1.40 | 1.400 | 1.510 | 0.950 | 1.156 | 1.244 |
16G | 1.60 | 1.600 | 1.690 | 1.100 | 1.283 | 1.390 |
15G | 1.80 | 1.750 | 1.900 | 1.300 | 1.460 | 1.560 |
14G | 2.10 | 1.950 | 2.150 | 1.500 | 1.600 | 1.727 |
13G | 2.40 | 2.300 | 2.500 | 1.700 | 1.956 | - |
12G | 2.70 | 2.650 | 2.850 | 1.950 | 2.235 | - |
11G | 3.00 | 2.950 | 3.150 | 2.200 | 2.464 | - |
10G | 3.40 | 3.300 | 3.500 | 2.500 | 2.819 | - |
Applications:
1.Capillary Blood Sampling: Used in glucose testing, newborn screenings, or point-of-care tests.
2.Venous Blood Collection: If part of a larger system (e.g., Vacutainer), the bevelled tip could facilitate vein entry, with a secondary needle end piercing collection tubes.
