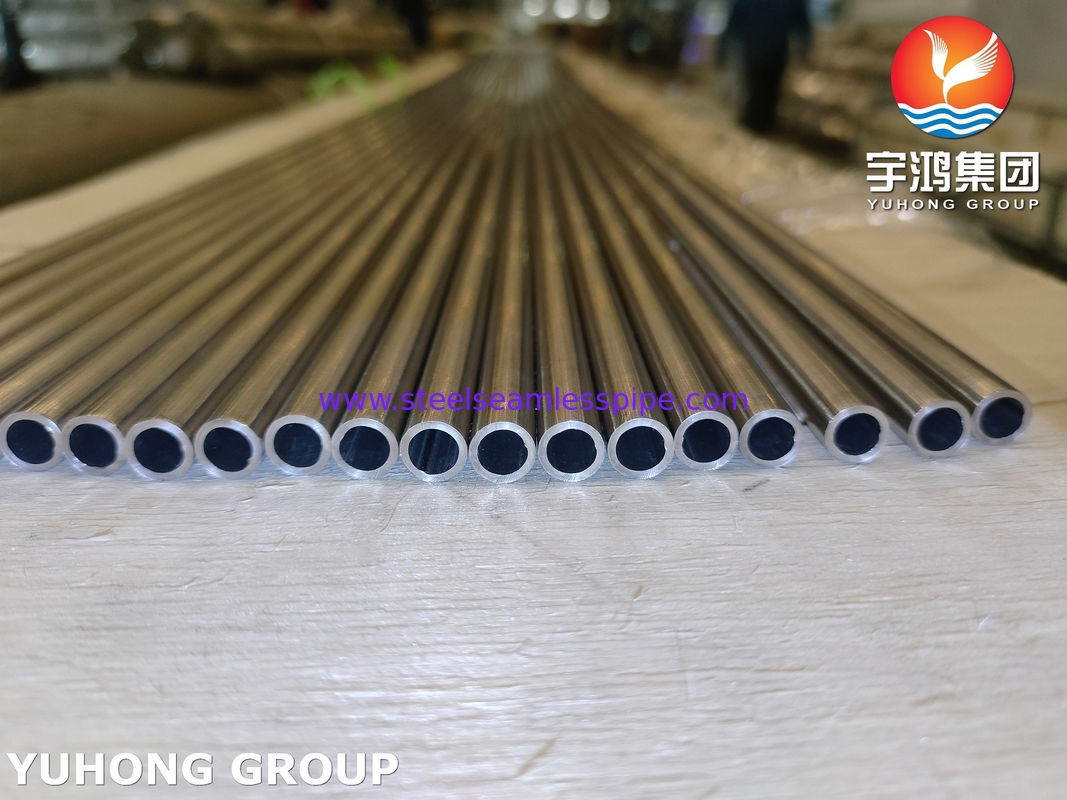

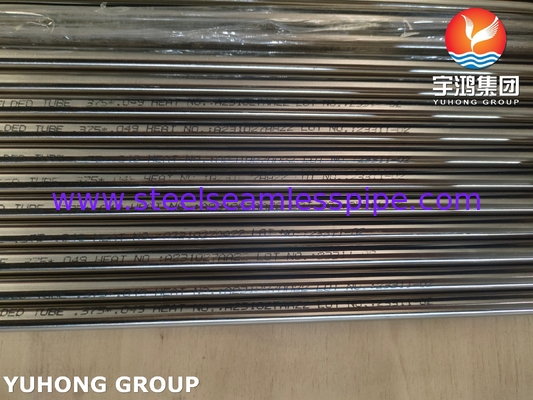

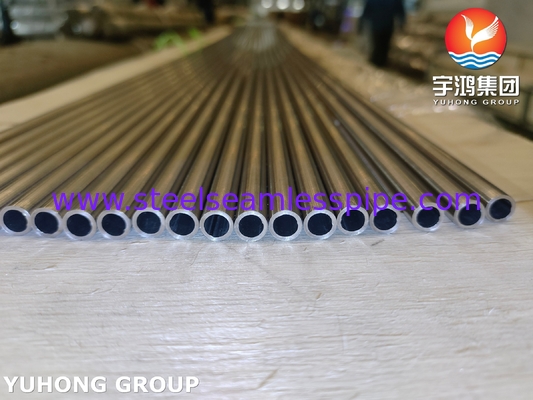

ASTM A269 TP316L Polished Stainless Steel Welded Tube Welded Austenitic Steel Tubing

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP316L Stainless Steel Welded Tube

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS

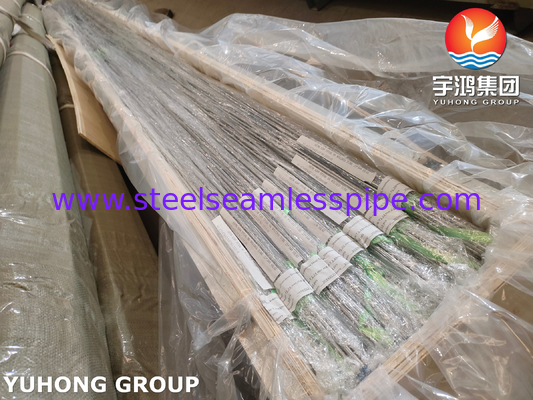

Packaging Details:	Ply-wooden Case/ Bundle with plastic Cap
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Product Name:	Stainless Steel Welded Tube	Standard:	ASTM A269， ASME SA269
Material:	TP304/304L/304H, TP310S/310H, TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L	OD:	1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc.
Length:	Single Random, Double Random & Cut Length	End:	Plain End, Beveled End
Type:	Seamless, Welded	Surface:	Polished, Pickled, Bright Annealed
Application:	Heating, Cooling, Instrumentation, Food Processing Machine,
Highlight:	Welded Austenitic Steel Tubing , Polished Stainless Steel Welded Tube , ASTM A269 TP316L Welded Tube

ASTM A269 / ASME SA269 TP316L Polished Austenitic Stainless Steel Welded Tube

ASTM A269 specifies the requirements for seamless and welded austenitic stainless steel 304/ 304L/ 316L/ ... / 317/ 321/ 347 tubing intended for general corrosive service, which commonly used in piping and plumbing applications.

Tube Manufacturing & Process:

Welded Construction: Formed from flat-rolled stainless steel strip/sheet, longitudinally welded (TIG, laser, or plasma welding).
Polished Finish: Surface is mechanically polished (e.g., #4 brushed, mirror, or electropolished) to improve:
- Hygiene: Reduces bacterial adhesion (critical for food, pharma, and medical applications).
- Aesthetics: Smooth, reflective appearance.
- Corrosion Resistance: Minimizes surface defects that could trap contaminants.

Equivalent Grades of ASTM A269 TP316L Polished Stainless Steel Welded Tube

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Chemical Composition of ASTM A269 TP316L Polished Stainless Steel Welded Tube

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	10.00 - 14.00	68.89 min

Physical Properties of ASTM A269 TP316L Polished Stainless Steel Welded Tube

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 100°C	At 500°C
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Comparison with Other Standards

1. ASTM A312

Purpose: Similar to ASTM A269, ASTM A312 covers both seamless and welded austenitic stainless steel pipes but is specifically intended for high-pressure applications.

Grades: Includes similar grades as A269 but also specifies additional requirements for pressure applications.

Usage: A312 is generally used in situations requiring higher mechanical strength and pressure ratings.

2. ASTM A511

Purpose: While ASTM A269 is primarily for tubing in various services, ASTM A511 is focused on seamless stainless steel tubing for mechanical applications.

Differences: A511 typically includes stricter mechanical properties and dimensions since it's intended for specific mechanical applications.

3. ASTM A554

Purpose: This specification is for welded stainless steel tubing intended for mechanical and structural applications, with a strong emphasis on aesthetic appearance.

Grades: Generally covers lower grades of stainless steel than those in A269 and is often used in decorative applications like railings and furniture.

4. ASTM A249

Purpose: Focused on stainless steel tubing for heat exchangers, condenser, and similar applications.

Standards: A249 places more emphasis on mechanical properties, weld performance, and achieving a suitable surface finish for heat transfer applications.

Applications

Pharmaceutical/Biotech: Clean-in-place (CIP) systems, process piping.
Food & Beverage: Sanitary tubing, dairy processing.
Chemical Processing: Acid/caustic fluid transfer.
Marine/Coastal: Saltwater-exposed components.
Medical Devices: Implants, surgical instruments (post-processing may be required).
