ASTM B466 C70600 Copper Nickel Alloy Fitting Equal Tee B16.9

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B466 C70600

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	According to Client Requirements

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Specifications:	ASTM B466	Material Grade:	C70600
Size:	1/8"NB TO 48"NB IN	Schedule:	SCH 10S - SCH XXS
Technical:	Butt Weld	Packaging:	PLY-WOODEN CASE OR PALLET

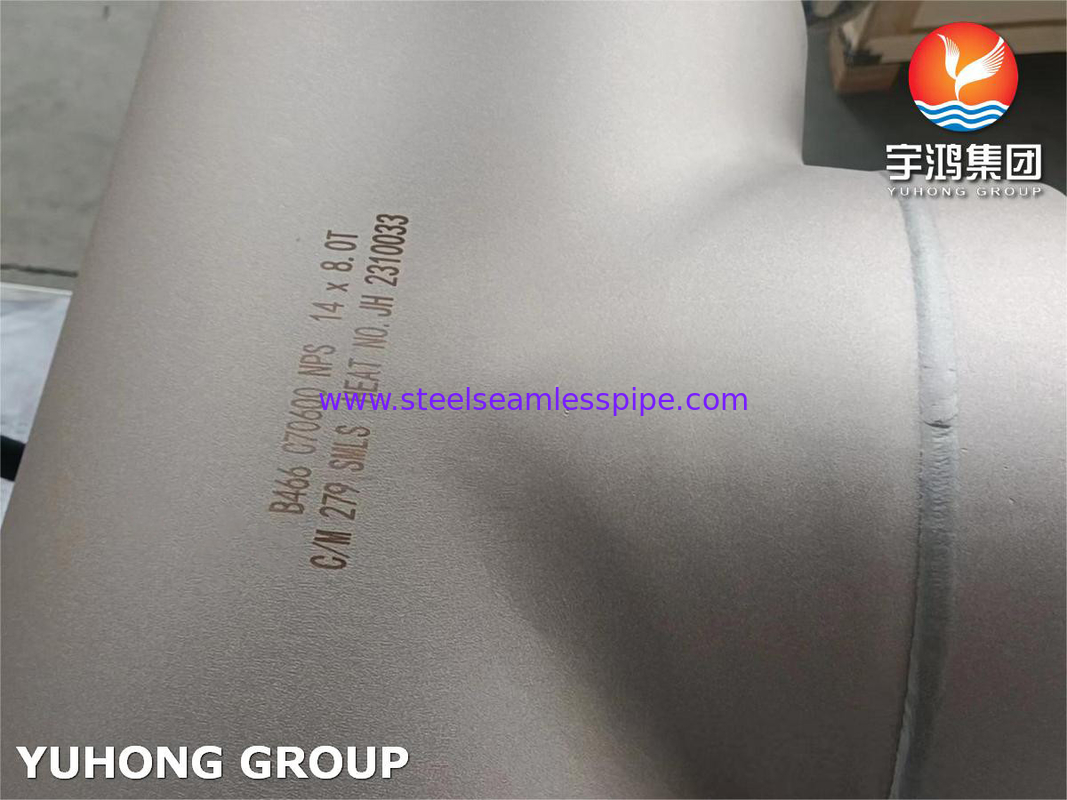

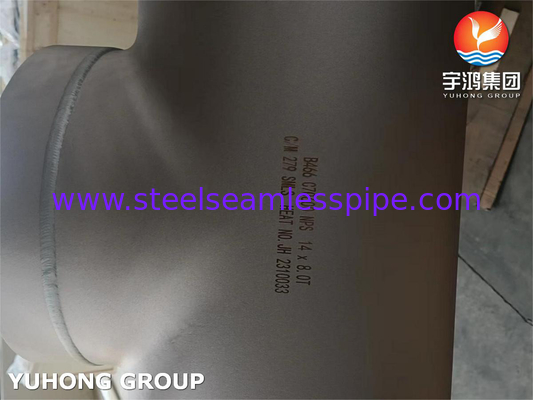

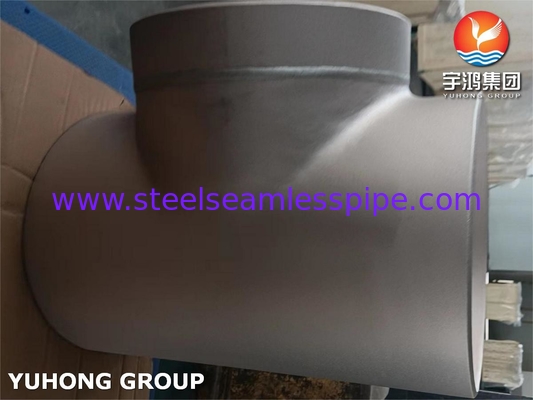

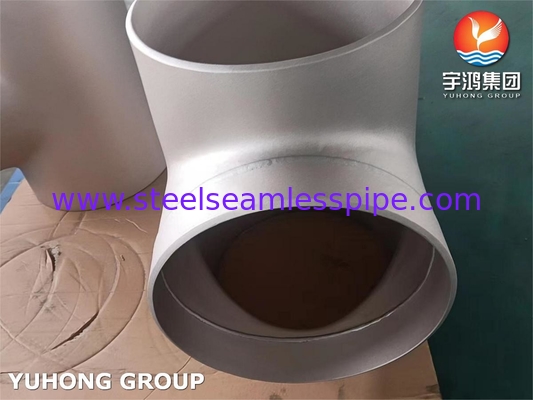

ASTM B466 C70600 Copper Nickel Alloy Fitting Equal Tee B16.9

ASTM B466 C70600 equal-diameter tees have become the preferred pipe fittings in the fields of marine engineering, shipbuilding and chemical industry due to their excellent seawater corrosion resistance and high reliability.

C70600 is a 90-10 copper-nickel alloy (Cu 88.6-90.5%, Ni 9-11%, Fe 1.0-1.8%, Mn 0.5-1.0%) with excellent seawater corrosion resistance and anti-biofouling properties.

The equal-diameter tees made of it can be used for seawater pipeline diversion or confluence.

Equivalent Grades of C70600 Buttweld Fittings

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 90/10	2.0872	C70600

Specifications of C70600 Buttweld Fittings

Size	1/2″ to 24″ NB to 24″NB in
Specification	ASTM B466 / ASME SB466
Type	Seamless / Welded / Fabricated
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Grades	Copper Nickel Alloy UNS C70600 (Cu-Ni) 90/10
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75

Chemical Composition of C70600 Buttweld Fittings

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Copper Nickel 90/10	88.6 min	0.35 max	0.05 max	99.0 min	0.4 max	1 max

Mechanical & Physical Properties of C70600 Buttweld Fittings

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %
