ASTM A182 ASME SA182 F347L Weld Neck RF Forged Flange For Supercritical Boilers

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK.
Model Number:	ASTM A182 F347

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80
Payment Terms:	L/C, T/T
Supply Ability:	According To Client's Request

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Product Name:	Stainless Steel Flange	Material:	F347
Pressure:	150lb,300lb,600lb,900lb,1500lb	Standard:	ANSI B16.5
Type:	Weld Neck	Inspection:	Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection
Highlight:	ASTM A182 Flange , ASME SA182 F347L Flange

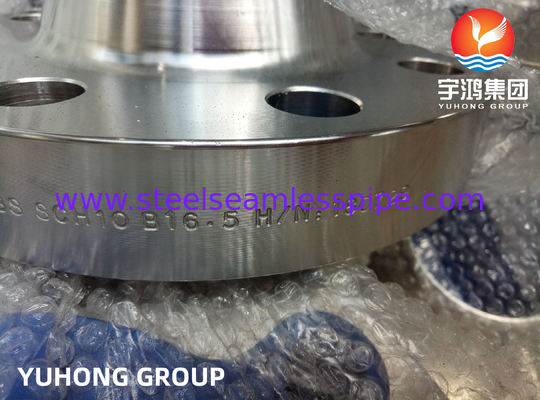

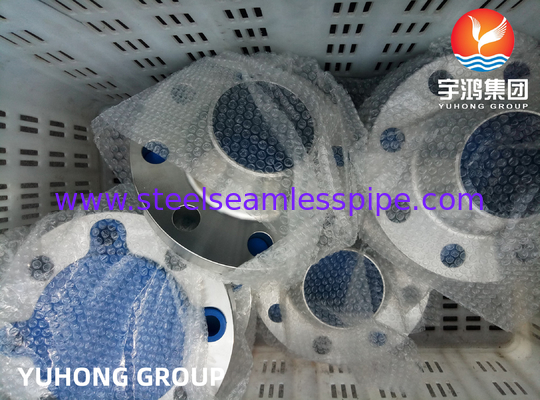

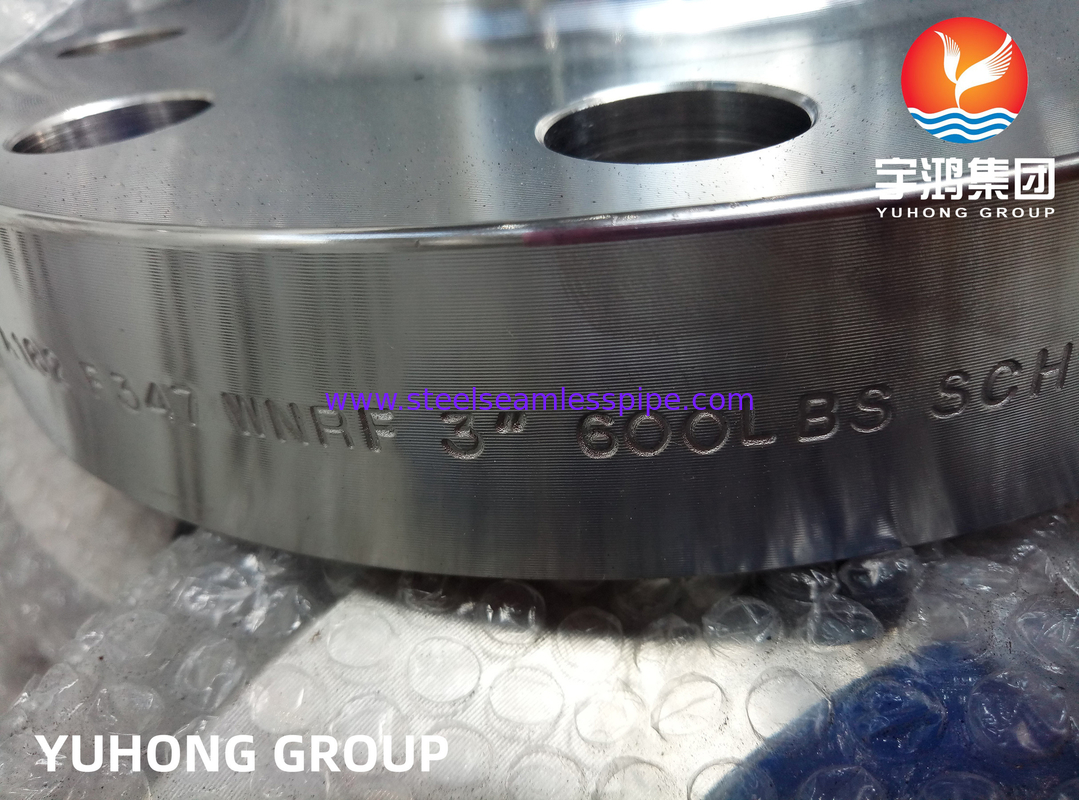

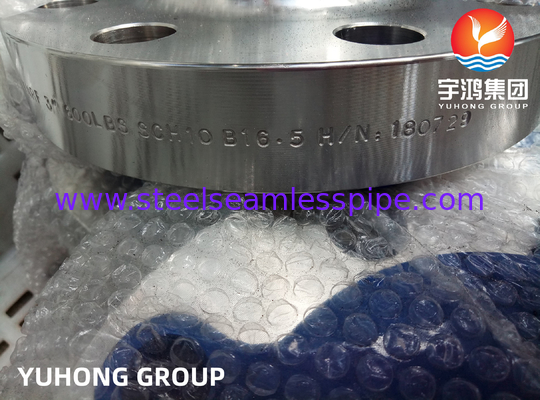

ASTM A182 ASME SA182F347L Weld Neck RF Forged Flange

Description

ASTM A182 F347 Weld Neck Flange is a high-performance butt-welded flange made of austenitic stainless steel (UNS S34700). It complies with the ASTM A182 high-temperature forging standard and the ASME B16.5 dimensional specification. It has excellent high-temperature oxidation resistance, intergranular corrosion resistance and high mechanical strength.

It is widely used in petrochemical, electric power and high-temperature steam pipeline systems. It is suitable for harsh working conditions with pressure levels of Class 150 to 2500. Its long-neck tapered design can effectively disperse stress and ensure sealing reliability under high-pressure environments.

Start a new conversation

ASTM A182 F347 Flange Chemical Compostion and Properties

Element	347	347H
Chromium	17.00 min.-19.00 max.	17.00 min.-19.00 max.
Nickel	9.00 min.-13.00 max.	9.00 min.-13.00 max.
Carbon	0.08	0.04 min.-0.10 max.
Manganese	2.00	2.00
Phosphorus	0.045	0.045
Sulfur	0.03	0.03
Silicon	0.75	0.75
Columbium & Tantalum	10 x (C + N) min.-1.00 max.	8 x (C + N) min.-1.00 max.
Iron	Balance	Balance

ASTM A182 F347 Flange Mechanical and Physical Properties

Yield Strength 0.2% Offset		Ultimate Tensile Strength		Elongation in 2 in.	Hardness
psi (min.)	(MPa)	psi (min.)	(MPa)	% (min.)	(max.)
30,000	205	75,000	515	40	201 Brinell
