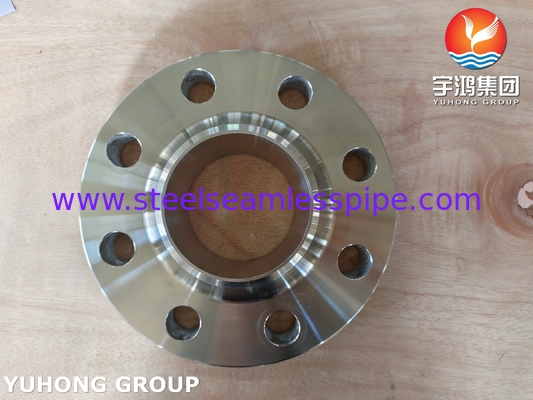

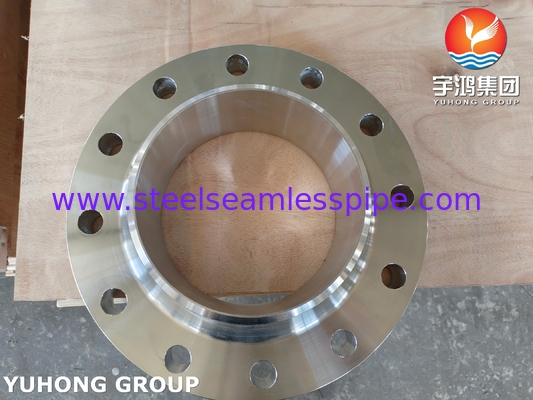

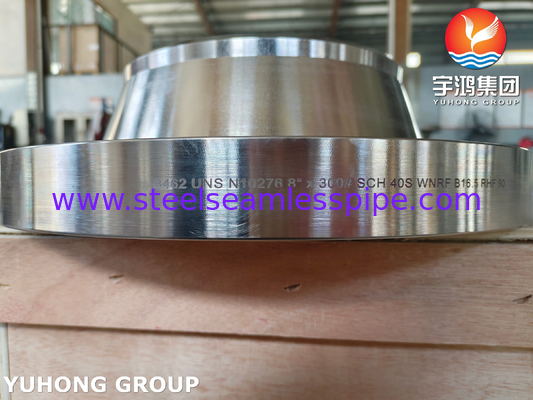

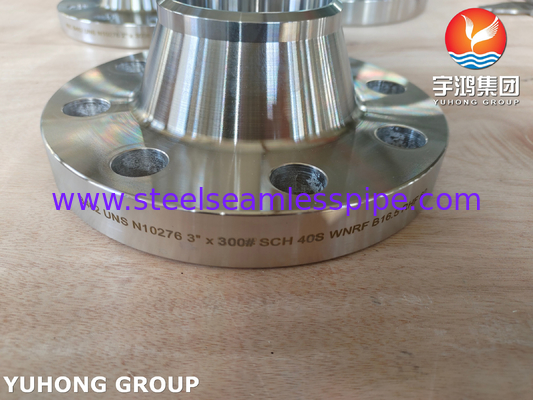

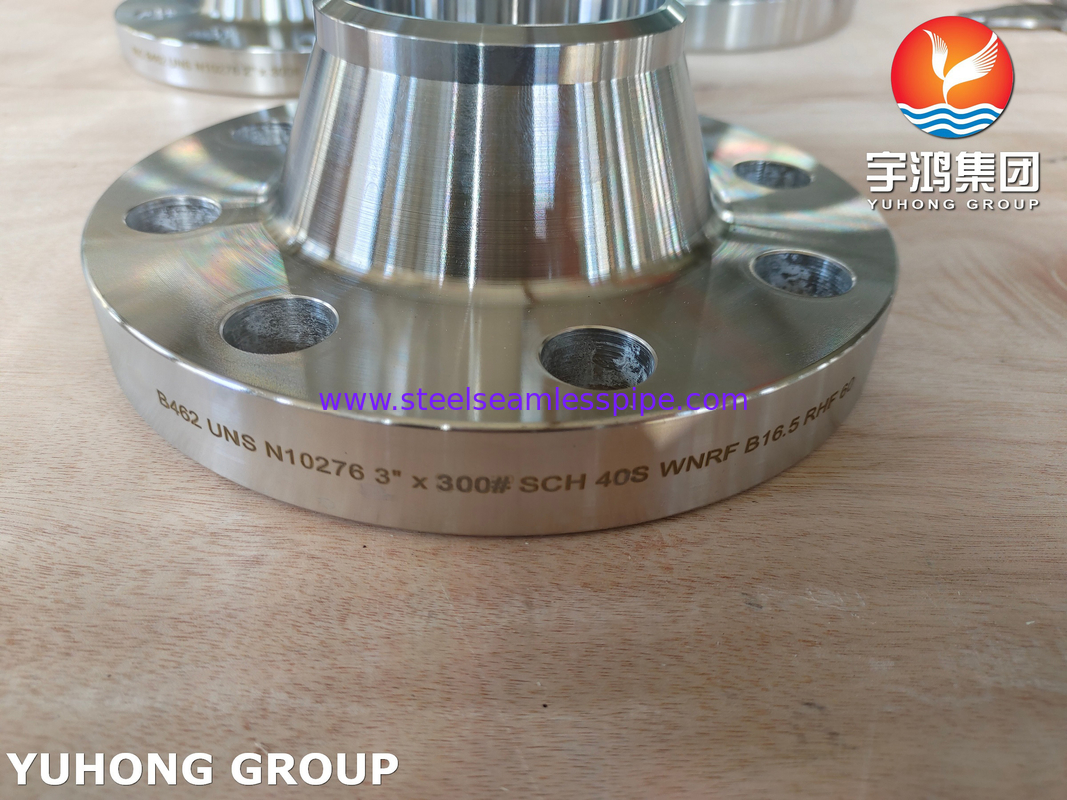

ASTM B462 Hastelloy C276 Nickel Alloy UNS N10276 Weld Neck Flange WNRF

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B462 UNS N10276 Nickel Alloy Weld Neck Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOOD CASE / PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Product Name:	Hastelloy Flange	Dimension:	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges Etc.
Material:	UNS N10276 / 2.4819 / Hastelloy C276	Size:	1/8" To 48"
WT:	Sch 5S To Sch XXS	Pressure:	Class150/300/600/9001500/2500
Type:	Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange	Flange Face:	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Application:	Petroleum, Chemical, Onshore Adn Offshore, Shipbuilding, Etc
Highlight:	Nickel Alloy Weld Neck Flange , UNS N10276 Weld Neck Flange , ASTM B462 Weld Neck Flange

ASME B16.5 Hastelloy C276 Flange ASTM B462 UNS N10276 / 2.4819 Nickel Alloy WNRF Flange

Hastelloy C276 (UNS N10276/ 2.4819) is a nickel-chromium-molybdenum-tungsten superalloy renowned for exceptional corrosion resistance in extreme environments. Key features:

Composition: 57% Ni, 15–17% Mo, 14.5–16.5% Cr, 3–4.5% W, and ultra-low carbon (≤0.01%) to prevent carbide precipitation during welding.
Corrosion Resistance: Withstands pitting, crevice corrosion, and stress corrosion cracking (SCC) in oxidizing/reducing media, including sulfuric, hydrochloric, and phosphoric acids, chlorides, and sour (H₂S) environments. Its PREn (Pitting Resistance Equivalent) of ~69 outperforms most stainless steels.
Temperature Range: Retains strength and oxidation resistance up to 1,040°C (1,900°F), though prolonged exposure above 540°C risks carbide formation.
Testing/Certification: Complies with NACE MR0175 for sour service and ASTM B462 for wrought components. PT/RT testing is critical for high-integrity welds.
Hidden Strengths: Tungsten enhances stability in mixed acids, while electropolishing mitigates post-weld corrosion. Avoids gamma prime phase embrittlement, unlike age-hardenable alloys.

Equivalent Grades of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Weld Neck Flange

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Chemical Composition of of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Weld Neck Flange

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

Mechanical properties (Minimum value at 20℃) of Hastelloy C276 Flange Nickel Alloy UNS N10276 Weld Neck Flange

Tensile Strengthσb/MPa	Yield Strengthσp0.2/MPa	Elongationσ5 /%
690	283	40

UNS N10276 / Hastelloy C276 Flange Type

WN brida forjada, bridas de cuello de soldadura – WNRF

-N10276 Welding Neck Flange(WNF) & Long Welding Neck Flange(LWNF)
-N10276 Slip-on Flange(SOF)
-Lap Joint Flange(LJW)
-N10276 bind Flange
-Socket Welding Flange (SWF)
-Threaded Flange(THW)
-Plate Flange

ASTM/ASME/ANSIB16.5, B16.47, ASME/ANSI B16.48 flange
slip on flange, Weld Neck Flange ,Threaded Flange Blind Flange

Application

Chemical Processing: Reactors, heat exchangers, and piping in HCl, H₂SO₄, and acetic acid environments.
Oil & Gas: Subsea pipelines, downhole tools, and sour gas handling.
Pollution Control: Flue gas desulfurization (FGD) systems.
Pharmaceutical: High-purity systems requiring contamination resistance.
Marine: Seawater cooling systems and offshore platforms.
