ASME SA179 ASTMA179 U Bend Seamless Cold Drawn Low Carbon Steel Heat Exchanger Condenser Tubes

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001, ASME
Model Number:	ASME SA179 A179

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	5-80 Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	15000tons/month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Standard:	ASME SA179 ASTM A179	Material:	Carbon Steel
OD:	6.35MM-114.3MM	Wall Thickness:	10BWG-15BWG
NDT:	Eddy Current Test, Hydrostatic Test, Ultrasonic Test	Application:	Boiler, Heat Exchanger, Heating
Highlight:	Heat Exchanger U Bend Tube , Condenser U Bend Tube , Condenser Seamless U Bend Tube

ASME SA179 ASTMA179 Seamless U Bend Tube Seamless Cold-Drawn Low Carbon Steel Heat Exchanger And Condenser Tubes

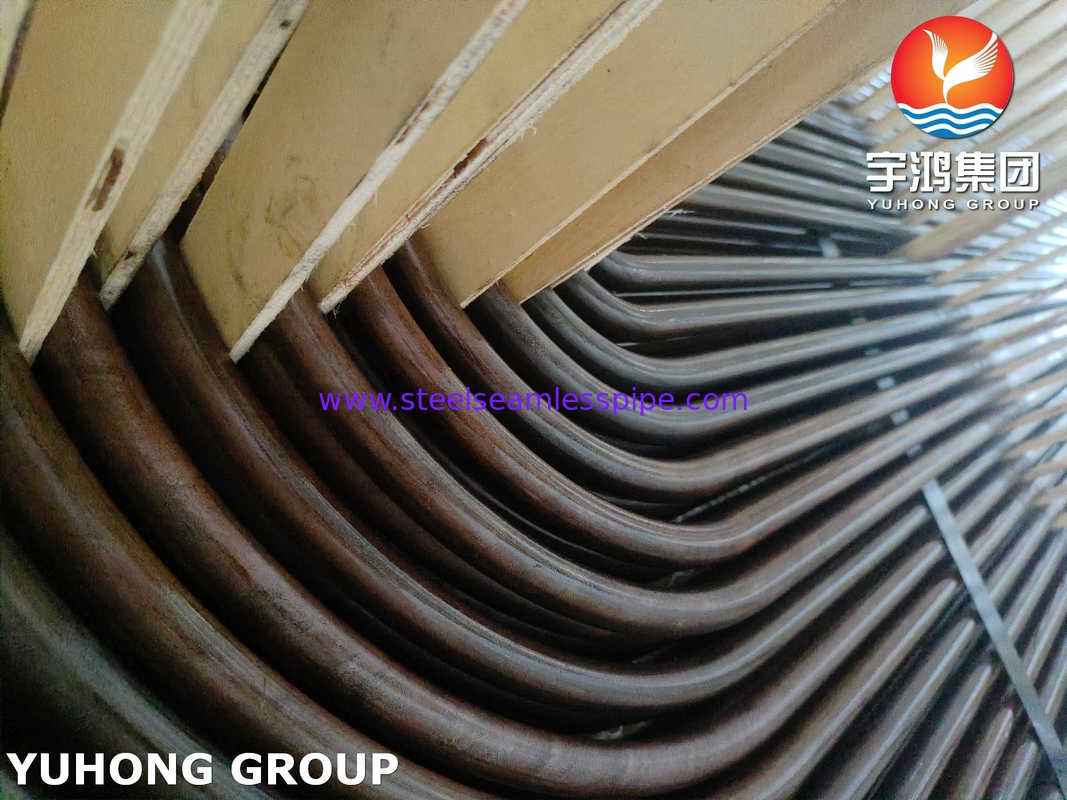

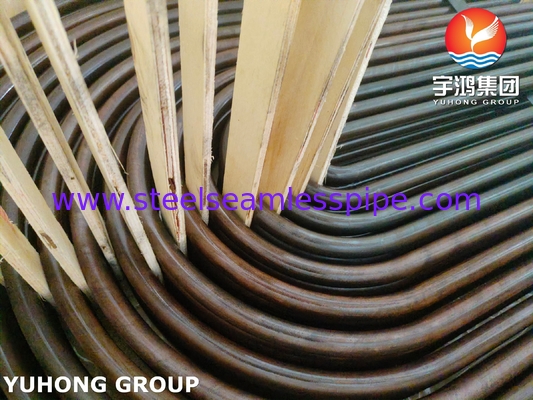

ASME SA179/A179 seamless U-tube is a standardized tube made of low-carbon steel seamless tube precisely cold-bent into a U shape.

Due to its excellent thermal conductivity, reliable pressure resistance (seamless structure), good processability and thermal compensation capability (U-shaped design), it has become one of the preferred materials for heat transfer tubes in shell and tube heat exchangers and is widely used in the core parts of heat exchange equipment in the power, petrochemical, HVAC and other industries.

Chemical Composition of ASTM A179/ASME SA179 U Bend Tubes

Material	Chemical Composition(%)
Material	C	Si	Mn	P	S
STM A179/ASME SA179	0.06-0.18	≤ 0.25	0.27-0.63	≤0.035	≤0.035

Mechanical Propertie of ASTM A179/ASME SA179 U Bend Tube

Grade	ASTM A179
Tensile Strength(MPa)	≥325
Yield Strength(MPa)	≥180
Elongation,%	≥35
Hardness, HRB	≤72

Application

Shell and Tube Heat Exchangers

Condensers:
In power plants and chemical plants, steam is condensed into liquid water. The U-shaped tube can expand freely to avoid thermal stress causing leakage at the tube sheet interface.

Evaporators:
Used for liquid vaporization in refrigeration and chemical processes, the U-shaped structure is compact and improves evaporation efficiency.

Oil Coolers/Process Fluid Heat Exchangers:
Cooling lubricating oil or process media in petrochemicals and ships, the pressure resistance of seamless tubes ensures safe operation.

Boiler Systems

Low-pressure boiler economizers:
Recover flue gas waste heat to preheat boiler feed water, and the thermal conductivity of low-carbon steel optimizes heat recovery efficiency.

Low-pressure superheaters:
Superheating low-temperature steam (usually ≤400°C), U-shaped elbows relieve thermal expansion stress.

ASME SA179 ASTMA179 U Bend Seamless Cold Drawn Low Carbon Steel Heat Exchanger Condenser Tubes 0
