ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers

ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers

  • ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers
  • ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers
  • ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers
  • ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers
ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B111 C71500
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable

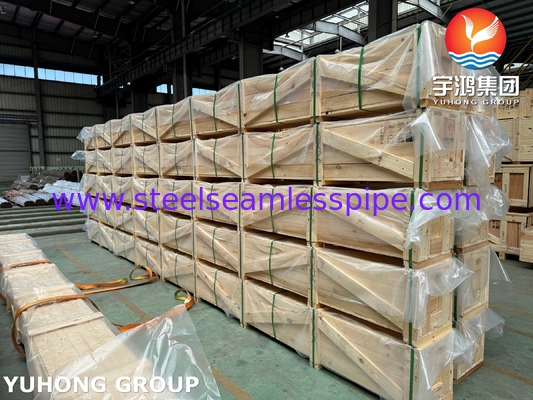

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: L/C,T/T
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (286)
Stainless Steel Seamless Tube (275)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (102)
Fin Tube (619)
Heat Exchanger (16)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (78)
Copper Alloy Tube (222)
Alloy Steel Tube (182)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (141)
Steel Fitting (797)
Steel Flange (583)
Others (388)
Cladding Parts (7)
Detailed Product Description
ASTM Standard: ASTM B111 Alloy Grade: C71500 (UNS C71500)
Material Equivalent: CuNi 90/10, CW354H Tube Type: Seamless
Outer Diameter (OD) Range: 1/4" To 8" (6.35mm - 203mm) Wall Thickness (WT): Schedule 10S | 0.083" (2.11mm)
Temper/Condition: Annealed (O) | Hard Drawn (H80) Max Working Pressure: 500 Psi @ 100°F (3.45 MPa)
Highlight:

Corrosion Resistance Copper Nickel Tube

,

ASTM B111 Copper Nickel Tube

,

C71500 Copper Nickel Tube

 ASTM B111 C71500 Copper Nickel Tube (90-10 CuNi) | Seawater Corrosion Resistant Tubes Supplier



Brief Introduction



ASTM B111 C71500 Copper Nickel (90-10 CuNi) Tubes are engineered for extreme corrosion resistance in marine and industrial environments. As a premier supplier, we provide seamless and welded tubes compliant with ASTM B111 standards, delivering unmatched performance in heat exchangers, condensers, and offshore applications.


Chemical Composition (ASTM B111 Compliance)


Element

Composition (%)

ASTM B111 Requirement


Copper (Cu)


88.6 - 90.0


Balance


Nickel (Ni)


9.0 - 11.0


9.0 - 11.0


Iron (Fe)


1.3 - 1.8


1.0 - 1.8


Manganese (Mn)


0.3 - 0.8


0.30 - 1.0


Lead (Pb)

≤ 0.02

≤ 0.05


Zinc (Zn)


≤ 0.20


≤ 0.50


Other Impurities


≤ 0.3


≤ 0.5 (Total)



Equivalent Grades & International Standards



Region

Standard

Equivalent Grade

USA

ASTM B111

C71500

Europe

EN 12451

CuNi10Fe1Mn

Germany

DIN 17664

2.0872

Japan

JIS H3500

C7150

ISO

ISO 1634

CuNi10Fe1Mn



C71500 Mechanical Properties ASTM B111




Property


Annealed Condition


Hard Temper (Drawn)


Tensile Strength (min)


45 ksi (310 MPa)


60 ksi (415 MPa)


Yield Strength (0.2% offset)


15 ksi (105 MPa)


45 ksi (310 MPa)


Elongation (in 2")


35% min


15% min


Hardness (Rockwell B)


45 HRB


85 HRB



Key Advantages


Superior Seawater Corrosion Resistance


  • Low corrosion rate (<0.025 mm/year) in flowing seawater.
  • Resists pitting and stress corrosion cracking in chloride environments.


Biofouling Resistance


  • Inhibits marine organism attachment – reduces maintenance costs.


High Thermal Conductivity

  • 29 W/m·K (vs. 16 W/m·K for 316 stainless steel) – ideal for heat exchangers.


Erosion Resistance

  • Withstands high-velocity seawater (up to 3.5 m/s).



Application Fields




Industry


Critical Applications


Marine Engineering


Shipboard condensers, seawater piping, desalination plants


Power Generation


Steam condenser tubes, heat exchanger tubing


Oil & Gas


Offshore platform cooling systems, brine heat exchangers


Chemical Processing


Acid cooling systems, evaporator tubes


Desalination


Multi-stage flash (MSF) evaporator tubes

ASTM B111 C71500 Copper Nickel Tube Superior Seawater Corrosion Resistance For Heat Exchangers 0
