ASTM A182 F316L BSP Union And Hex Nipple Pressure Forgings
ASTM A182 F316L BSP Union and Hex Nipple are pipe connectors forged from F316L stainless steel (compliant with ASTM A182 standards). They have excellent corrosion resistance (especially resistance to chlorides, acids and high temperature environments) and are suitable for harsh scenarios such as chemical, marine, food and medicine. Among them:

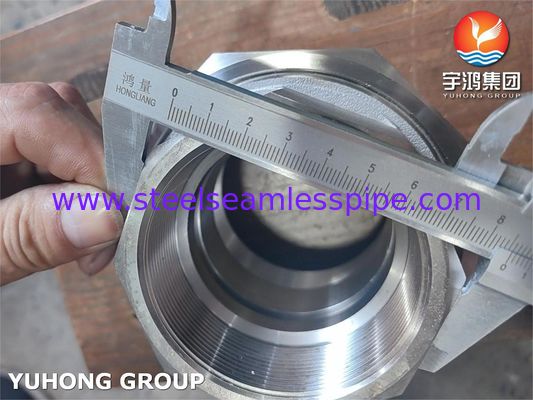

Union (slip joint): uses BSP British standard threads (conical BSPT or parallel BSPP), consisting of a nut, an internal thread end and an external thread end, supports quick disassembly and assembly, and is convenient for maintaining pumps, valves or filters;

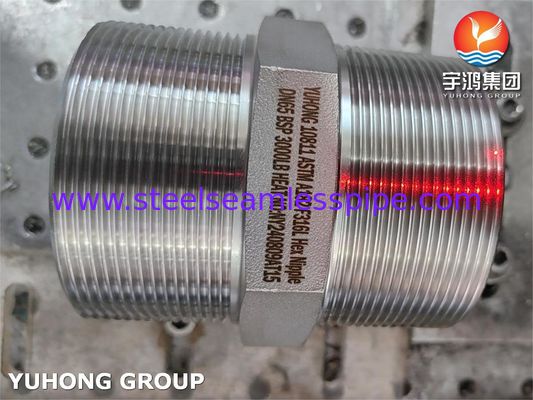

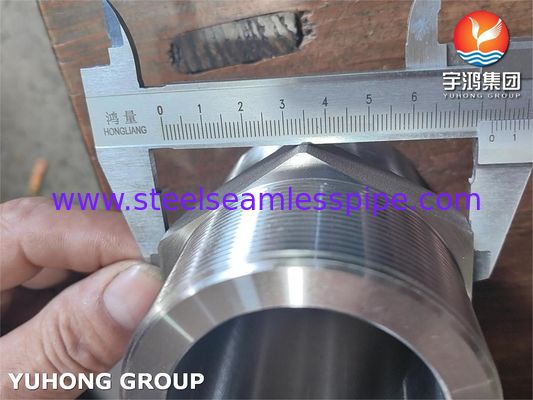

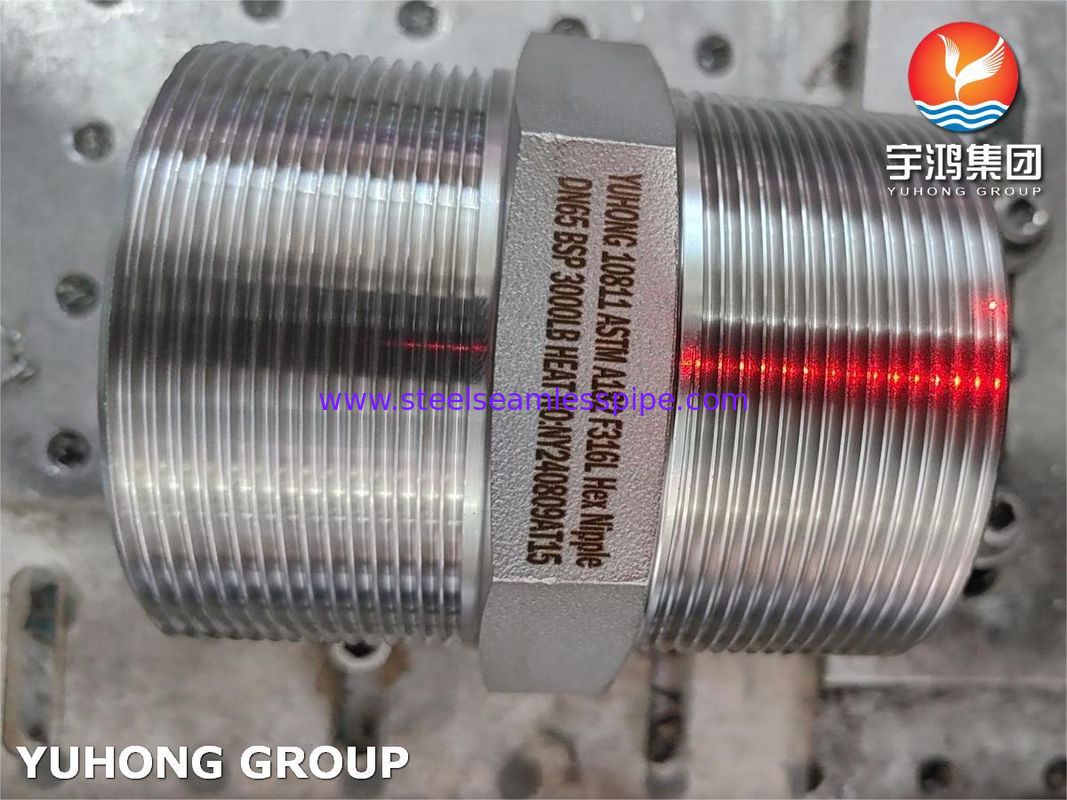

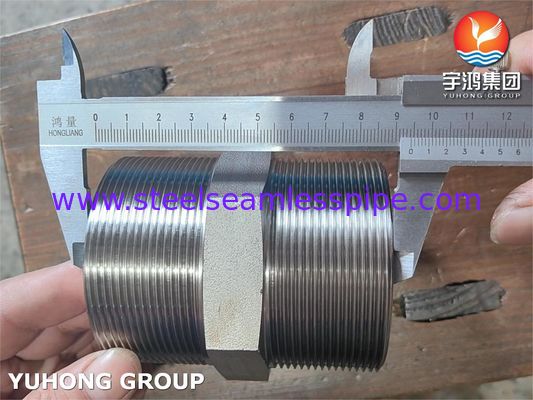

Hex Nipple (hexagonal short): Both ends are BSP external threads, and the middle is a hexagonal wrench position, which is used to extend pipelines, adapt pipe fittings or install instruments.
Both meet the ASME B16.11 pressure rating and have an operating temperature range of -200°C to +800°C (short term). When purchasing, it is necessary to specify the thread type (BSPT/BSPP), size and surface treatment requirements (such as electrolytic polishing), and request a material quality certificate (MTR) to ensure material compliance.
Stainless Steel Flange A/SA 182
| Trade Name |
Grade |
UNS # |
Flanges |
| 316L |
F316L |
S31603 |
A182 / SA182 |
ASTM A182 f316l flanges Chemical Composition
| Symbol |
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
| F316L |
0.03 |
2 |
0.045 |
0.03 |
1 |
10.0-15.0 |
16.0-18.0 |
2.00-3.00 |
Mechanical properties of ASTM A182 f316l flanges
| Material Symbol |
Tensile Strength min, MPa |
Yield point min, Mpa |
Elongation min, % |
Reduction of area min, % |
| ASTM A182 F316L |
485 |
170 |
30 |
50 |
Fittings
Function: Connects two pipes while allowing quick disassembly for maintenance.
Design: Consists of three parts - nut, female end and male end (both are BSP threads).
Use Cases: For systems that require frequent servicing (e.g. pumps, filters).
Hexagonal Fittings
Function: Short pipe section with BSP male threads on both ends and a hexagonal center.
British Standard Pipe Thread (BSPT or BSPP):
BSPT (tapered): Seals by interference fit (common in Asia/Europe).
BSPP (parallel): Requires sealing gaskets or O-rings.
Applications:
Chemical Plants: Handling acids, solvents or chlorides.
Marine Systems: Brine cooling lines, ballast systems.
Food and Pharmaceutical: Sanitary fluid transfer, frequent cleaning required.
Steam Lines: Low-pressure steam service (please verify pressure rating).
