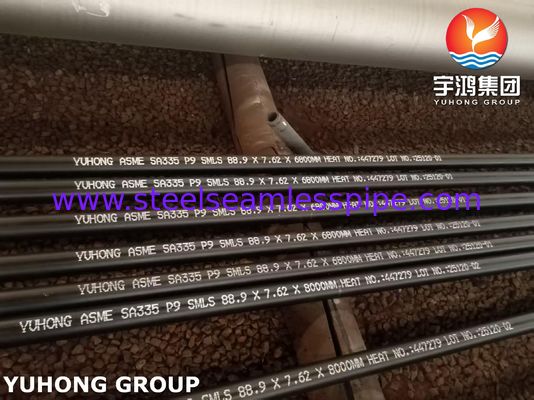

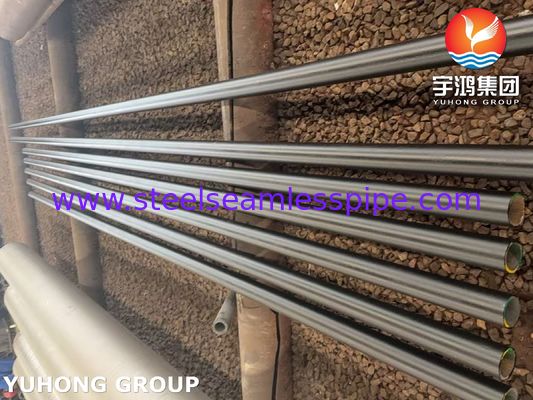

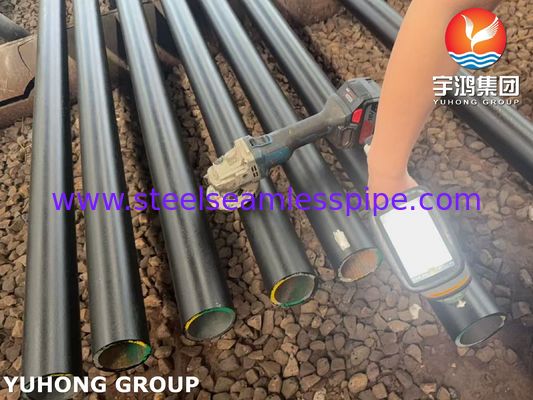

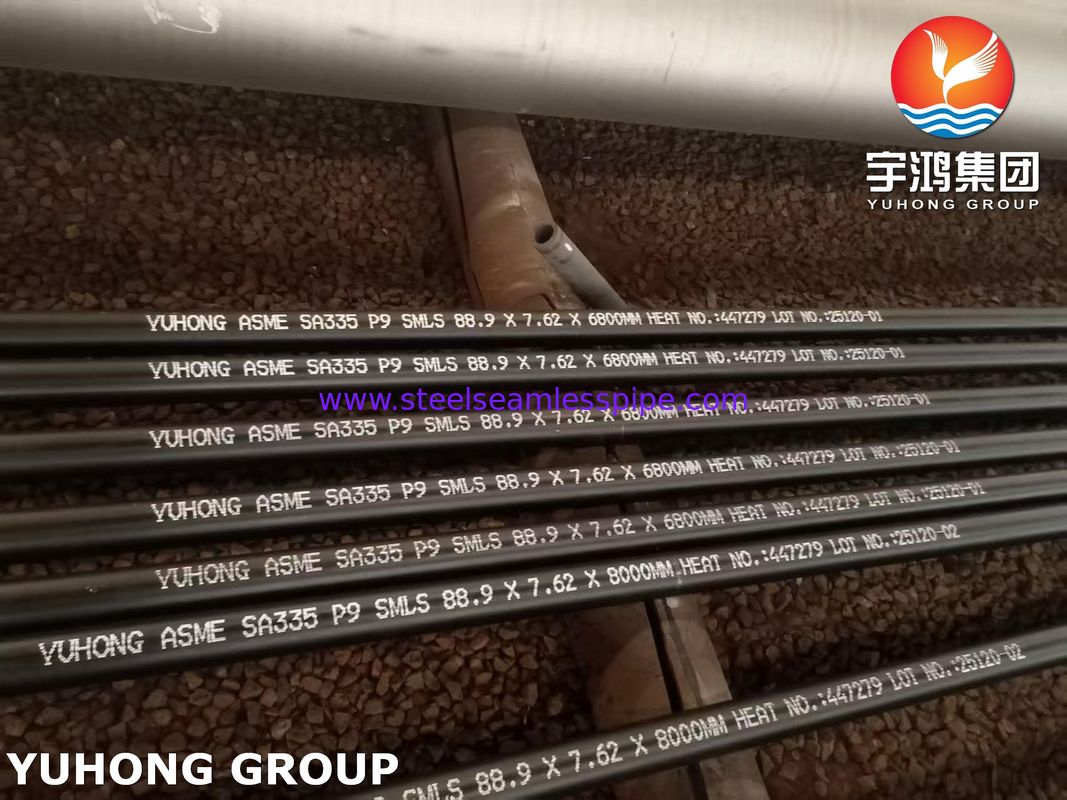

ASTM A335 P9 Alloy Steel Seamless Boiler Tube For Power Plant Oil Refinery Petrochemical

ASTM A335 P9 Alloy Steel Seamless Boiler Tube, Power Plant , Oil Refinery , Petrochemical Application

Chrome Moly alloy P9 is the addition of chromium and molybdenum. Chromium, or chrome, improves high-temperature strength, increases oxidation resistance and raises the tensile, yield and hardness at room temperatures. Molybdenum increases the strength, elastic limit, resistance to wear, impact qualities and hardenability. It increases the resistance to softening, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is also the most effective additive for increasing high temperature creep strength, or creep resistance. It also enhances the corrosion resistance of steel and inhibits pitting.

ASME SA-335/SA-335M:Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service.

ASTM A335: P9;

ASME SA335:P9;

EN 10216-2: 10CrMo9-10;
GB/T 5310: 12Cr2Mo;
JIS G3462: STBA 26;
ISO 9329: 12CrMo195;
GOST 550: 12ChM;

Non-destructive testing of P9 material should be performed by oneof themethods E213, E309 or E570.
ASTM E213: Practice for Ultrasonic Testing of Metal Pipe and Tubing;
ASTM E309: Practice for Eddy Current Examination of Steel Tubular ProductsUsingMagnetic Saturation;
ASTM E570: Practice for Flux Leakage Examination of Ferromagnetic Steel TubularProducts;


A335/SA335  P9 pipe is often used in the oil and natural gas industry due to its high strength. Grade P9 great performance properties make it suitable for energy related applications.
1. Refinery
2. Machine building
3. Oil and gas
4. Power generation
5. Petrochemicals
6. Gas processing
7. Fertilizer
8. Sugar
