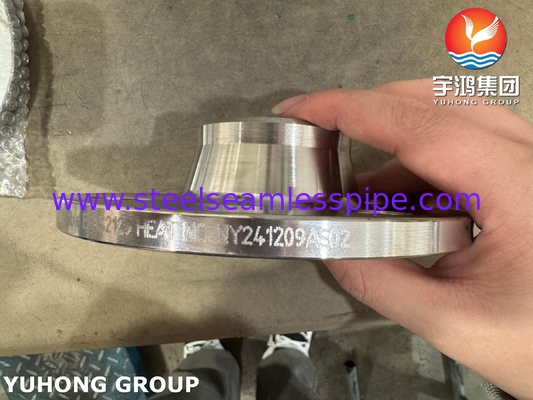

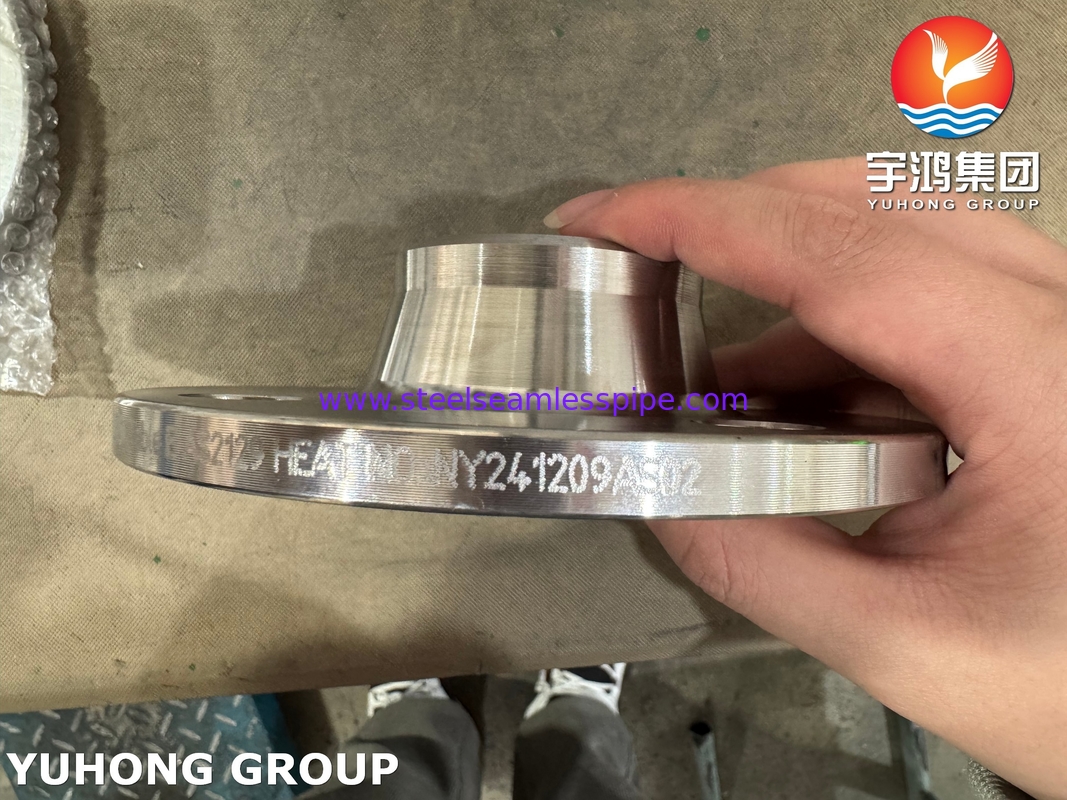

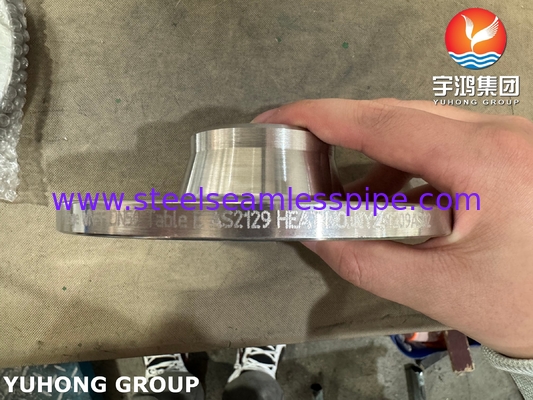

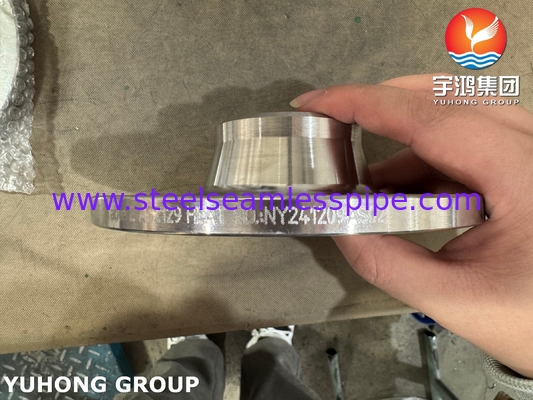

ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards

ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards

  • ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards
  • ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards
  • ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards
  • ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards
ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API , ABS, DNV, GL , LR, NK.
Model Number: ASTM A182 F60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Supply Ability: According To Client's Request
Contact Now
All Products
Stainless Steel Seamless Pipe (288)
Stainless Steel Seamless Tube (276)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (105)
Fin Tube (626)
Heat Exchanger (17)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (79)
Copper Alloy Tube (224)
Alloy Steel Tube (183)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (143)
Steel Fitting (801)
Steel Flange (588)
Others (388)
Cladding Parts (7)
Detailed Product Description
Product Name: Duplex Steel Flange Material: F60
Pressure: 150lb,300lb,600lb,900lb,1500lb Standard: ANSI B16.5
Type: Weld Neck Inspection: Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection
Highlight:

AS2129 Weld Neck Flange

,

ASTM A182 F60 Weld Neck Flange



ASTM A182 F60 Weld Neck Flange AS2129





Description



This product is a butt welding flange (Weld Neck) that meets the size requirements of the Australian standard AS2129. Its sealing surface is a flat face (FF). The material is duplex stainless steel (UNS S32205) that meets the ASTM A182 F60 standard. It has both high strength and excellent corrosion resistance (especially chloride corrosion resistance). It is suitable for harsh working conditions that require compliance with Australian standards and require corrosion resistance and high pressure resistance. When using it, it is necessary to ensure that the supporting equipment also has a flat sealing surface or use a suitable full-flat gasket.



The size of the AS 2129 flange is determined by the specific "table" (D, E or F) it follows. Table D corresponds to the European EN 1092-1 (DIN) size (PN series), Table E corresponds to the American ASME B16.5 size (Class series), and Table F is a pure metric size series unique to Australia. When specifying or selecting an AS 2129 flange, it is important to specify the "Table" to which it belongs (e.g. AS 2129 Table D PN16 DN100 WN RF), because the dimensions (e.g. PCD, number of bolt holes, thickness, etc.) between different tables may be completely different, even if the nominal size and pressure class are similar. This multi-table structure allows AS 2129 to adapt to equipment from different sources and international project requirements, while retaining Australian local size options.











F60双相不锈钢法兰的可用尺寸

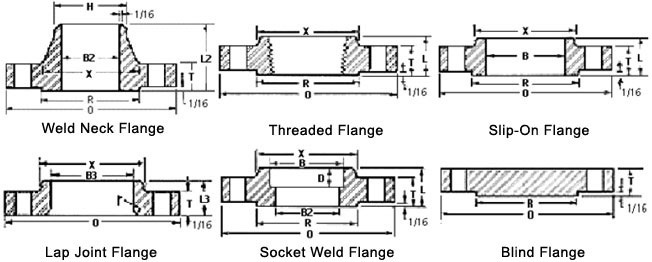

Weight chart of F60 Duplex Steel Flanges





Standard Class Bolt Hole Dia Dia of Bolt Circle Dia Size of Bolt Bolts Number
AS 2129 Flange
Table D Flanges 14 67 95 13 4
Table C Flanges 14 67 95 13 4
Table J Flanges 17 83 114 16 4
Table F Flanges 14 67 95 13 4
Table E Flanges 14 67 95 13 4
Table H Flanges 17 83 114 16 4
AS4087 Flanges
ANSI B16.5 Flanges ANSI 150 Flanges 16 60 89 13 4
PN14 Flanges 14 67 95 M12 4
ANSI 1500 Flanges 22 83 121 19 4
ANSI 600 Flanges 16 67 95 13 4
ANSI 300 Flanges 16 67 95 13 4
ANSI 900 Flanges 22 83 121 19 4
ISO 7005 (DIN) Flange PN10 Flanges 14 65 95 M12 4
PN6 Flanges 11 55 80 M10 4
PN40 Flanges 14 65 95 M12 4
PN20 Flanges 16 60.5 90 M14 4
PN16 Flanges 14 65 95 M12 4
PN25 Flanges 14 65 95 M12 4









CHEMICAL COMPOSITION OF ASTM A182 F60 SLIP ON FLANGE



C Mn Si P S Cr Mo Ni N Fe
0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.00-23.00 2.50-3.50 4.50-6.50 0.08-0.20 Bal









MECHANICAL PROPERTIES OF ASTM A182 F60 SLIP ON FLANGE



Tensile Strength, MPa Yield Strength, Min, Mpa Elongation % min.
550 800 15









EQUIVALENT GRADES OF ASTM A182 F60 SLIP ON FLANGE



Standard Werkstoff Nr. UNS
Alloy F60 (Duplex Steel) 1.4462 UNS S32205













ASTM A182 F347 Flange Application







Oil, Gas and Energy



Offshore platforms, LNG facilities, refinery piping systems.



High pressure scenarios: Class 300/600 (Table E) flanges are used for high-pressure gas pipelines; PN35/PN40 (Table D) flanges are used for steam systems.



Corrosive environments: Duplex stainless steel (such as ASTM A182 F60) flanges resist seawater/hydrogen sulfide corrosion.



Water and Sewage Treatment



Low pressure and large diameter: Table F flanges (500–2750 kPa) are used for water mains (DN500+).



Cast iron equipment compatible: Flat Face (FF) flanges protect brittle valves/pump bodies.



Acidic and alkaline media transportation (such as slurry pipelines), high-temperature reaction vessel connections.



Seal reliability: Ring Type Joint (RTJ) flanges are used for toxic media (Class 900+).



Cooling systems of thermal power plants, auxiliary pipelines of nuclear power plants, and bridge fire protection pipelines.

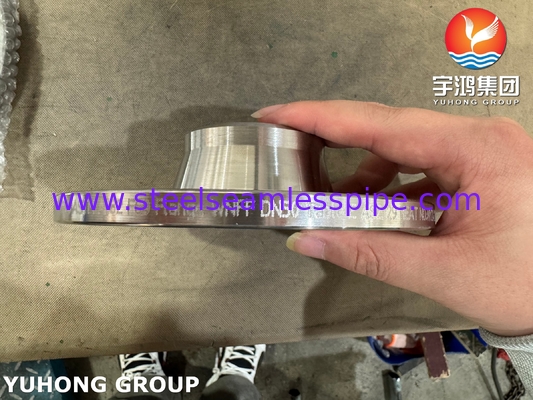

ASTM A182 F60 Weld Neck Flange AS2129 Australian Standards 1
