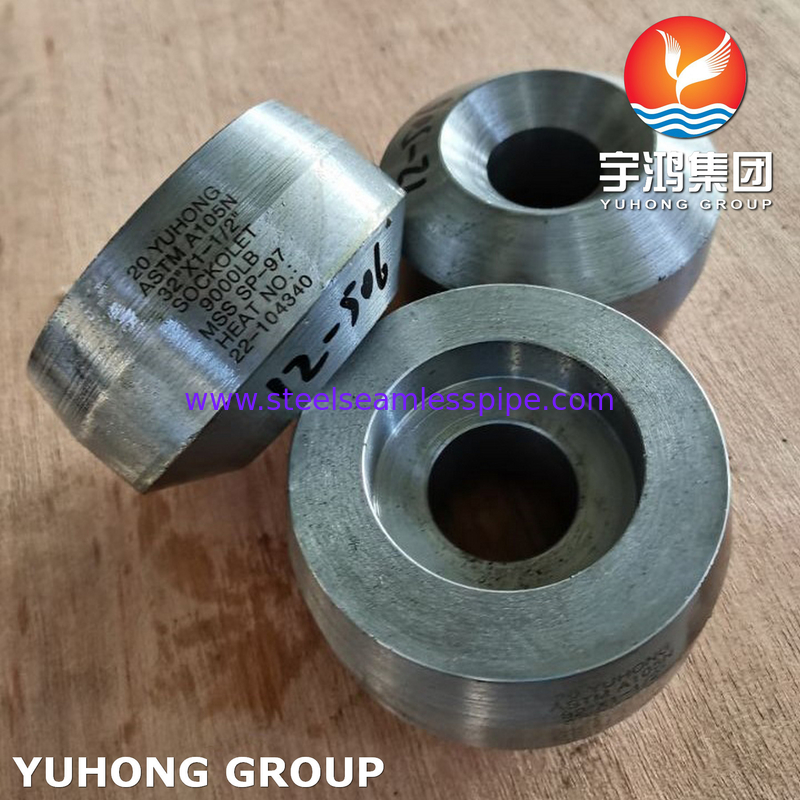

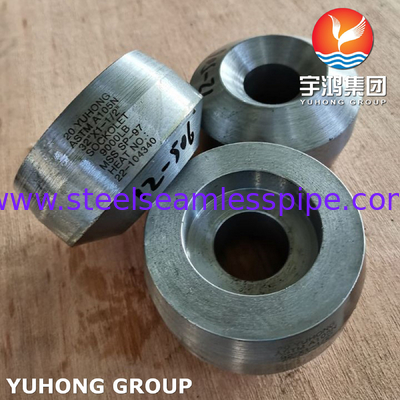

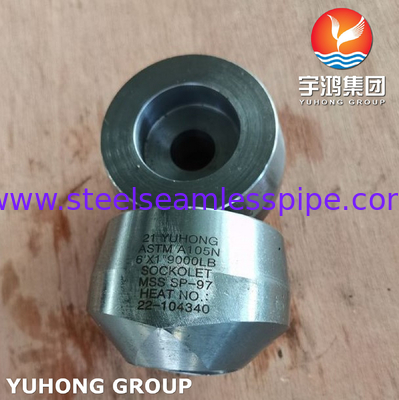

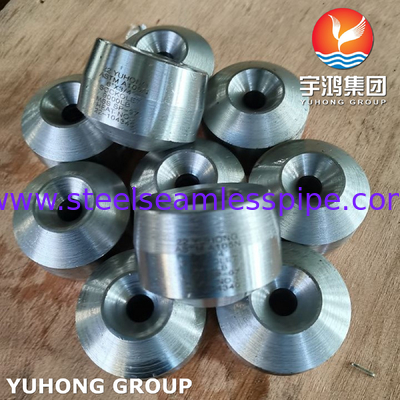

A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97

A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97

  • A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97
  • A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97
  • A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97
  • A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97
A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: MSS SP-97, B16.11
Model Number: A105
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Ply-wooden Case / Iron Case
Delivery Time: Depending on QTY
Payment Terms: L/C at sight, T/T
Supply Ability: 50 TONS PER MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Name: Socket Welding Outlet Material: A105
Pressure: 3000#,6000# Branch Size: NPS 1/8 - 4
Test: Hydrostatic Test, Proof Testing
Highlight:

Integrally Reinforced Branch Outlet Fittings

,

A105 Branch Outlet Fittings

,

Socket Welding Branch Outlet Fittings

A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97



YUHONG SW Weldolets are branch connection fittings designed for socket-welding onto main pipelines, enabling secure high-pressure fluid diversion without compromising structural integrity. They conform to standards such as MSS SP-97 and ASME B16.11.



A105 Carbon Steel Material Properties​​

​​Chemical Composition​​ (%)

Carbon (C): ≤0.35 | Manganese (Mn): 0.60–1.05 | Silicon (Si): ≤0.35

Sulfur (S): ≤0.050 | Phosphorus (P): ≤0.040 | Chromium (Cr): ≤0.30



​​Mechanical Properties​​

Tensile Strength: ≥485 MPa | Yield Strength: ≥250 MPa

Elongation (δ): ≥22% | Hardness: ≤187 HB



90° Branch Outlets – Buttwelding

Outlet
(NPS)		 A (Face of Fitting to Crotch)
Standard Extra Strong Schedule 160
Reducing Full Reducing Full Reducing Full
1/8 0.62 – 0.62 – – –
1/4 0.62 – 0.62 – – –
3/8 0.75 – 0.75 – – –
1/2 0.75 0.75 0.75 0.75 1.12 1.12
3/4 0.88 0.88 0.88 0.88 1.25 1.25
1 1.06 1.06 1.06 1.06 1.50 1.50
1¼ 1.25 1.25 1.25 1.25 1.75 1.75
1½ 1.31 1.31 1.31 1.31 2.00 2.00
2 1.50 1.50 1.50 1.50 2.18 2.18
2½ 1.62 1.62 1.62 1.62 2.44 2.44
3 1.75 1.75 1.75 1.75 2.88 2.88
3½ 1.88 2.00 1.88 2.00 - -
4 2.00 2.00 2.00 2.00 3.31 3.31
5 2.25 2.25 2.25 2.25 3.69 3.69
6 2.38 2.38 3.06 3.06 4.12 4.12
8 2.75 2.75 3.88 3.88 – –
10 3.06 3.06 3.69 3.50 – –
12 3.38 3.38 4.06 3.94 – –
14 3.50 3.50 3.94 4.12 – –
16 3.69 3.69 4.18 4.44 – –
18 3.81 4.06 4.38 4.69 – –
20 4.00 4.62 4.69 5.00 – –
24 4.56 5.38 5.50 5.50 – –



Tolerances: 1 ⁄8 – 3 ⁄4 ± .03 in. 1 – 4 ± .06 in. 5 – 12 ± .12 in. 14 – 24 ± .19 in.



Listing of MSS Standard Practices:

SP-6-2012

SP-9-2008

SP-25-2008

SP-42-2009

SP-43-2008

SP-44-2010

SP-45-2003

SP-51-2012

SP-53-1999 (R 2007)

SP-54-1999 (R 2007)

SP-55-2011

SP-58-2009

SP-60-2012

SP-65-2012

SP-68-2011

SP-71-2011

SP-72-2010

SP-75-2008

SP-78-2011

SP-79-2011

SP-80-2008

SP-81-2006a

SP-83-2006

SP-85-2011

SP-86-2009

SP-87-1991 (R 1996 – Reinstated 2011)

SP-88-2010

SP-91-2009

SP-92-2012

SP-93-2008

SP-94-2008

SP-95-2006

SP-96-2011

SP-97-2012

SP-98-2012

SP-99-2010

SP-100-2009

SP-101-1989 (R 2001)

SP-102-1989 (R 2001)

SP-104-2012

SP-105-2010

SP-106-2012

SP-108-2012

SP-109-2012

SP-110-2010

SP-111-2012

SP-112-2010

SP-113-2012

SP-114-2007

SP-115-2010

SP-116-2011

SP-117-2011

SP-118-2007

SP-119-2010

SP-120-2011

SP-121-2006

SP-122-2012

SP-123-1998 (R 2006)

SP-124-2012

SP-125-2010

SP-126-2007

SP-127-2001

SP-128-2012

SP-129-2003

SP-130-2003

SP-132-2010

SP-134-2012

SP-135-2010

SP-137-2007

SP-138-2009

SP-139-2010

SP-140-2012

SP-141-2012

SP-142-2012

SP-143-2012

A105 Integrally Reinforced Forged Branch Outlet Fittings Socket Welding MSS SP-97 0
