1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges

1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges

  • 1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges
  • 1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges
  • 1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges
  • 1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges
1/2" to 24" ASTM B462 UNS10276 WNRF Flanges Nickel Alloy Weld Neck Flanges
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B462 UNS10276
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case
Delivery Time: According to quantity
Payment Terms: ,L/C,T/T
Supply Ability: 1000Tons/Month
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Material Standard: ASTM B462 UNS Number: N10276 (UNS10276)
Flange Specification: ASME B16.5 Flange Type: Weld Neck Raised Face (WNRF)
Tensile Strength: ≥ 690 MPa (100 Ksi) Corrosion Resistance: HCl, H₂SO₄, Cl₂ Media, Seawater, FGD Environments
Highlight:

1/2 WNRF Flanges

,

Nickel Alloy Weld Neck Flanges


Professional Grade ASTM B462 UNS10276 WNRF Flanges for Extreme Corrosion Resistance


Introduction

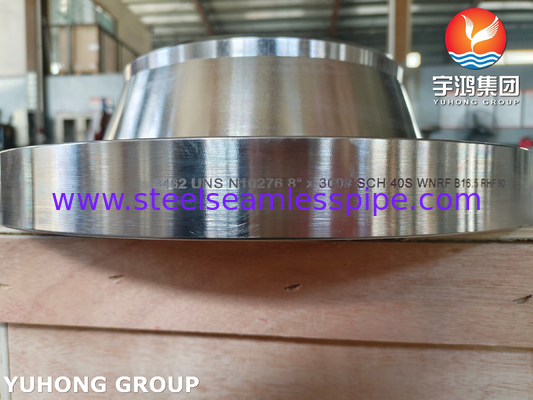

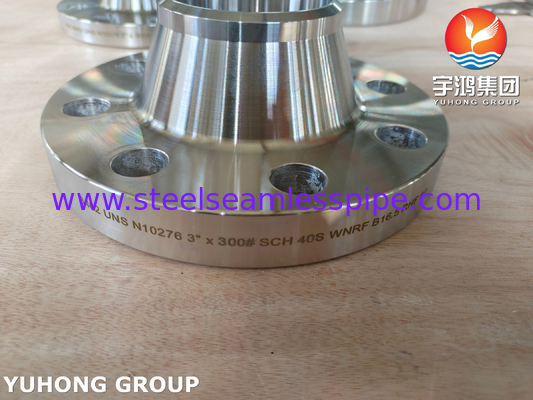

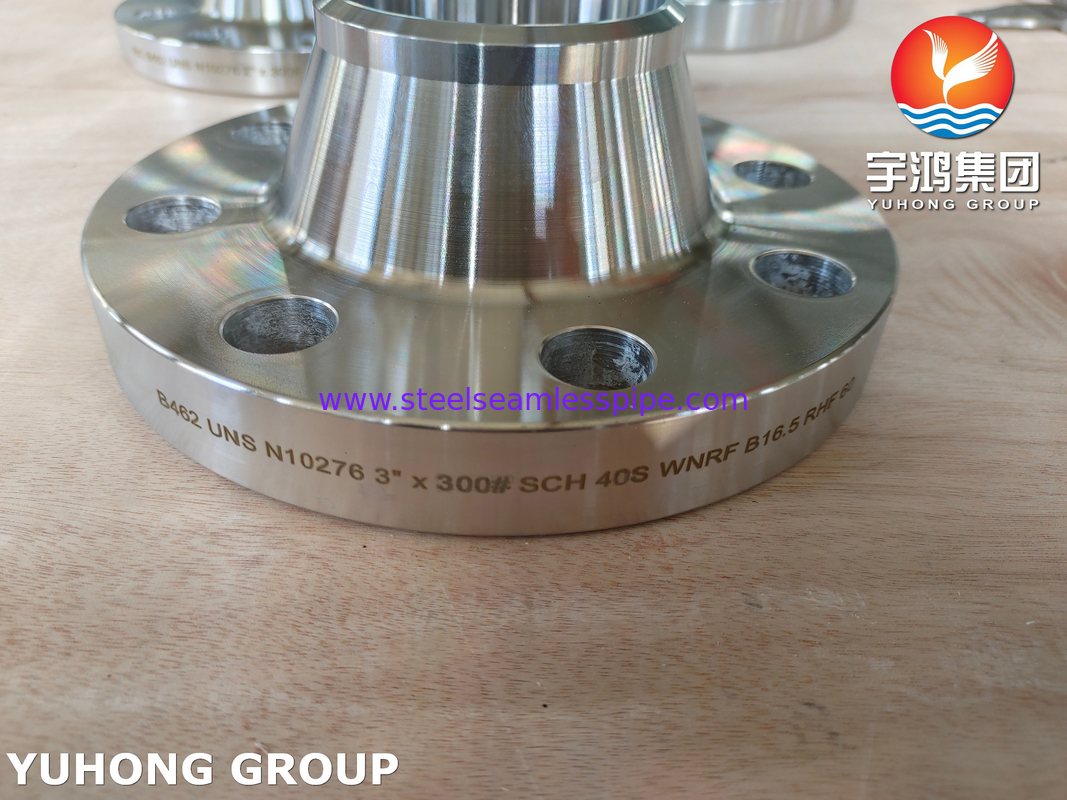

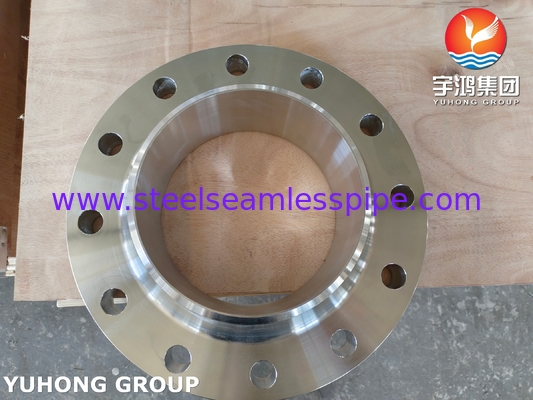

ASTM B462 UNS10276 (Hastelloy C276) Weld Neck Raised Face (WNRF) flanges deliver unmatched corrosion resistance in aggressive chemical and high-temperature environments. Manufactured in full compliance with ASTM B462 for wrought nickel-alloy piping components and ASME B16.5 for dimensional standards, these flanges are engineered for critical applications in chemical processing, pollution control, and offshore systems.


Key Material Specifications



PropertySpecification
Material StandardASTM B462
UNS NumberN10276 (UNS10276)
Common NameHastelloy C276
Flange StandardASME B16.5
Face TypeRaised Face (RF)
ConnectionWeld Neck (WN)


Exact Chemical Composition (ASTM B462)



ElementMin (%)Max (%)Role
Nickel (Ni)Bal.-Base Metal, Corrosion Resistance
Chromium (Cr)14.516.5Oxidation Resistance
Molybdenum (Mo)15.017.0Pitting/Crevice Resistance
Iron (Fe)4.07.0Strength
Tungsten (W)3.04.5Corrosion Resistance
Cobalt (Co)-2.5High-Temp Stability
Manganese (Mn)-1.0Deoxidizer
Silicon (Si)-0.08Deoxidizer
Carbon (C)-0.01Prevents Sensitization
Sulfur (S)-0.03Impurity Control


Mechanical Properties (Typical Values at 20°C)


PropertyValueASTM B462 Requirement
Tensile Strength≥ 690 MPa (100 ksi)≥ 690 MPa
Yield Strength (0.2% Offset)≥ 283 MPa (41 ksi)≥ 283 MPa
Elongation (% in 50mm)≥ 40%≥ 40%
Hardness (Rockwell B)≤ 100 HRB≤ 100 HRB


Key Advantages of UNS10276 WNRF Flanges


  • Extreme Corrosion Resistance: Resists pitting, crevice corrosion, and stress corrosion cracking (SCC) in oxidizing & reducing acids (HCl, H₂SO₄, Cl₂ media).
  • Thermal Stability: Maintains integrity from cryogenic (-196°C) to high-temp (1040°C) environments.
  • Weldability: Low carbon content prevents carbide precipitation during welding (no post-weld heat treatment required).
  • ASME Compliance: Certified for ASME B16.5 Pressure Classes 150# to 2500#.


Critical Application Areas


  • Chemical Processing: Reactors, acid storage tanks, heat exchangers.
  • Pollution Control: Flue gas desulfurization (FGD) scrubbers, waste incineration systems.
  • Oil & Gas: Offshore platforms, sour gas piping (resists H₂S corrosion).
  • Pharmaceutical: CIP/SIP systems requiring ultra-high purity.
  • Marine Engineering: Seawater handling, ballast water systems.


Technical Compliance & Certifications


  • Conforms to: ASTM B462, ASME SB462, ASME B16.5
  • Certificates: Mill Test Reports (MTR) per EN 10204 3.1, NACE MR0175 compliant
  • Available Pressure Ratings: Class 150, 300, 600, 900, 1500, 2500
