ASTM A312 TP310S Stainless Steel Seamless Pipe For Oil Gas

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, BV, GOST, TS, CCS, CNNC, ISO
Model Number:	TP310S

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Ply-wooden case / bundle
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C at sight
Supply Ability:	10000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Certificate:	LR, BV, DNV, GL, ABS, KR, CCS, TS, PED, AD2000, ASME II , III,	Material Grade:	TP310S
Standard:	ASTM A312	Surface:	Bright Annealed And Pickled And Polished
Size:	1/8"to 36"	W.T.:	0.8 Mm To 12.7mm
Highlight:	seamless pipe For Oil Gas , ASTM A312 Seamless Pipe , TP310S Seamless Pipe

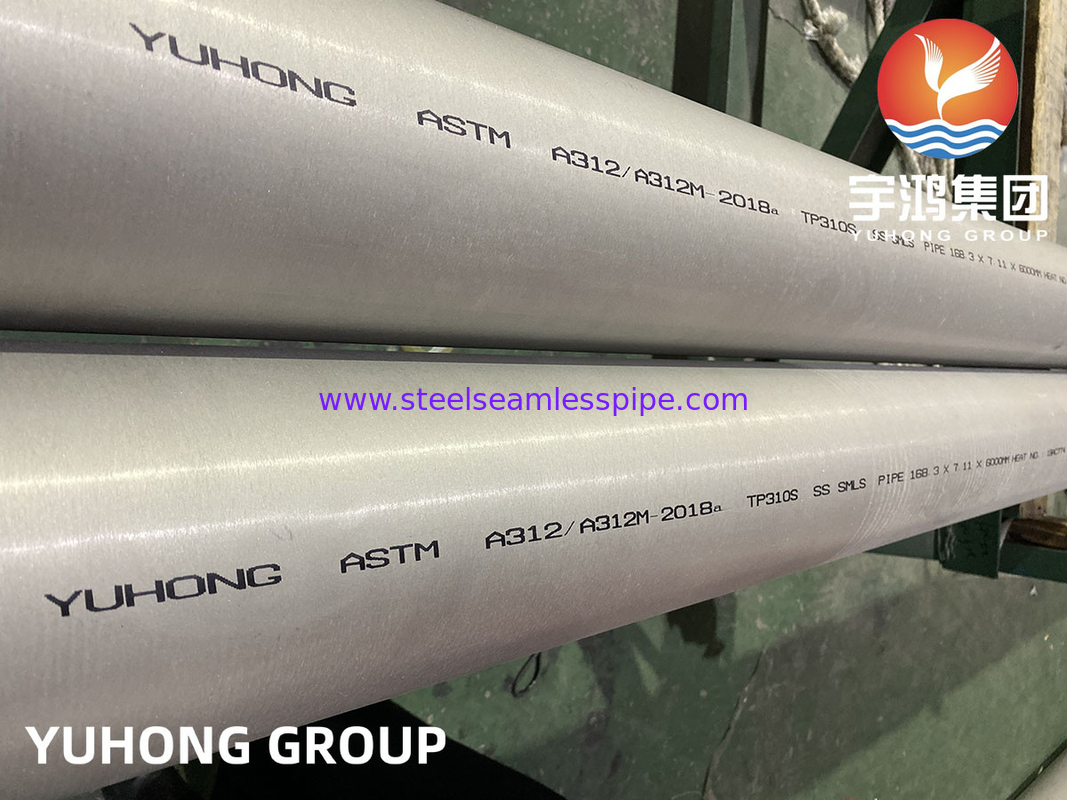

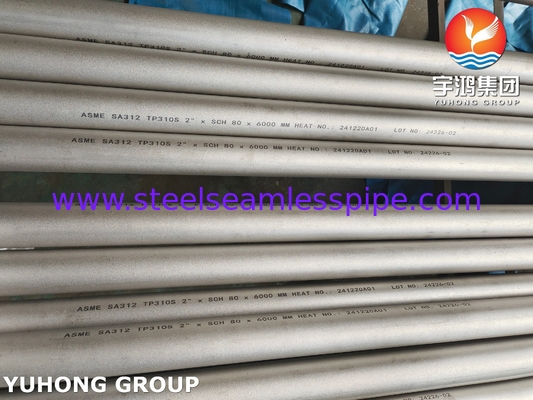

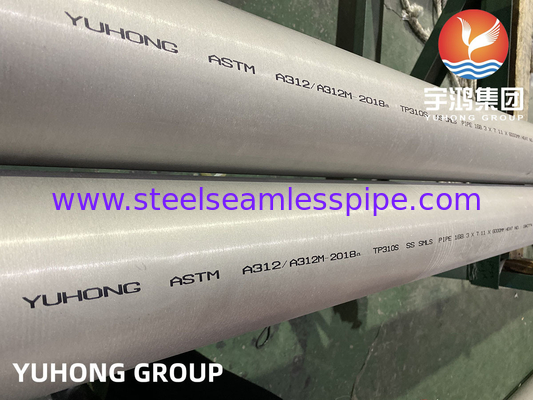

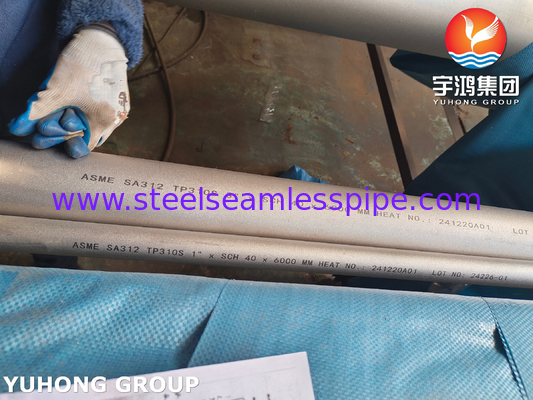

ASTM A312 TP310S Stainless Steel Seamless Pipe For Oil and Gas

ASTM A312 TP310S is a high-alloy austenitic stainless steel pipe designed for high-temperature and corrosion-resistant applications. It is a seamless pipe manufactured under the ASTM A312 standard, which specifies seamless, straight-seam, or welded stainless steel pipes for high-temperature and general corrosion service.

Key Features:

Material Grade: TP310S (UNS S31008)
Chemical Composition: High chromium (24-26%) and nickel (19-22%) content, providing excellent resistance to oxidation and corrosion at elevated temperatures.
Heat Resistance: Exceptional resistance to oxidation up to 1100°C (2012°F) in continuous service and 1035°C (1895°F) in intermittent service.
Corrosion Resistance: Superior resistance to intergranular corrosion, pitting, and stress corrosion cracking, even in harsh environments.
Mechanical Properties:
- Tensile Strength: ≥515 MPa (minimum)
- Yield Strength: ≥205 MPa (minimum)
- Elongation: ≥35%
Seamless Design: Ensures uniform strength, reliability, and leak-free performance, especially under high-pressure conditions.
Applications: High-temperature environments such as heat exchangers, furnace components, chemical process equipment, and power generation.

Below is a detailed table summarizing the thermal, physical, and mechanical properties of ASTM A213 TP310S:

Property Type	Property	Value	Significance
Thermal Properties	Thermal Conductivity	14.2 W/m·K (20°C), 19 W/m·K (500°C)	Moderate conductivity for high-temp stability.
	Coefficient of Thermal Expansion	16.1 × 10⁻⁶ /°C (20–1000°C)	Low expansion reduces thermal distortion.
	Specific Heat Capacity	500 J/kg·K (20°C)	Efficient heat absorption.
	Melting Point	1400–1450°C	Stable at extreme heat.
	Oxidation Resistance	Continuous: 1100°C; Intermittent: 1035°C	Excellent performance in oxidizing atmospheres.
Physical Properties	Density	7.9 g/cm³	High strength-to-weight ratio.
	Modulus of Elasticity	200 GPa	High rigidity for dimensional stability under load.
	Electrical Resistivity	0.78 μΩ·m (20°C)	Good resistivity for high-temperature electrical systems.
	Magnetic Permeability	Non-magnetic (annealed condition)	Suitable for non-magnetic applications.
Mechanical Properties	Tensile Strength	515 MPa (min), 735 MPa (max)	High durability in high-stress conditions.
	Yield Strength (0.2% offset)	205 MPa (min)	Resists deformation under load.
	Elongation	35% (min)	High ductility for forming and shaping.
	Hardness	217 HBW, 95 HRB	Balances wear resistance and machinability.
	Creep Strength	Excellent at elevated temperatures	Prolonged use in high-temperature environments.
	Impact Strength	High	Toughness at both room and elevated temperatures.

Applications of ASTM A312 TP310S Pipe:

Petrochemical and Chemical Industries: Handles corrosive materials and high-temperature fluids.
Power Plants: Suitable for superheater and reheater tubes in boilers.
Furnaces and Thermal Equipment: Used in environments requiring excellent heat resistance.
Food and Beverage Industry: For processing environments requiring cleanliness and corrosion resistance.

Benefits of Using ASTM A312 TP310S:

Durability: High mechanical strength and toughness, even at elevated temperatures.
Corrosion Resistance: Excellent performance in acidic and oxidizing environments.
Versatility: Seamless design makes it suitable for critical applications.
Low Maintenance: Longer service life reduces maintenance costs.

Standards and Specifications:

Manufacturing Standard: ASTM A312
Pipe Type: Seamless
Dimension Standards: ASME B36.19 and B36.10
Available Sizes: Typically ranges from 1/8” to 24” in diameter, with customized sizes available upon request.
Surface Finish: Pickled, polished, or as per customer requirements.
