ASTM B564 N10276 Hastelloy C276 Weld Neck Flange RF FF ASME B16.5

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B564 N10276

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	Negotiable
Packaging Details:	Plywooden Case /Iron Case
Delivery Time:	15-30days
Payment Terms:	L/C, T/T
Supply Ability:	1500 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM B564	Grade:	N10276
Type:	Weld Neck	Pressure Class:	Class 150/300/600/900/1500/2500
Face Type:	Raised Face (RF) / Flat Face (FF)	Dimensions:	ASME B16.5
Highlight:	Hastelloy C276 weld neck flange , ASTM B564 steel flange , ASME B16.5 RF flange

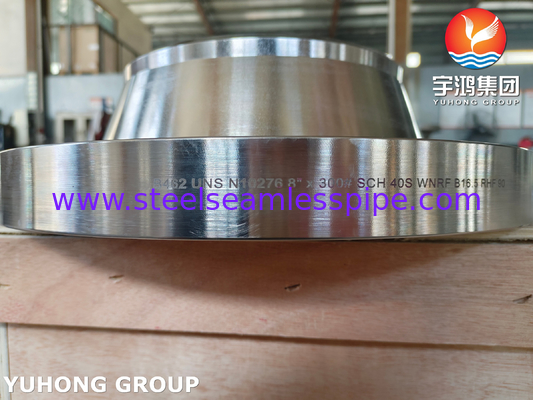

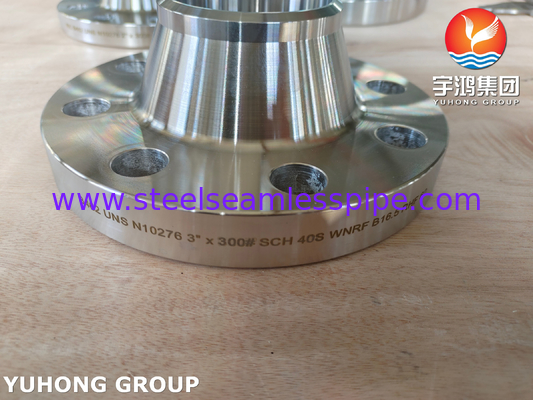

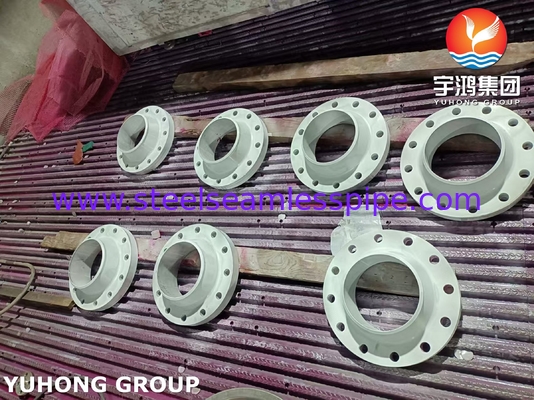

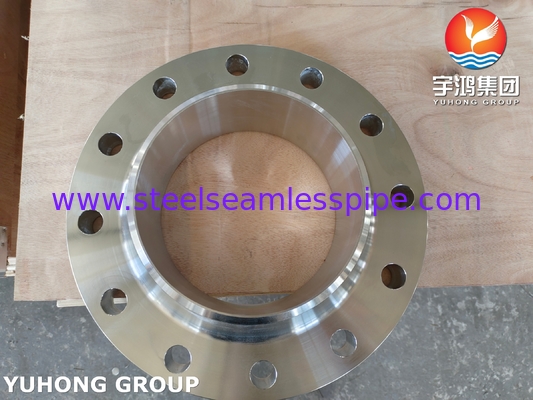

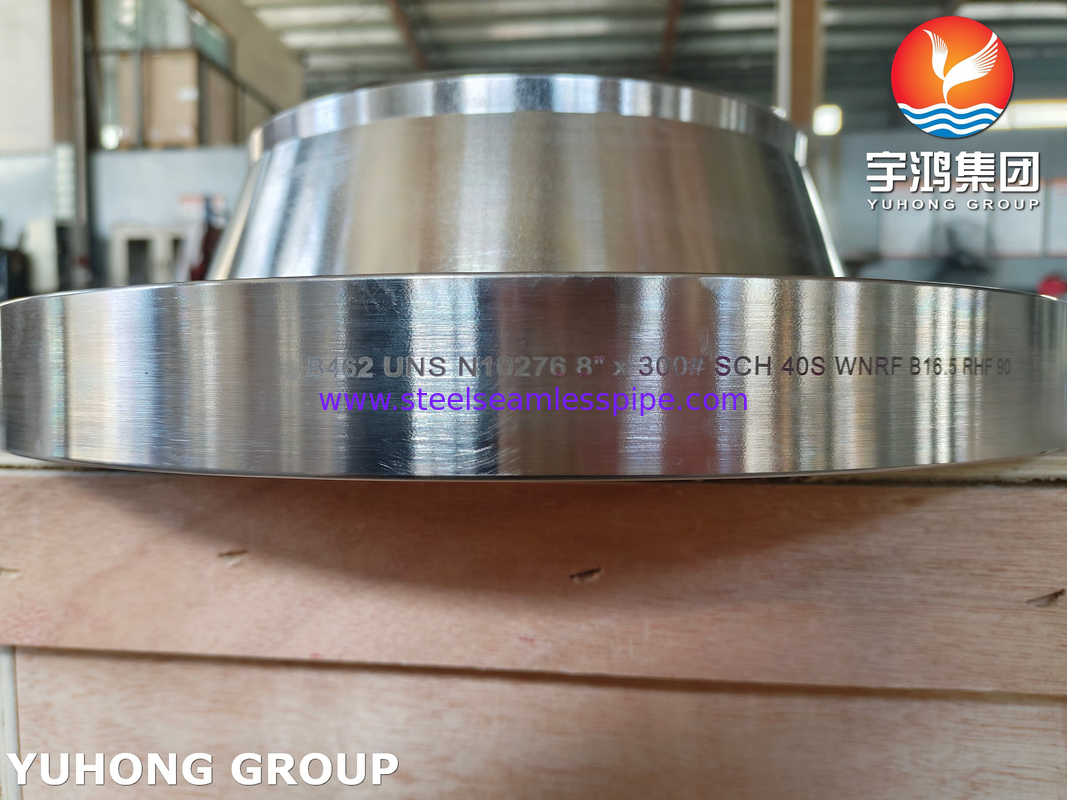

ASTM B564 N10276 (Hastelloy C276) Nickel Alloy Weld Neck Flange RF/FF Corrosion Resistant for Power Plants

YUHONG GROUP specializes in the manufacture of high-performance nickel alloy flanges for critical industrial applications. Our ASTM B564 N10276 (Hastelloy C276) Weld Neck Flanges are designed for power plants and harsh chemical environments. We combine over 30 years of metallurgical expertise with full ASME/EN certification to ensure top-quality products.

Chemical Requirements for Low Carbon Nickel-Molybdenum-Chromium Alloy UNS N010276

Element

Nickel

Iron

Manganese

Carbon

Silicon

Sulfur

Chromium

Molybdenum

Phosphorus

Tungsten

Cobalt

Vanadium

UNS N10276

Balance

4.0–7.0

≤1.0

≤0.010

≤0.08

≤0.03

14.5–16.5

15.0–17.0

≤0.04

3.0–4.5

≤2.5

≤0.35

Test Types and Standards Summary

Test Type	Standard Method
Chemical Analysis	ASTM E76, E350, E1473
Tensile Testing	ASTM E8
Grain Size Measurement	ASTM E112
Rounding of Test Results	ASTM E29

Mechanical Properties of UNS N10276 (Solution Annealed)

Property	Value
Material & Condition	Low-carbon nickel-chromium-molybdenum alloy, solution annealed
Maximum Section Thickness	Not specified (typical for standard forms)
Tensile Strength, min	100 ksi (690 MPa)
Yield Strength (0.2% offset), min	41 ksi (283 MPa)
Elongation (2" or 50mm or 4D), min	40%
