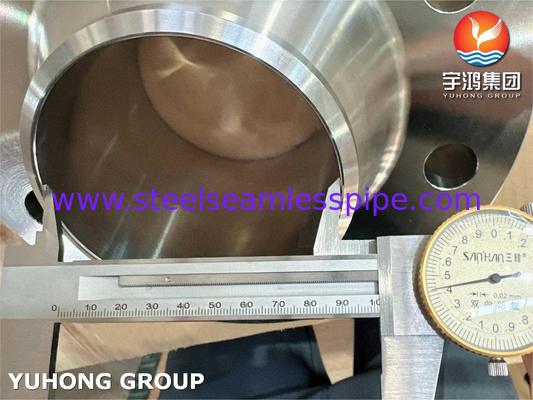

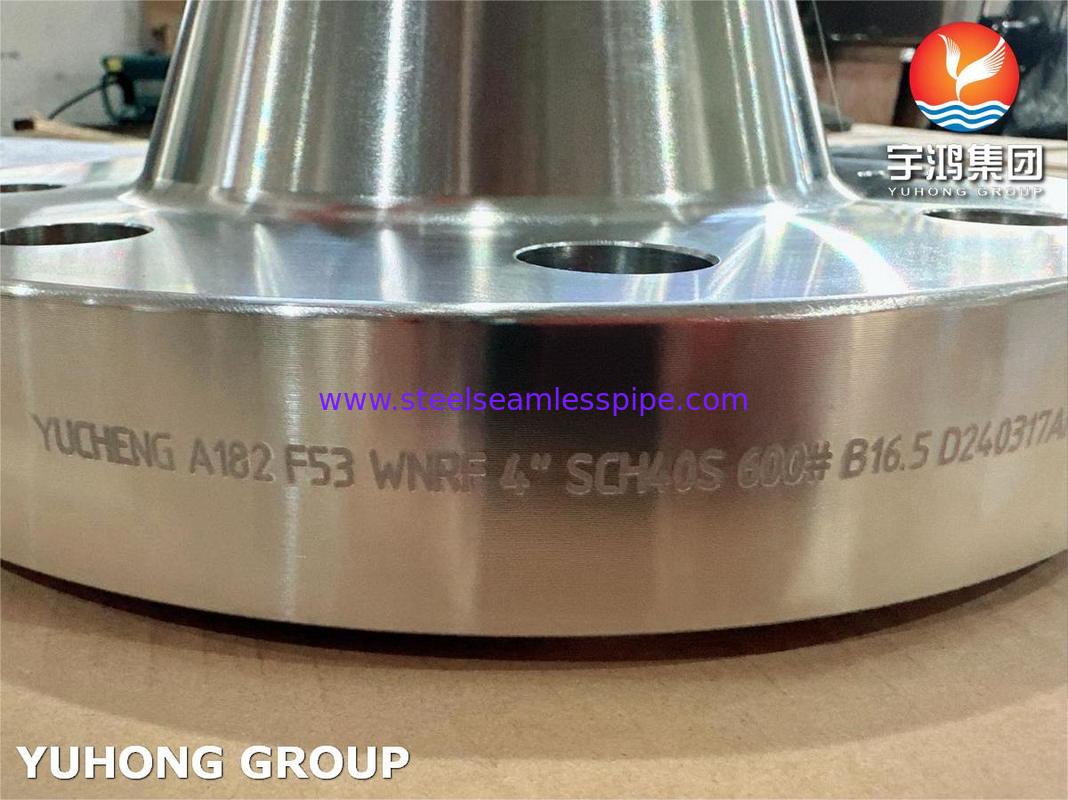

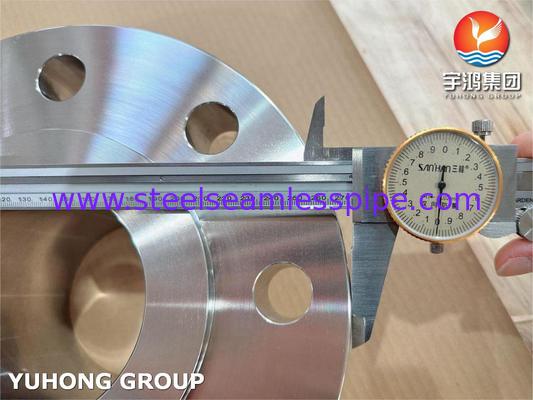

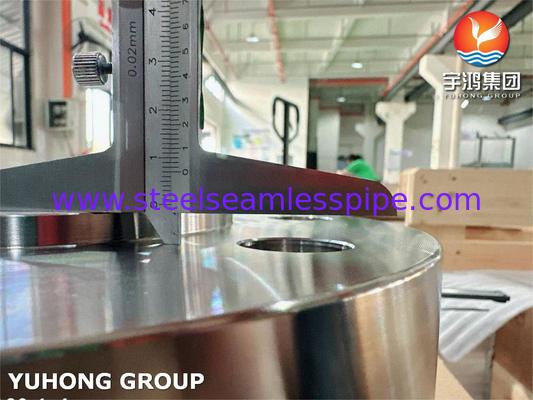

ASTM A182 F53 UNS S32750 WNRF Flanges ASME B16.5 Class 150-2500

ASTM A182 F53 (UNS S32750) Weld Neck Raised Face Flanges | ASME B16.5 Class 150-2500 | Super Duplex

1. Introduction: Premium Super Duplex Solution

ASTM A182 F53 (UNS S32750) Weld Neck Raised Face (WNRF) Flanges deliver exceptional corrosion resistance and 2X higher strength than standard austenitic stainless steels. Manufactured to ASME B16.5/B16.47 standards, these flanges are ideal for aggressive environments in oil/gas, chemical processing, and offshore applications.

2. Chemical Composition (ASTM A182)

Precise alloy balance ensures pitting/crevice corrosion resistance:

3. Equivalent Grades

Interchangeable specifications for international procurement:

4. Mechanical Properties (Room Temperature)

Combines high strength with ductility:

5. Key Advantages

•  Extreme Chloride Resistance: Withstands sour gas (H₂S), seawater, and acids (HCl, H₂SO₄) better than 316L/904L.

•  High Pressure/Temp Rating: Suitable for ASME Class 2500 (420 bar) and 300°C (570°F) continuous service.

•  Cost Efficiency: 50% thinner sections vs. 316L reduce weight and installation costs.

•  Stress Corrosion Cracking (SCC) Immunity: Critical for chemical processing equipment.

6. Application Areas

Designed for critical services in:

• Oil & Gas: Subsea manifolds, christmas trees, pipeline risers

• Chemical: HCl acid reactors, sulfuric acid coolers

• Desalination: SWRO high-pressure tubing, brine heaters

• Pollution Control: FGD scrubber modules

• Marine: Propeller shafts, seawater valves
