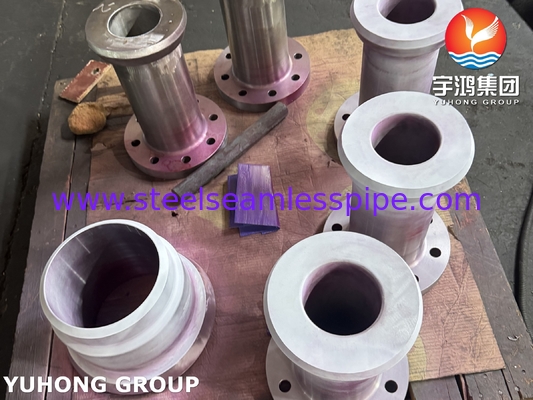

ASME SA182 Self Reinforced Nozzle for Heat Exchanger API663

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ASME Section VIII Div.1 and API 663
Model Number:	ASME SA182 CLASS2

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	PALLET, PLYWOOD CASE
Delivery Time:	7days
Payment Terms:	L/C, T/T, MoneyGram, Western Union, T/T, D/P, D/A
Supply Ability:	800 Tons/ month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

MATERIAL:

ASME SA182

NAME:

Self Reinforced Nozzle

SIZE:

SEE AS DRAWING

APPLICATION:

PRESSURE VESSELS PARTS, HEAT EXCHANGER PARTS

Highlight:

ASME SA182 reinforced nozzle

heat exchanger steel fitting

API663 self reinforced nozzle

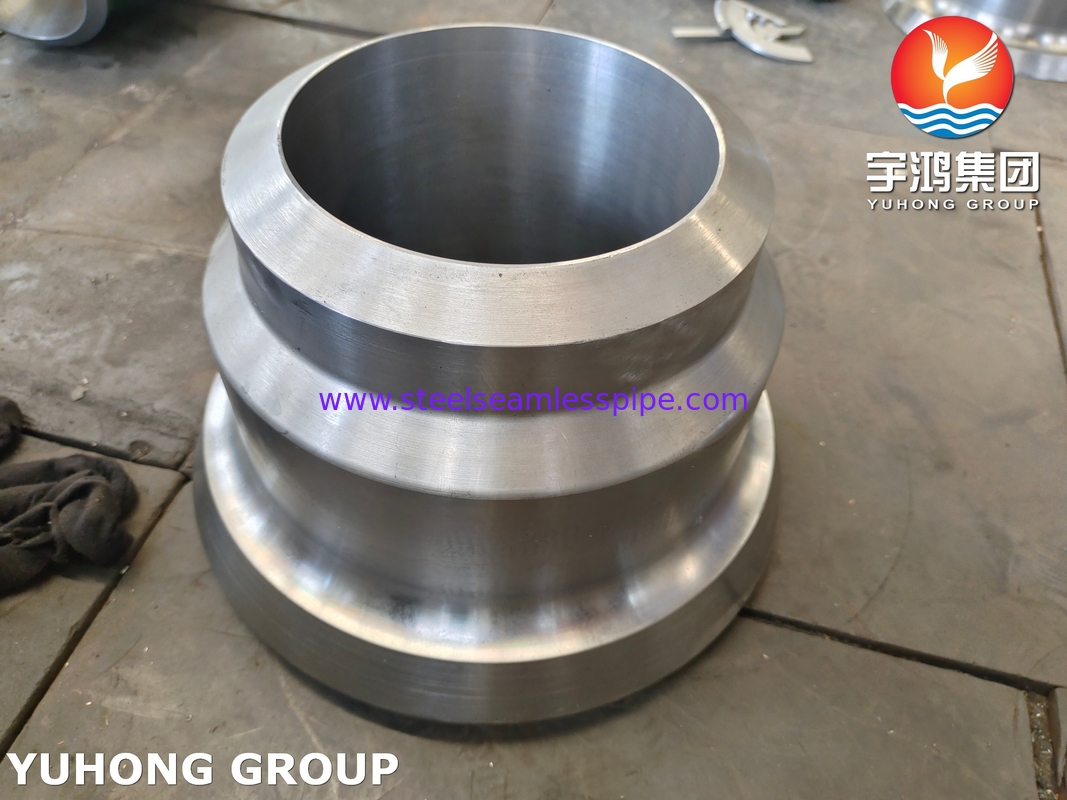

ASME SA182 CLASS2 Self Reinforced Nozzle With Lip For Heat Exchanger API663

ASME SA182 CLASS2 Self-Reinforced Nozzle with Lip is a critical component engineered for high-pressure thermal equipment, specifically designed to meet ASME Section VIII Div.1 and API 663 standards for heat exchanger construction.

Material Composition (Typical F316L/CLASS 2)

Element	Content (%)	Function
Chromium (Cr)	16.0–18.0	Corrosion resistance
Nickel (Ni)	10.0–14.0	Austenite stability
Molybdenum (Mo)	2.0–3.0	Pitting resistance
Carbon (C)	≤0.03	Weldability enhancement
Manganese (Mn)	≤2.0	Strength optimization

Mechanical Properties

Tensile Strength: ≥485 MPa
Yield Strength: ≥170 MPa
Elongation: ≥40%
Hardness: ≤217 HB (Brinell)

Integrated Design Capabilities

Customization: Lip profiles optimized for shell/tube-side connections (sizes: 2"–24" NB)
All designs include DWG/STEP files and ASME BPV Code compliance reports.

Applications in Heat Exchangers

Component	Function
Shell/Tube Connections	Primary pressure boundary for fluid in/outlet (self-reinforced lip resists hoop stress).
Channel-to-Tubesheet Joint	Leak-tight sealing under thermal cycling (lip integrates with gasket surfaces).
Vent/Drain Nozzles	Compact reinforcement for auxiliary piping per API 663 Sec. 5.4.
