ASTM A312 TP321 UNS 32100 Stainless Steel Seamless Pipe for Furnance

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A312 TP321

Payment & Shipping Terms:

Minimum Order Quantity:	500kgs
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	1000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Product Name:	Stainless Steel Seamless Pipe	Shape:	Round
Specification:	ASTM A312	Surface:	Pickeled Annealed
Type:	Seamless / Welded	Length:	Max 34M/PC
Highlight:	ASTM A312 TP321 stainless steel pipe , UNS 32100 seamless furnace pipe , stainless steel seamless pipe for furnace

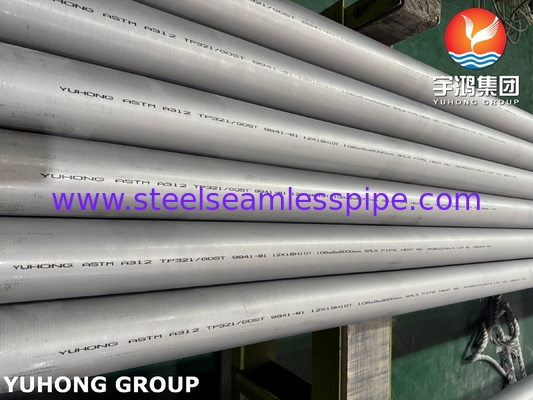

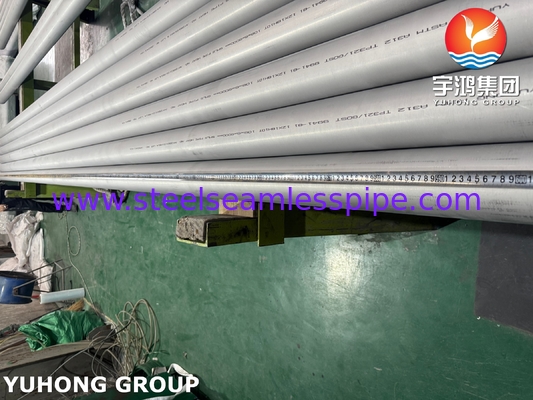

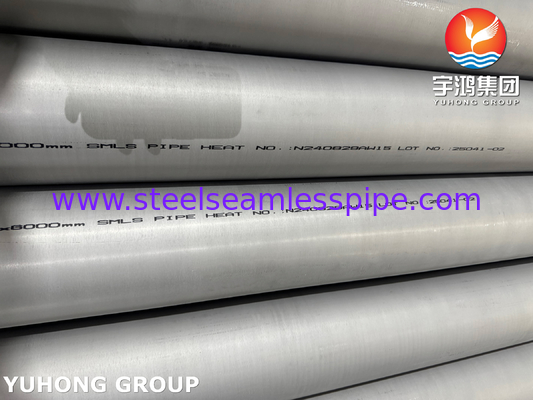

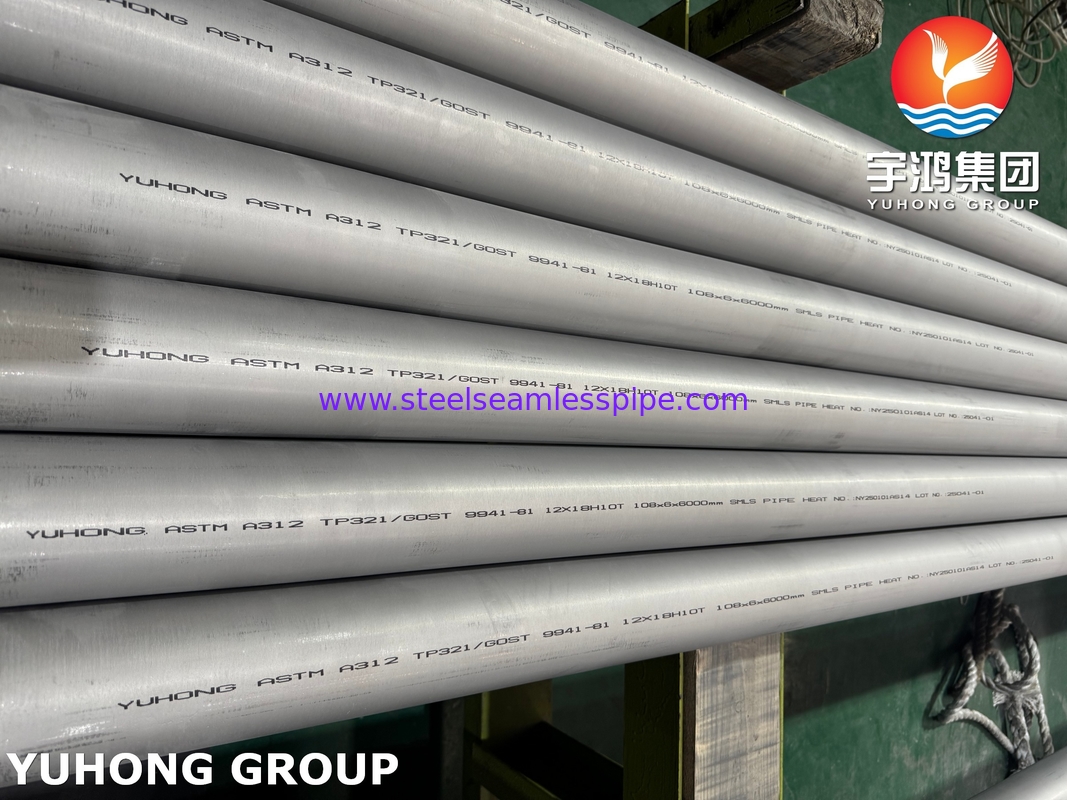

ASTM A312 TP321 UNS 32100 Stainless Steel Seamless Pipe

UNS Designation	C	Mn	P	S	Si	N	Cr	Mo
S32100	0.08	2	0.045	0.03	1	17.0–19.0	9.0–12.0	...

YUHONG GROUP is focused on the production of Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years. We have been exported to more than 85 countries.

Outside diameter and Tolerance

Hot rolled	Outside Diameter, mm	Tolerance
	30≤OD≤219.1	D2, ±1% or ±0.5mm
	219.1＜OD≤610	D1, ±1.5% or ±0.75mm
Cold Drawn	Outside Diameter, mm	Tolerance
	OD≤219.1	D3, ±0.75% or ±0.3mm
	OD≤219.1	D4, ±0.5% or ±0.1mm

ASTM A312 TP321 Seamless Pipe Mechanical Properties

Density	8.027 g/cm3
Melting Point	1454 °C (2650 °F)
Tensile Strength(min)	515 MPa (75 ksi)
Yield Strength (min)	205 MPa (30 ksi
Elongation(min)	35% (in 50 mm)

ASTM A312 TP321 Seamless Pipe Testing and Quality Assurance

TP321 pipes undergo rigorous testing to ensure compliance with ASTM A312 standards:

Non-Destructive Testing (NDT): Includes hydraulic testing, ultrasonic testing, or eddy current testing to detect internal and surface defects.
Mechanical Tests: Tensile, hardness, and flattening tests to verify mechanical properties.

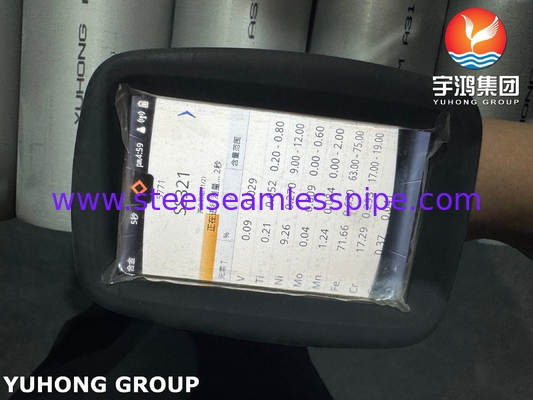

Chemical Analysis: PMI (Positive Material Identification) and spectrometry to confirm composition.
Corrosion Tests: Intergranular corrosion tests (e.g., ASTM A262) to ensure resistance to sensitization.

ASTM A312 TP321 Pipe Comparison with Other Grades

Grade	Key Differences from TP321	Typical Use Cases
TP304	Lower cost, no titanium stabilization; prone to sensitization	Low-temperature corrosive environments
TP316	Molybdenum addition for better pitting resistance	Marine and chloride-rich environments
TP321H	Higher carbon content (0.04–0.10%) for improved high-temperature strength	High-temperature pressure vessels and boilers
