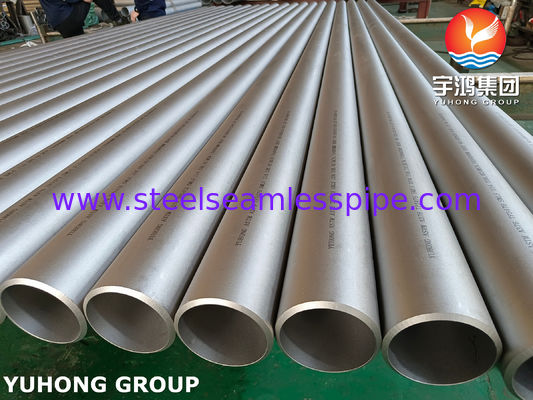

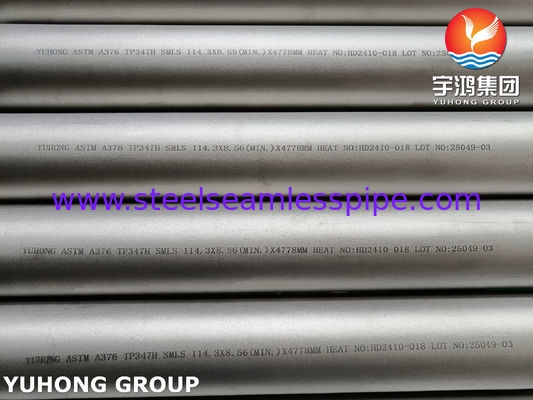

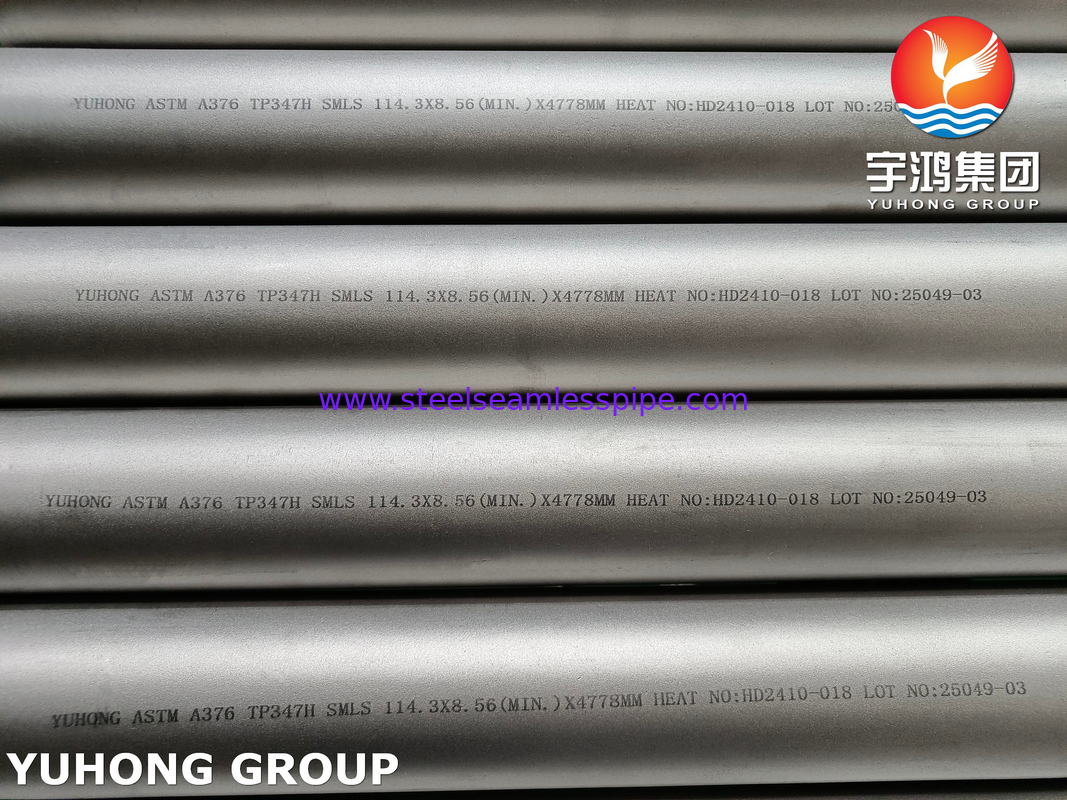

ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes

ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes

  • ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes
  • ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes
  • ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes
  • ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes
ASTM A376 TP347H Seamless Pipes Supplier High-Temperature Austenitic Steel Pipes
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A376 TP347H
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: L/C,T/T
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Material Grade: ASTM A376 TP347H / ASME SA376 TP347H Key Application: Superheater Tubes / Reformer Tubes / Boiler Systems
Processing Technology =: Cold-Drawn / Hot-Finished Seamless Equivalent Standards: UNS S34709, EN 1.4912, DIN X8CrNiNb16-13
NDT Testing: 100% UT (Ultrasonic) + Hydrostatic Test Certification Compliance: ASTM A376, ASME SA376, ISO 15510, NACE MR0175
Highlight:

ASTM A376 TP347H seamless pipes

,

high-temperature austenitic steel pipes

,

duplex stainless steel pipe supplier



1. TP347H Austenitic Stainless Steel Pipes Overview


ASTM A376 TP347H seamless pipes are high-temperature austenitic stainless steel tubes stabilized with niobium (Nb). Engineered for superior creep resistance and oxidation resistance up to 815°C (1,500°F), they withstand extreme thermal cycling and corrosive environments. Compliant with ASTM A376 standards, these pipes are solution-annealed for optimal microstructural stability, making them ideal for critical high-pressure applications.


2. TP347H Chemical Composition


The niobium-stabilized chemistry prevents chromium carbide precipitation, enhancing intergranular corrosion resistance.


Element Min (%) Max (%)
Carbon (C) 0.04 0.10
Chromium (Cr) 17.0 20.0
Nickel (Ni) 9.0 13.0
Niobium (Nb) 8×C min 1.10
Manganese (Mn) - 2.00
Silicon (Si) - 0.75
Phosphorus (P) - 0.045
Sulfur (S) - 0.030
Iron (Fe) Balance Balance


3. TP347H Equivalent Grades


Globally recognized cross-standard designations:


Standard Equivalent Grade
UNS S34709
EN 1.4912
DIN X8CrNiNb16-13
JIS SUS 347H TB
GB 0Cr18Ni11Nb


4. TP347H Mechanical Properties


Post-solution annealing properties per ASTM A376:


Property Value
Tensile Strength ≥515 MPa (75 ksi)
Yield Strength (0.2%) ≥205 MPa (30 ksi)
Elongation (%) ≥35% (50mm gauge length)
Hardness (Max) 192 HB / 90 HRB
Test Temperature Room Temperature (20°C)


5. TP347H Dimensional Tolerances


Manufactured to ASTM A376/A999 specifications:


Parameter Tolerance
Outer Diameter (OD) ±0.75% for OD ≤ 48.3mm; ±0.50% for OD > 48.3mm
Wall Thickness +20% / -12.5%
Length +6mm / -0mm (for lengths ≤6m)
Straightness 0.0015 × length (mm)


6. TP347H High-Temperature Applications


Designed for critical thermal and corrosive environments:


  • Power Generation: Superheaters, reheaters, and boiler tubes in coal-fired/thermal plants.


  • Petrochemical: Catalytic cracker units, furnace manifolds, and reformer tubes.


  • Aerospace: Exhaust systems and heat exchangers.


  • Nuclear: Steam generator tubing and pressurizer components.


  • Industrial Processing: High-temperature fluid transfer systems.



Why Choose Our TP347H Seamless Pipes?


  • Precision cold-drawn/hot-finished for uniform wall consistency.


  • 100% non-destructive testing (UT/ET) and hydrostatic certification.


  • Traceable mill test reports (MTRs) compliant with ASTM A376.


  • Custom sizes: OD 6mm–914mm, Wall Thickness 1.24–50mm.

Tag:

welded steel pipe,

duplex steel pipes,

super duplex seamless pipe
