ASME SB564 N04400 Nickel Alloy Forged Fitting Coupling BSC

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	SB564 N04400

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Delivery Time:	10-35 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	According to Client Requirements

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Name:	Nickel Alloy Coupling	Material:	N04400
Pressure:	1500# To 9000#	OD:	1/8'' To 4''
Standard:	SB564	Application:	Plumbing, HVAC, Industrial, And Commercial Use
Highlight:	ASME SB564 nickel alloy coupling , N04400 forged steel fitting , BSC nickel alloy coupling

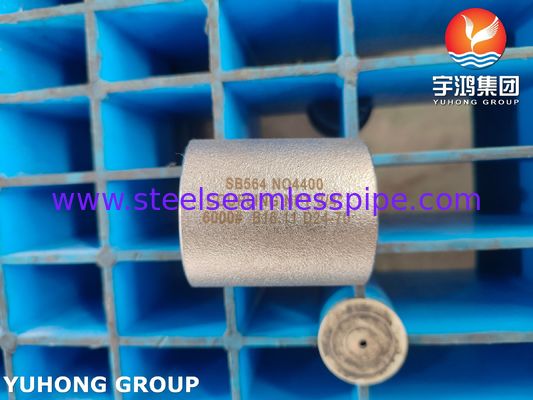

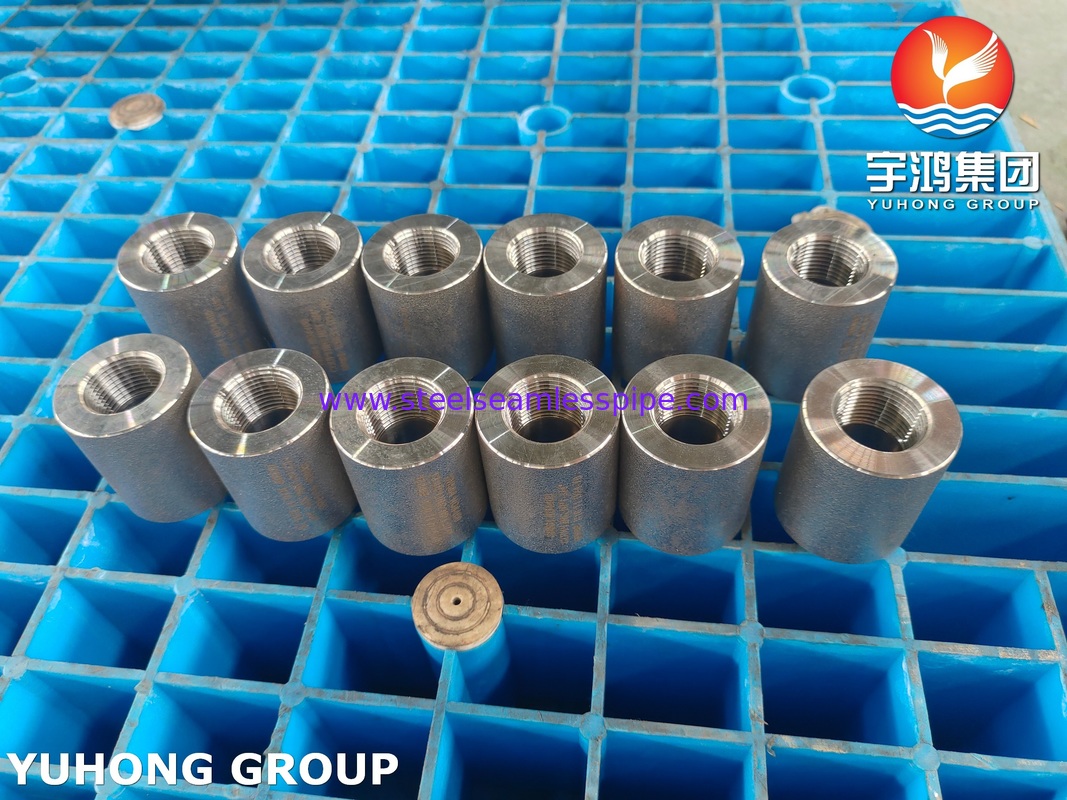

ASME SB564 N04400 Nickel Alloy Forged Fitting Coupling BSC

The SB564 N04400 Coupling is a pipe coupling forged from Monel 400 nickel-copper alloy. Manufactured according to ASTM SB564 standards, it offers exceptional mechanical strength and excellent corrosion resistance, particularly against harsh media such as seawater, sulfuric acid, and hydrofluoric acid.

This product is primarily used in demanding piping systems in industries such as offshore, chemical, petroleum, and pharmaceuticals, providing reliable pipe connections. It is ideal for non-magnetic and highly corrosive environments.

Nickel-Copper Alloy UNS N04400
Alloy Name	Nickel	Copper	Iron	Manganese	Carbon	Silicon	Sulfur, max
Monel 400	63.0 min	28.0-34.0	2.5 max	2.0 max.	0.3 max.	0.5 max.	0.024

Material and Condition	Maximum Section Thickness, in. (mm)	Tensile Strength, min, ksi [MPa]	Yield Strength, min, ksi [MPa]	Elongation in 2 in. [50 mm] or 4D,min, %
Nickel-Iron-Copper Alloy UNS N04400, Annealed	-	70 [483]	25 [172]	35
