ASTM B462 Nickel Alloy UNS N10276 Blind Flange Hastelloy C276 BLRF Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B462 UNS N10276 Hastelloy Blind Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOOD CASE / PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Product Name:	Hastelloy Flange	Dimension:	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges Etc.
Material:	UNS N10276 / 2.4819 / Hastelloy C276	Size:	1/8" To 48"
Pressure:	Class150/300/600/9001500/2500	Flange Face:	Flate Face (FF), Raised Face (RF)
Application:	Petroleum, Chemical, Onshore Adn Offshore, Shipbuilding, Etc
Highlight:	ASTM B462 Nickel Alloy Blind Flange , Hastelloy C276 BLRF Flange , UNS N10276 Steel Flange

Hastelloy C276 Flange , ASTM B462 UNS N10276 / 2.4819 Nickel Alloy Blind Flange

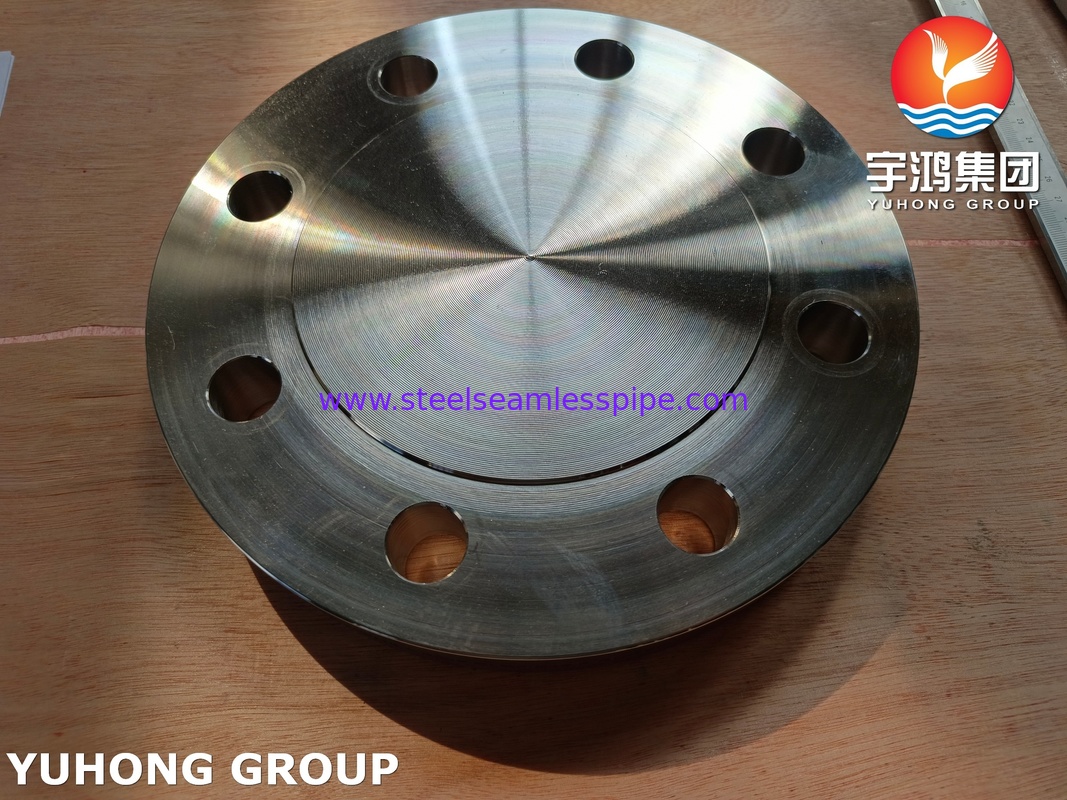

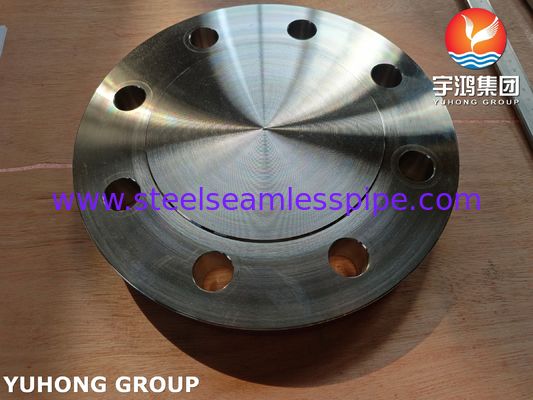

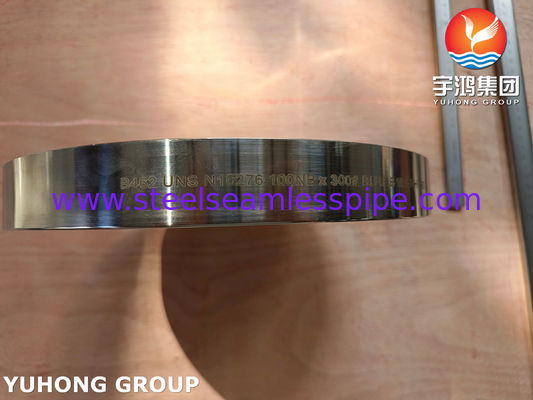

ASTM B462 C276 Hastelloy Blind Flange is a solid disk used to blank off the end of a piping system, a pressure vessel opening, or a valve. It is manufactured from a nickel-chromium-molybdenum alloy known for exceptional corrosion resistance in a wide range of severe environments.

Advantages of Using C276 Blind Flanges

Long Service Life: Drastically reduces maintenance and replacement frequency in aggressive environments.
Reliability and Safety: Provides a robust and leak-proof seal for isolating high-pressure, hazardous systems.
Versatility: A single, well-chosen material (C-276) can often handle multiple process streams, simplifying inventory.
High-Temperature Capability: Maintains strength and corrosion resistance at elevated temperatures.

Equivalent Grades of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Blind Flange

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Chemical Composition of of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Blind Flange

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

Mechanical properties (Minimum value at 20℃) of Hastelloy C276 Flange Nickel Alloy UNS N10276 Blind Flange

Tensile Strengthσb/MPa	Yield Strengthσp0.2/MPa	Elongationσ5 /%
690	283	40

When you request or purchase this component, ensure your purchase order or data sheet includes the following:

Material Specification: ASTM B462, Grade C276 / UNS N10276.
Product Standard: ASME B16.5 or ASME B16.47.
Size: Nominal Pipe Size (NPS) - e.g., 8", 12", 24".
Pressure Class: e.g., Class 150, Class 300, etc.
Facing: e.g., Raised Face (RF), Ring-Type Joint (RTJ).
Special Requirements:
- Heat Number: Required for critical services to verify material properties.
- Certification: Material Test Reports (MTRs) or Certificates of Conformance.
- Non-Destructive Testing (NDT): Dye Penetrant (PT) or Ultrasonic Testing (UT) may be specified.
- Positive Material Identification (PMI): Verification of alloy composition.

Application

Chemical Processing Industry (CPI): Reactors, vessels, and piping handling harsh acids (sulfuric, hydrochloric) and chlorine.
Pollution Control / Flue Gas Desulfurization (FGD): Scrubbers, ductwork, and dampers handling hot, wet, chlorinated gases.
Pulp and Paper Industry: Digesters, bleach plants (handling chlorine dioxide).
Pharmaceutical Industry: Critical process equipment requiring high purity and corrosion resistance.
Waste Incineration & Wastewater Treatment: Handling aggressive chemical by-products.
Marine and Offshore: For components exposed to seawater and sour gas (H₂S).
