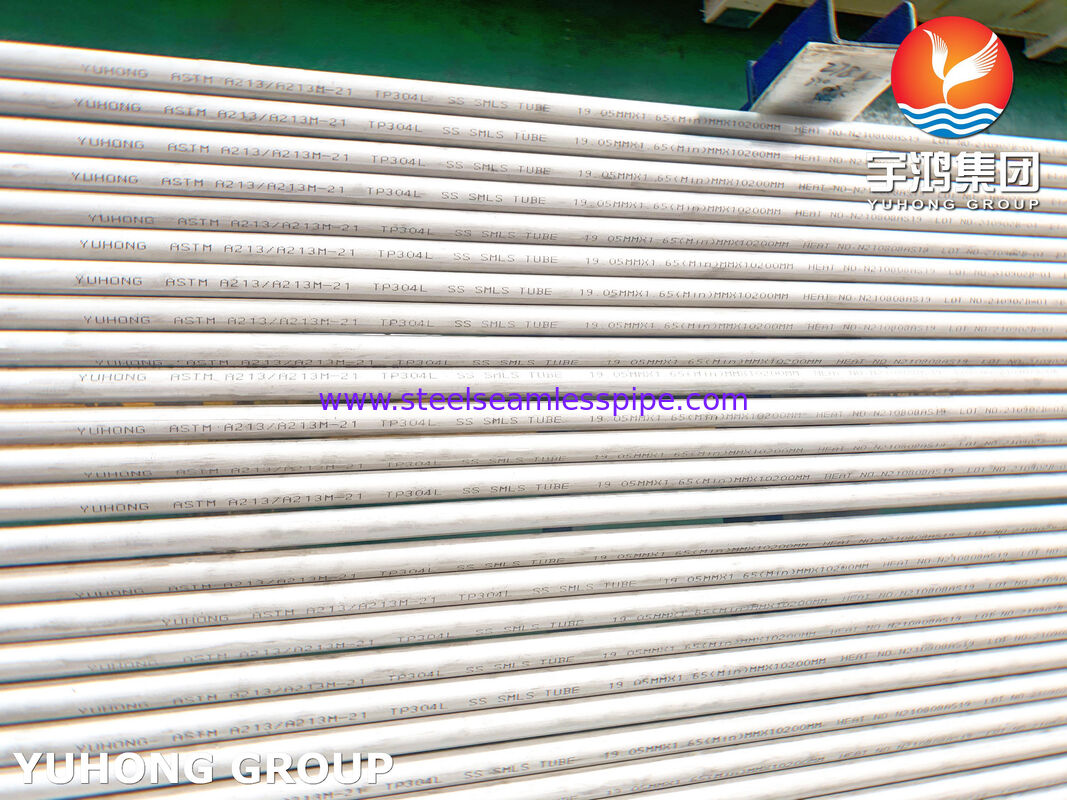

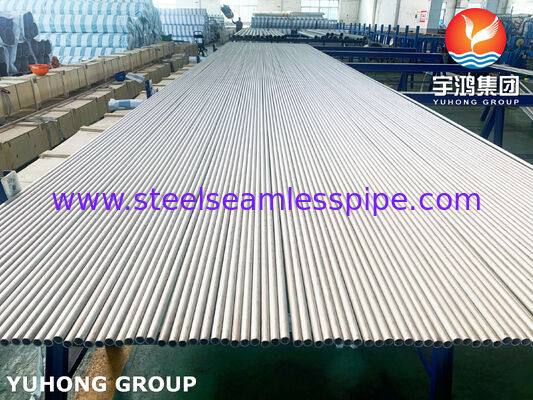

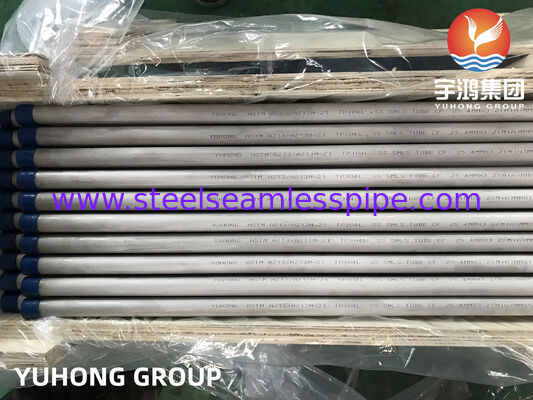

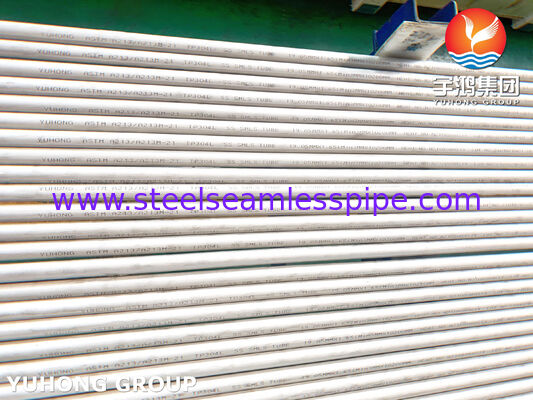

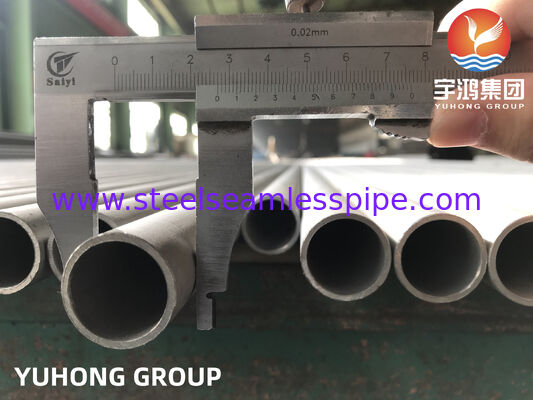

ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube

ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube

  • ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube
  • ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube
  • ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube
  • ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube
ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A213 TP304L, GOST 9941-81 03Х18Н11
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: T/T,L/C
Supply Ability: 1000 Tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Highlight:

ASTM A213 TP304L Heat Exchanger Tube

,

Low Carbon Seamless Tube

,

Corrosion Resistant Stainless Steel Tube

ASTM A213 TP304L (03Х18Н11) Stainless Steel Seamless Heat-Exchanger Tube
ASTM A213 TP304L Seamless Heat-Exchanger Tube is a premium-grade austenitic stainless steel tube engineered for demanding thermal and corrosive environments. The TP304L designation indicates a low-carbon version of classic 304 stainless steel, providing superior resistance to intergranular corrosion, particularly after welding.
The 03Х18Н11 represents the corresponding GOST standard designation, making this product suitable for international projects requiring specific regional standards. This seamless tubing delivers exceptional performance in high-temperature and high-pressure applications, ensuring reliability in critical systems across power generation, chemical processing, and petrochemical industries.
Standard & Specification
Manufactured in strict compliance with the latest ASTM A213/A 213M standard - "Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes".
  • Scope: Seamless tubes designed for service in boilers, superheaters, and heat-exchangers
  • Size Range: Available from 1/8 inch (3.2 mm) inside diameter to 5 inch (127 mm) outside diameter, with wall thicknesses from 0.015 to 0.500 inches (0.4 to 12.7 mm)
  • Key Feature: The "L" grade (low carbon) minimizes carbide precipitation during welding, ensuring long-term integrity in welded assemblies
Chemical Composition
The chemical composition of TP304L is carefully controlled to ensure optimal corrosion resistance and weldability, with maximized carbon content to prevent chromium carbide formation.
Element Standard Requirement
Carbon (C) ≤ 0.035%
Chromium (Cr) 18.00 - 20.00%
Nickel (Ni) 8.00 - 12.00%
Manganese (Mn) ≤ 2.00%
Silicon (Si) ≤ 1.00%
Phosphorus (P) ≤ 0.045%
Sulfur (S) ≤ 0.030%
Mechanical Properties
TP304L offers an excellent balance of strength and ductility, suitable for both forming operations and high-pressure service.
Property Standard Requirement
Tensile Strength ≥ 485 MPa (≥ 70 ksi)
Yield Strength (0.2% Offset) ≥ 170 MPa (≥ 25 ksi)
Elongation in 2 inches ≥ 35%
Product Applications
This seamless tube is engineered for critical heat transfer applications across various industries:
  • Power Generation: Boiler tubes, superheater tubes, and re-heater tubes in fossil fuel and nuclear power plants
  • Petrochemical & Chemical Processing: Heat exchangers, condensers, and process piping handling corrosive fluids
  • Oil & Gas: Refinery heat exchange systems and surface condensers
  • Other Industries: Pharmaceutical equipment, food processing, and shipbuilding where high corrosion resistance is required
ASTM A213 TP304L 03Х18Н11 Low Carbon Corrosion Resistant Stainless Steel Seamless Heat Exchanger Tube 0
