Name: ASTM A269 TP304（UNS S30400） Stainless Steel Seamless / Welded Tube for Corrosion Resistance and High Low Temperature Industrial
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A269 TP304
Price: 150000 USD
Availability: InStock

Yuhong Holding Group Co.,LTD

English

ASTM A269 TP304（UNS S30400） Stainless Steel Seamless / Welded Tube for Corrosion Resistance and High Low Temperature Industrial

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP304

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	Depends on quantity
Payment Terms:	T/T,L/C
Supply Ability:	1000 tons/month

Contact Now

Standard:

ASTM A269 / UNS S30400

Material:

TP304 Stainless Steel

Type:

Seamless / Welded

Surface:

Bright Annealed

OD:

6mm - 219mm

WT:

0.8mm - 3.0mm

Length:

6m Or Cut-to-Length

Ends:

Plain End

Highlight:

TP304 Stainless Steel Tube

A269 TP304 Stainless Steel Tube

ASTM A269 Stainless Steel Tube

Carbon (C)

Chromium (Cr)

Nickel (Ni)

Manganese (Mn)

Silicon (Si)

Phosphorus (P)

Sulfur (S)

≤0.08%

18.00%-20.00%

8.00%-11.00%

≤2.00%

≤0.75%

≤0.045%

≤0.030%

Outside Diameter (OD)

Wall Thickness (WT)

Standard Length

OD Precision

WT Tolerance

Applicable Type

Cutting End Face

Customization Range

1/4 in (6.4mm) - 5 in (127mm) (Standard, per ASTM A269), Customizable up to 24.8 in (630mm)

0.020 in (0.51mm) - 0.5 in (12.7mm) (Standard, per ASTM A269), Customizable up to 0.79 in (20mm)

1m-12m (Custom Length on Demand)

±0.05mm

±0.1mm

Seamless/Welded Tube

Smooth, Burr-Free, Uniform Bevel

Full-Size Customization on Demand

Mandatory Chemical Test

Mandatory Mechanical Test

Mandatory Pressure Test

Mandatory Appearance Test

Optional Corrosion Test

Optional Non-Destructive Test

Testing Equipment

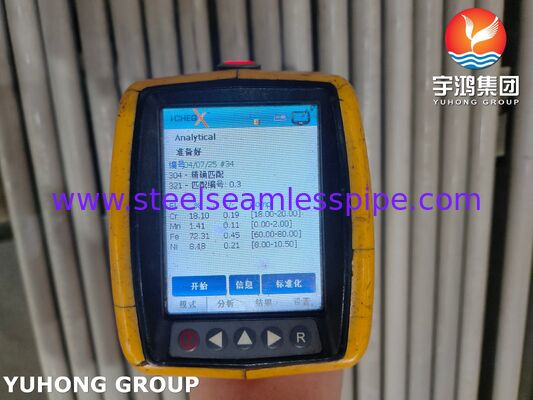

Direct Reading Spectrometer Test

Tensile Strength (≥515MPa), Yield Strength (≥205MPa), Elongation (≥40%), Flaring/Flange Test (per ASTM A269)

Hydrostatic/Pneumatic Test, Non-Destructive Electrical Test

Full-Size Precision, Surface Defect Inspection

Salt Spray Test, Intergranular Corrosion Test (Optional, Negotiable per ASTM A269 Supplementary Requirements)

Ultrasonic Testing (UT), Radiographic Testing (RT)

Spectrometer, Hardness Tester, Flaw Detector

Product Advantages

Application Scenarios (Typical A269 Service Conditions)

Strictly compliant with ASTM A269/A269M American Standard, excellent corrosion resistance, good processability, eco-friendly & hygienic, high cost-performance for global industrial applications

Chemical Industry, Food & Pharmaceutical, High/Low Temperature Tubing, Industrial Transportation, Municipal
