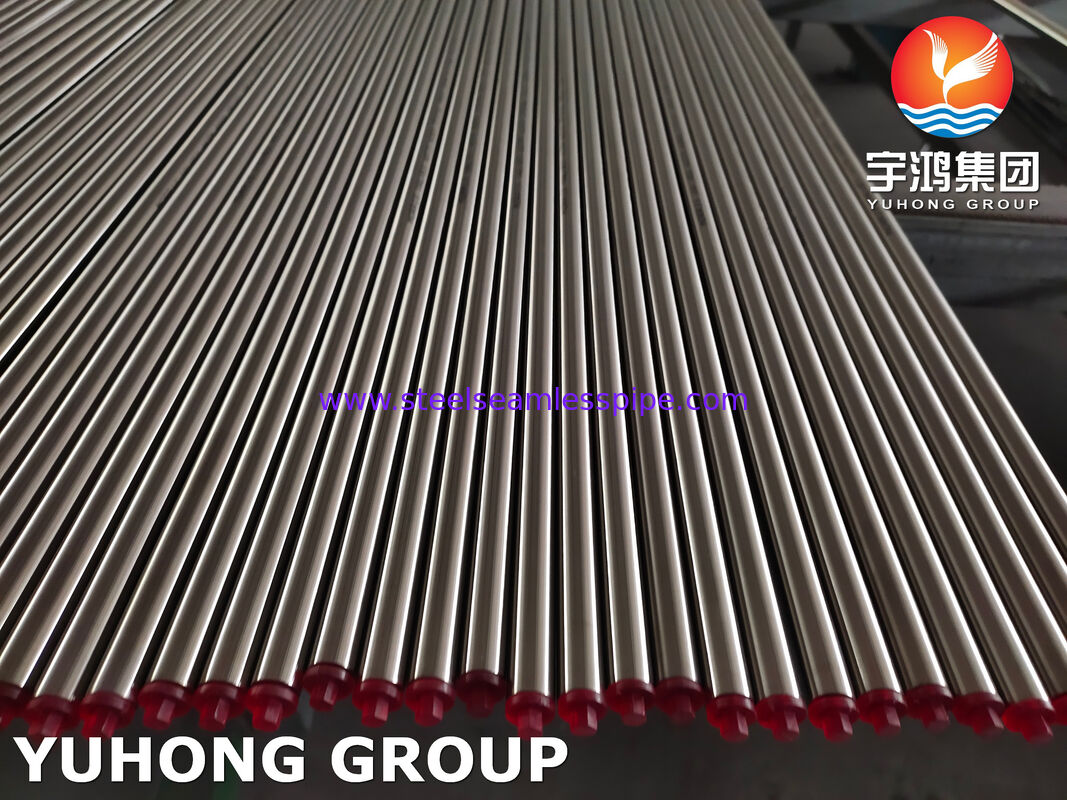

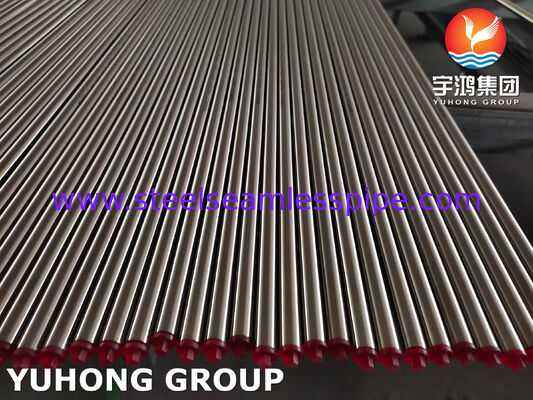

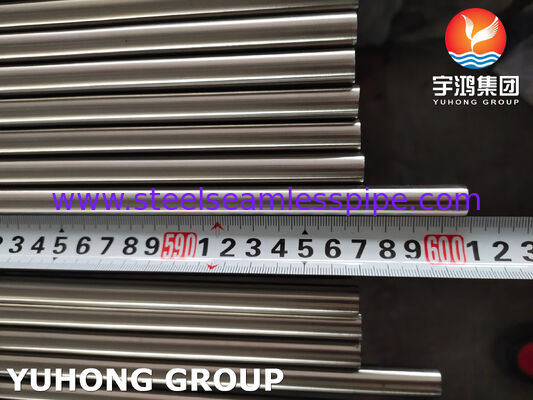

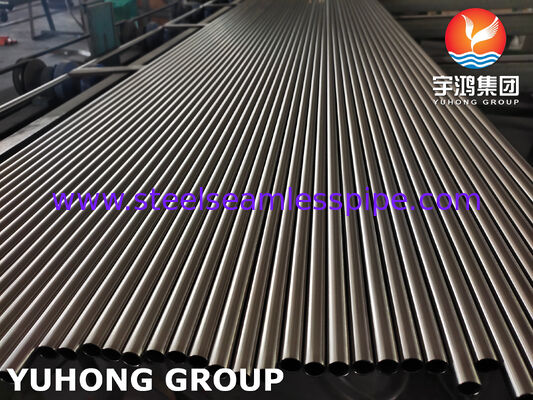

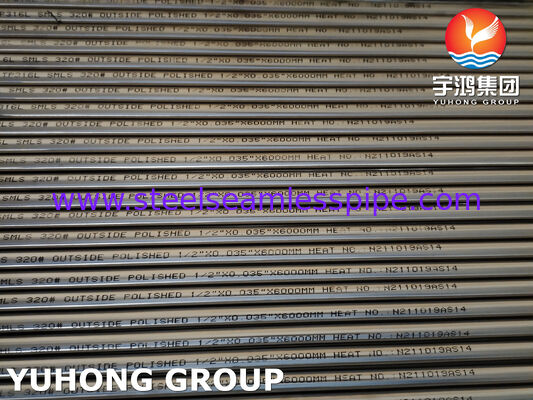

ASTM A269 TP316L Stainless Steel Seamless Tubing For Industrial Use

Superior Performance Characteristics

1. Exceptional Corrosion Resistance: Molybdenum-added formulation outperforms 304/304L; highly resistant to pitting, crevice corrosion and general corrosion in acidic, alkaline, saltwater and chloride-rich environments.
2. Low-Carbon Intergranular Corrosion Resistance: ≤0.03% carbon content eliminates sensitization during welding/annealing, no post-weld heat treatment required for most applications.
3. Excellent Mechanical Properties: High tensile strength (≥485 MPa), yield strength (≥170 MPa) and elongation (≥40%); maintains toughness and ductility at both low and moderate temperatures.
4. Smooth Surface & High Precision: ASTM A269 standard seamless production, annealed & pickled (A/P) or bright annealed (BA) surface; uniform wall thickness, tight dimensional tolerance, no weld defects.
5. Good Weldability & Formability: Easy to weld via TIG/MIG/MMA processes; excellent cold/hot formability for bending, flanging, and fabrication without cracking.
6. High Temperature Stability: Maintains structural integrity and performance in continuous high-temperature working environments (up to 870°C for intermittent use, 790°C for continuous use).
7. Sanitary & Non-Toxic: Food-grade surface finish optional, no heavy metal leaching, meets sanitary standards for food, beverage and pharmaceutical processing.

Additional Product Advantages

• • 100% seamless production process, no weld seam structural weakness, higher pressure-bearing capacity and service life.
  • Customizable specifications: Outer Diameter 6mm - 219mm, Wall Thickness 0.8mm - 20mm; free cut-to-length service available according to customer requirements.
  • Multiple surface finish options: Annealed & Pickled (A/P), Bright Annealed (BA), 2B/No.4/8K polished surface, matching different application scenarios.
  • Full-process quality inspection: PMI Positive Material Identification, hydrostatic pressure test, ultrasonic flaw detection, dimensional precision inspection, surface quality inspection.
